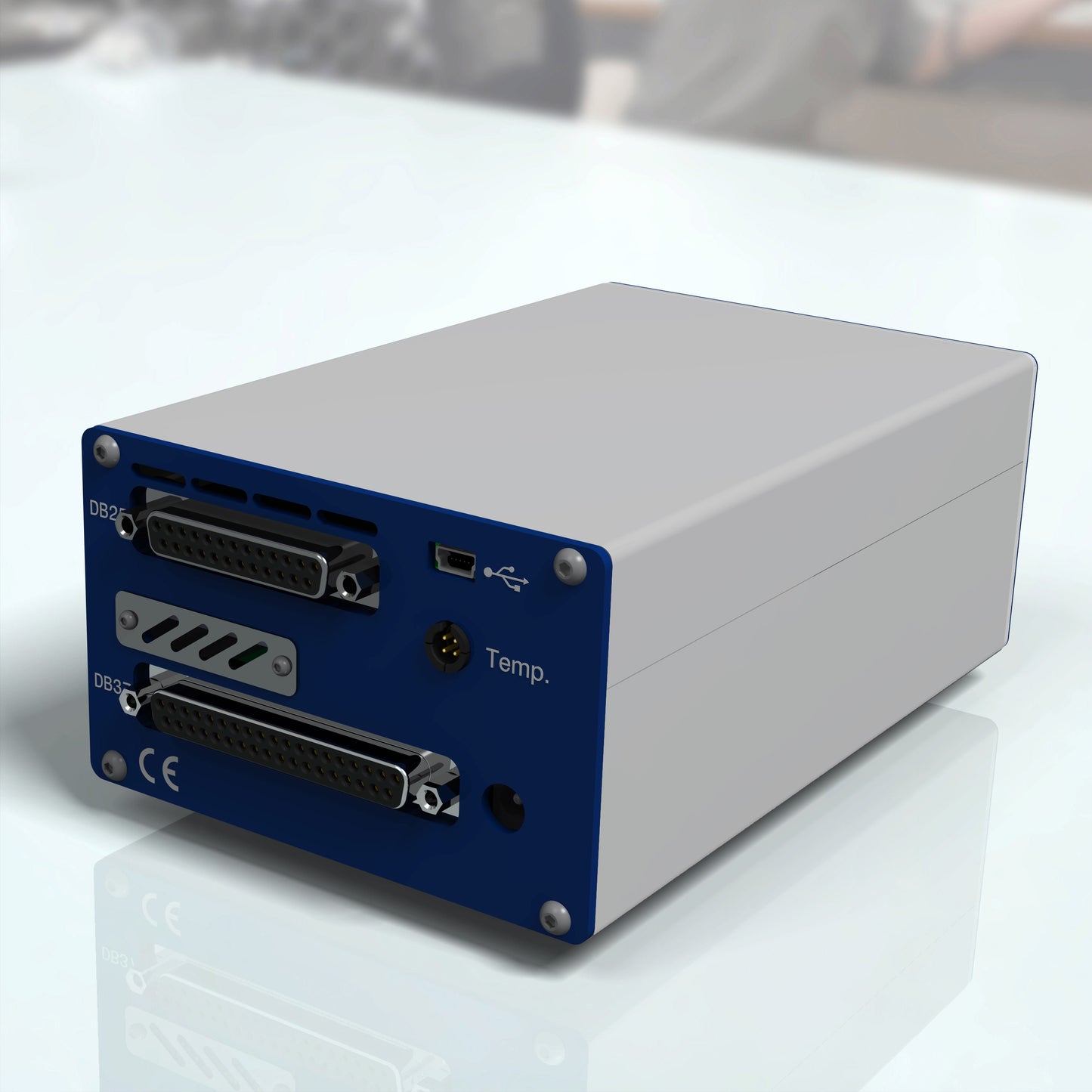

Control Unit V1.0 for Vacuum Systems

The built in user programmable microcontroller provides the required flexibility for easy and simple control of vacuum system components, such as roughing valves, gate valves or gas purge valves.

Vacuum levels as well as temperatures can be monitored using the AD input channels.

24V power outputs allow for direct connetion of solenoid valves.

Programmable control buttons on the front panel allow standalone use without computer connection. Connectivity is however given via USB.

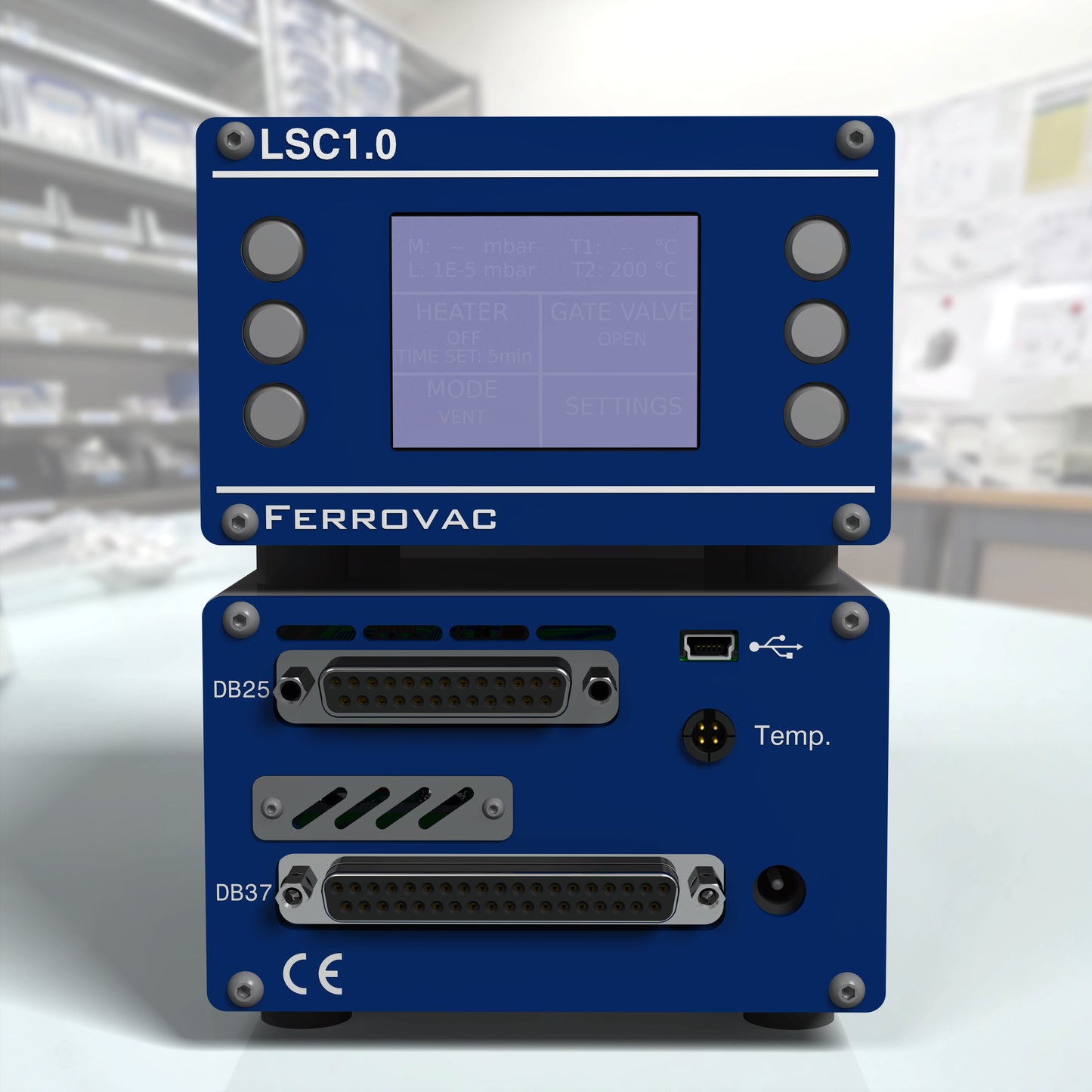

• Large LCD display
• 6 programmable control buttons on front panel
• Programmable accoustic alarm function
• 4 programmable power output channels (24V 0.25A max)
• 6 open collector output channels (40V 30mA max)
• 3 programmable MOS-Contacts (40V 0.2A max)
• 7 Analog input (0-10V) and 2 Analog Output (0-10V) channels
