Collection: UHV Sample Holders & Receivers
Reliable sample mounting and handling are essential for reproducible results in ultra-high vacuum (UHV), cryogenic, and high-temperature applications. Precision sample holders and receivers provide secure positioning, mechanical stability, and compatibility with vacuum manipulation and transfer systems.
Explore our range of Flag Style Sample Holder Plates, Drawer Style Receivers, electrical-contact sample holders, precision leaf springs, mounting screws, and accessories. A wide selection of materials, including stainless steel, OFHC copper, molybdenum, tantalum, tungsten, titanium, and technical ceramics, allows adaptation to different thermal, electrical, and experimental requirements.
Our modular sample handling solutions support surface science, scanning probe microscopy (SPM), thin-film research, sample heating, cryogenic experiments, and advanced analytical techniques.
-

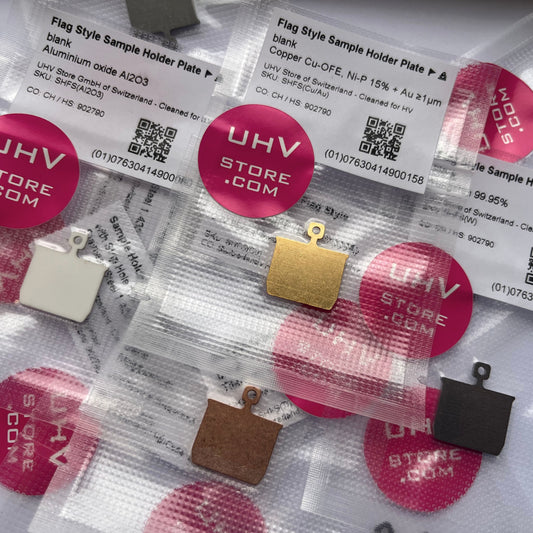

Flag Style Sample Holder Plates for UHV, Cryogenic & High-Temperature Applications
Vendor:UHV Store of Switzerland - Ultra High Vacuum Technology5.0 / 5.0
(4) 4 total reviews
Regular price From CHF 30.41Regular priceCHF 158.36Sale price From CHF 30.41Sale -
Precision Leaf Springs for Sample Mounting – UHV & High-Temperature Compatible Materials
Vendor:UHV Store of Switzerland - Ultra High Vacuum TechnologyRegular price From CHF 96.00Regular priceSale price From CHF 96.00 -

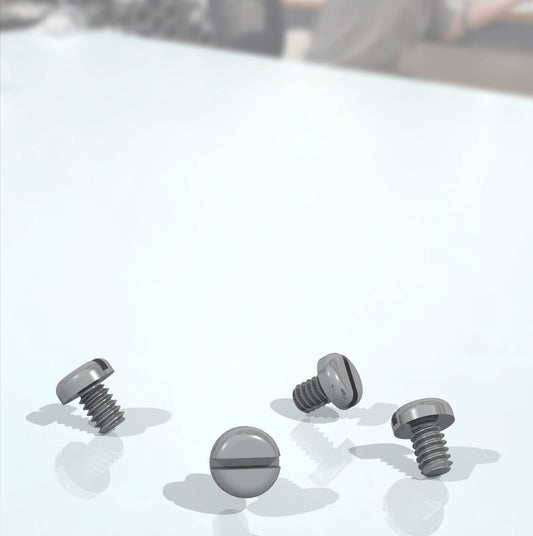

Precision Screws for UHV Sample Holders & High-Temperature Applications
Vendor:UHV Store of Switzerland - Ultra High Vacuum TechnologyRegular price From CHF 30.00Regular priceSale price From CHF 30.00 -
Flag Style Sample Holder Plate Material Set – 2 pcs per Material
Vendor:UHV Store of Switzerland - Ultra High Vacuum TechnologyRegular price CHF 1,478.34Regular priceCHF 2,956.68Sale price CHF 1,478.34Sale -
Drawer Style Receivers for Flag Style Sample Holder Plates
Vendor:Ferrovac AG4.0 / 5.0
(2) 2 total reviews
Regular price From CHF 470.00Regular priceSale price From CHF 470.00 -
EC13 Flag Style Sample Holder Plate with 13 Electrical Contacts
Vendor:Ferrovac AGRegular price From CHF 1,500.00Regular priceSale price From CHF 1,500.00 -
EC13 Drawer Style Receiver for Flag Style Sample Holder Plates with 13 Electrical Contacts
Vendor:Ferrovac AGRegular price From CHF 4,250.00Regular priceSale price From CHF 4,250.00 -
Miniature Coaxial Cable, PFA (Teflon®), Ø 0.8 mm – UHV-Ready.
Vendor:UHV Store of Switzerland - Ultra High Vacuum TechnologyRegular price From CHF 495.00Regular priceSale price From CHF 495.00 -
PB Swiss Tools Screwdriver
Vendor:UHV Store of Switzerland - Ultra High Vacuum TechnologyRegular price CHF 18.65Regular priceSale price CHF 18.65
Sample Mounting & Handling in Ultra-High Vacuum
Precision sample holders and receivers are essential for reliable sample preparation, positioning, and transfer in ultra-high vacuum (UHV) systems. They provide mechanical stability and ensure compatibility between sample manipulators, heating and cooling stages, and analytical instruments.
The selection of suitable materials and mounting mechanisms is particularly important for applications involving high temperatures, cryogenic conditions, electrical measurements, or surface-sensitive experiments.
Flag Style Sample Holder Plates
Flag Style Sample Holder Plates provide a versatile platform for mounting specimens in UHV applications. Their standardised geometry allows samples to be transferred between compatible receivers, preparation stations, and analytical instruments without removing them from their holders.
Available configurations include blank plates, threaded mounting patterns, and customised geometries for different specimen requirements.
Materials & Properties
Sample holder materials are selected according to their thermal, electrical, mechanical, and chemical properties.
Stainless Steel (304 / 316L) provides good mechanical strength and corrosion resistance for general vacuum applications.
OFHC Copper offers excellent thermal conductivity, making it particularly suitable for cryogenic experiments and efficient heat transfer.
Molybdenum (Mo), Tantalum (Ta), and Tungsten (W) are refractory metals suitable for demanding high-temperature applications.
Titanium Grade 2 offers low density, good corrosion resistance, and low magnetic susceptibility.
Nickel-Based Alloys, including Alloy 601, provide enhanced resistance to oxidation at elevated temperatures.
Technical Ceramics, such as Al₂O₃ and Shapal, provide electrical insulation and application-specific thermal properties.
The appropriate material depends on operating temperature, vacuum conditions, specimen compatibility, and experimental requirements.
Precision Leaf Springs & Mounting Screws
Precision Leaf Springs provide secure mechanical retention of specimens on compatible sample holder plates.
Available in stainless steel, molybdenum, and tantalum, these springs accommodate different mounting geometries and temperature requirements.
Precision Screws provide suitable fastening solutions for UHV and high-temperature applications.
The combination of springs and screws allows specimens to be securely mounted while accommodating differences in thermal expansion and mechanical properties.
Drawer Style Receivers
Drawer Style Receivers provide a repeatable mechanical interface between Flag Style Sample Holder Plates and compatible vacuum equipment.
Their design enables secure positioning and convenient sample exchange between preparation, heating, cooling, and analytical stations.
Correct alignment between holders and receivers is essential for reliable sample transfer and reproducible experimental conditions.
EC13 Sample Holders with Electrical Contacts
The EC13 Flag Style Sample Holder provides 13 electrical contacts for experiments requiring electrical access to the specimen.
Combined with the compatible EC13 Drawer Style Receiver, it enables electrical connections to be established when the holder is inserted into the receiving interface.
Typical applications include electrical measurements, sample biasing, and experiments requiring multiple electrical connections under UHV conditions.
For suitable signal connections, Miniature Coaxial Cables are also available.
Compatibility with UHV Manipulators
Flag Style Sample Holder Plates are designed for use with compatible sample handling and manipulation systems.
UHV Wobble Sticks and Sample Transporters enable controlled positioning and transfer between vacuum chambers and experimental stations.
Sample Grabbers provide mechanical handling for compatible single-shaft manipulators, while Pincer Grips allow controlled gripping and release using suitable dual-shaft systems.
Together, these components form a modular sample handling system for surface science and advanced vacuum research.
Applications in Surface Science & Materials Research
UHV sample holders and receivers are widely used in scanning probe microscopy (SPM), photoelectron spectroscopy (XPS/UPS), molecular beam epitaxy (MBE), thin-film research, and other surface-sensitive analytical techniques.
Depending on the configuration, they support sample heating, cryogenic cooling, electrical measurements, mechanical manipulation, and transfer between vacuum systems.
The choice of sample holder should consider specimen dimensions, operating temperature, material compatibility, electrical requirements, and the mechanical interface of the receiving equipment.
