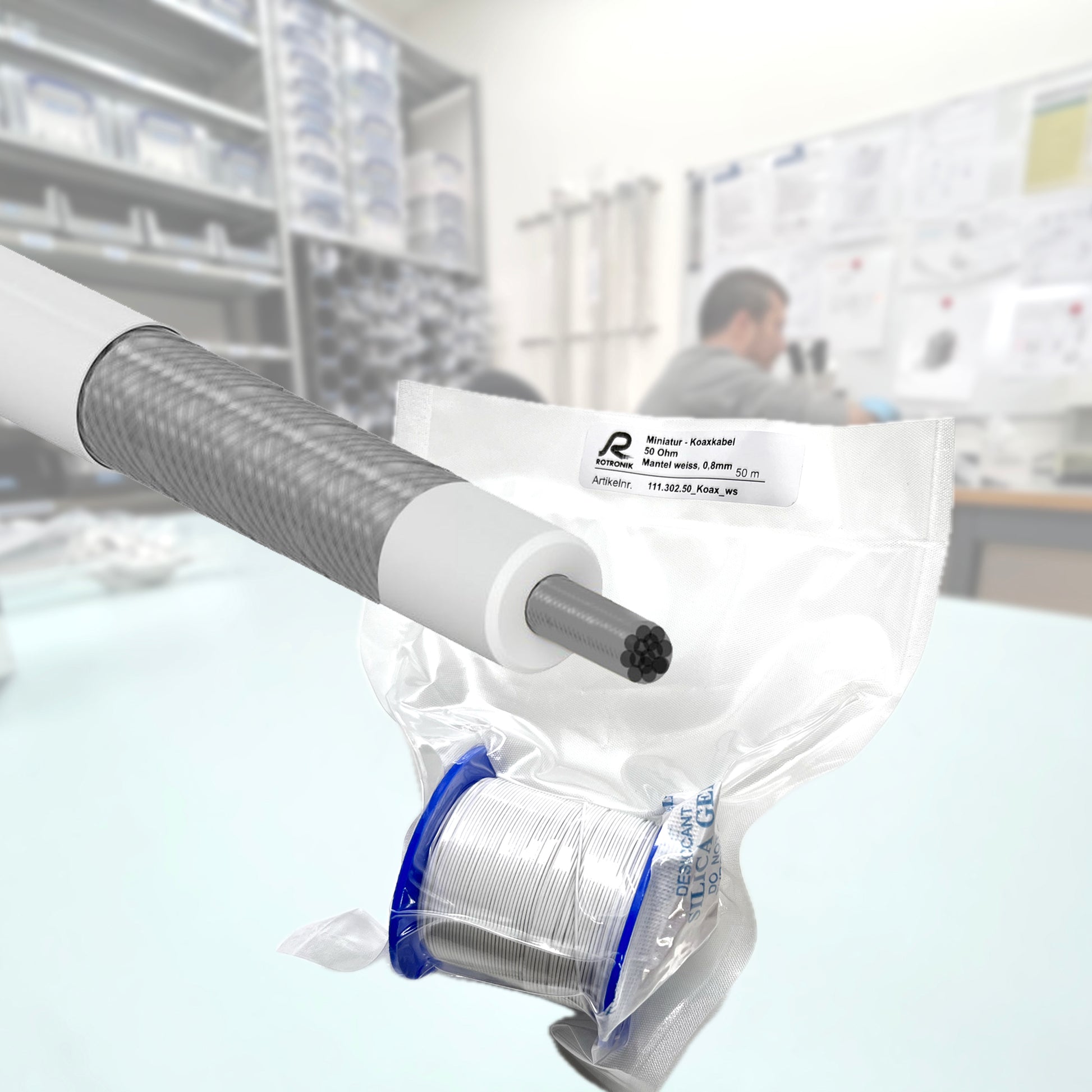

Miniature Coaxial Cable PFA (Teflon®) Ø 0.8 mm optimized for use in ultra-high vacuum environment

Miniature Coaxial Cable PFA (Teflon®) Ø 0.8 mm optimized for use in ultra-high vacuum environment

Regular price CHF 500.00
Regular price Sale price CHF 500.00
Sale Sold out
Shipping calculated at checkout.
Length of cable
SKU: 111.302.50_Koax_ws 20 meters
0 piece(s) in our central warehouse. 🚀
Available on back order or custom made.
Please contact UHV Store LLC to clarify delivery time.

Miniature Coaxial Cable PFA (Teflon®) Ø 0.8 mm optimized for use in ultra-high vacuum environment (Serie 111)

Interim cut from production (excluding the beginning and end of cable production)
Surface cleaned before winding
Optical inspection
Continuously tested in UHV environment

Product code:
111.302.50_Koax_ws

Conductor:
Copper stranded wire, silver coated, twisted, 0,014 mm² (7 x 0,050 mm), Ø 0.15 mm

Dielectricum:
PFA (Teflon®), Ø 0.39 mm

Shield:
Copper braid, silver coated, Ø 0.62 mm

Cable jacket:
PFA (Teflon®), white sheath, Ø 0.8 mm +/-0.04 mm

Temperatur range: -200°C bis +200°C, short-time +250°C
Operating voltage: 150 V
Weight: 1.6 g / meter
ROHS compliant
Impedance 200 MHz: 50 Ohm
Capacity 1 KHz: 98 pF/m
Attenuation [dB/m]: 1 MHz 0.11 | 10 MHz 0.27 | 100 MHz 0.97 | 500 MHz 2.20
