Flag Style Direct Current Heating

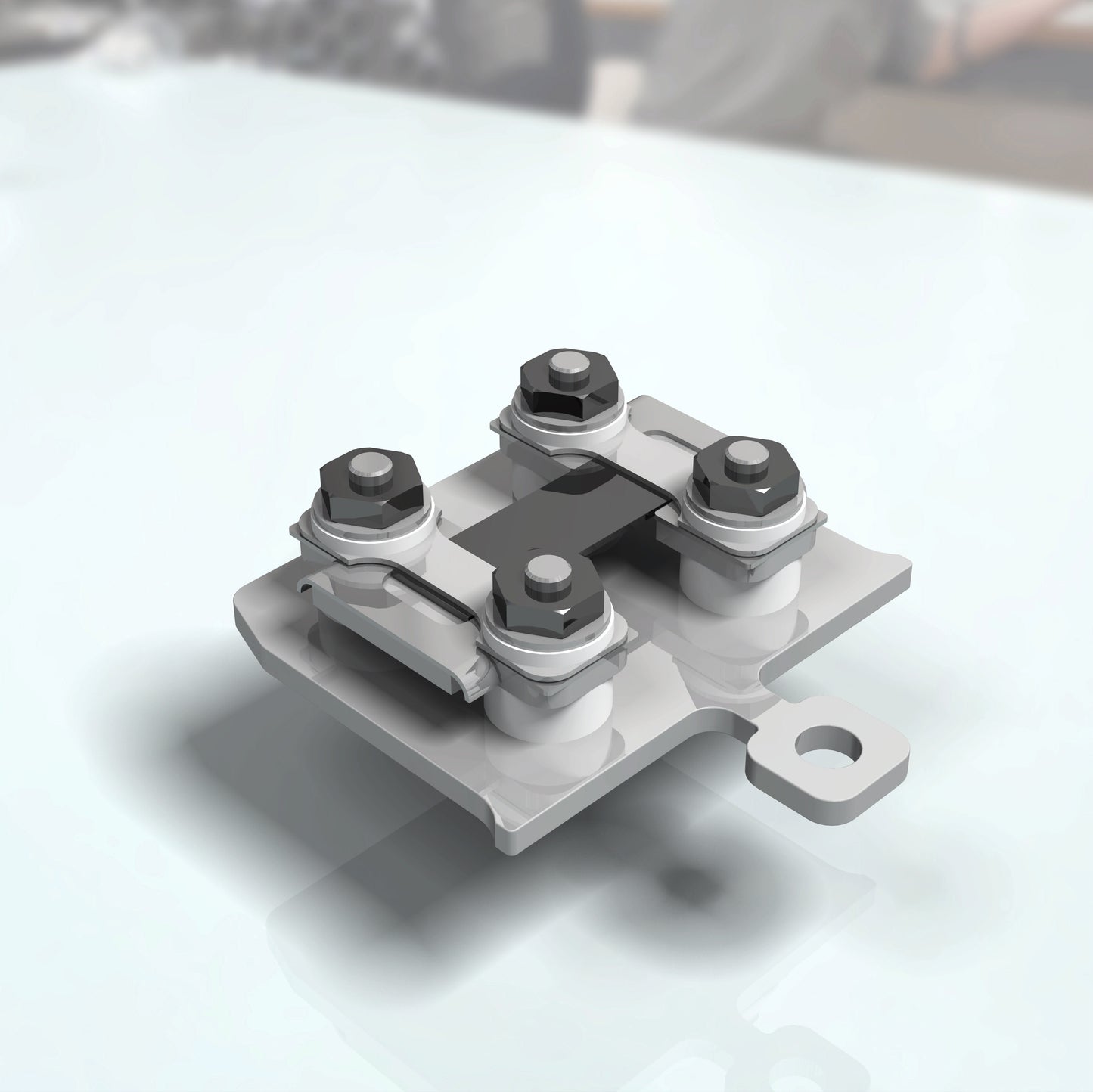

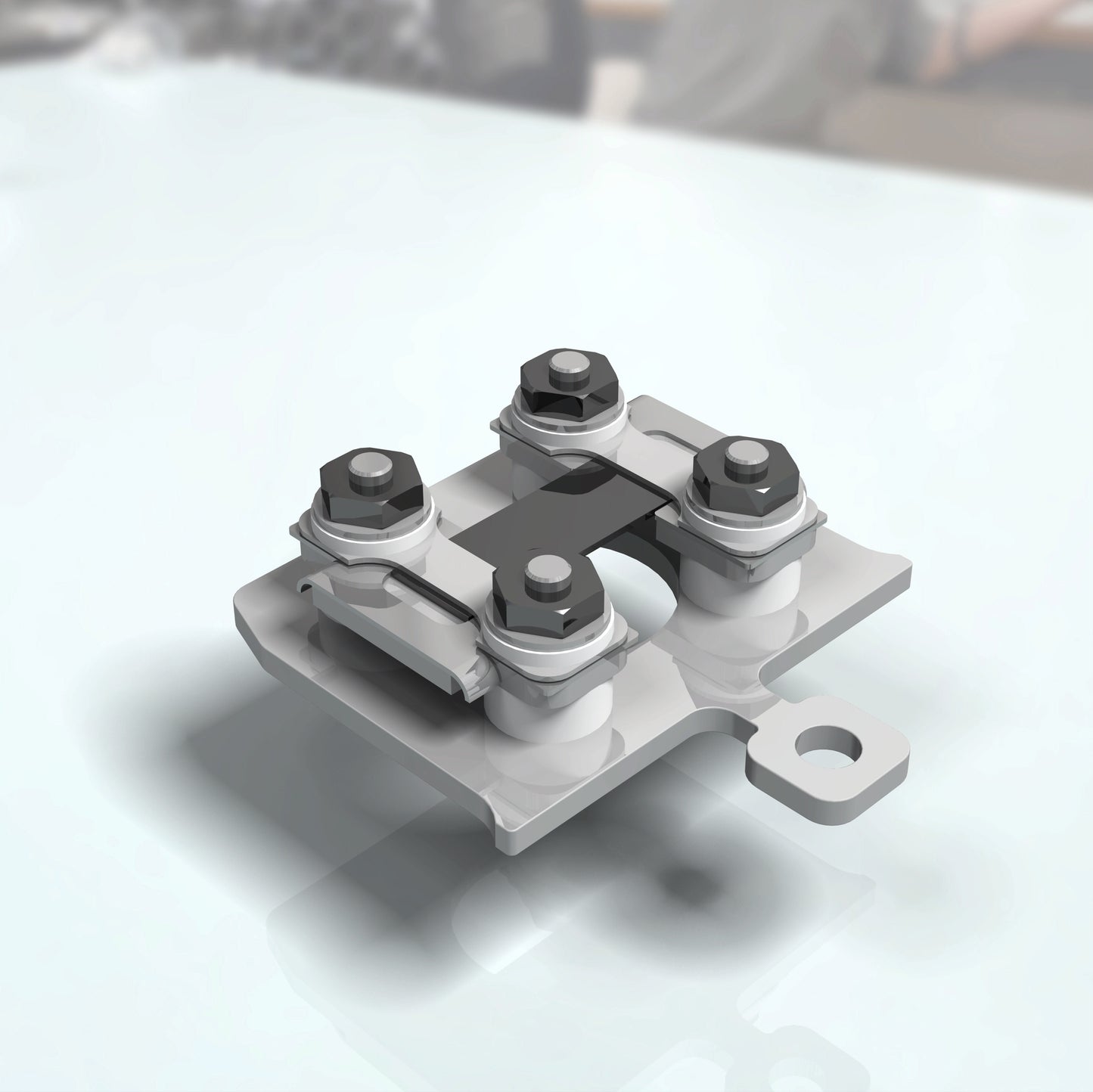

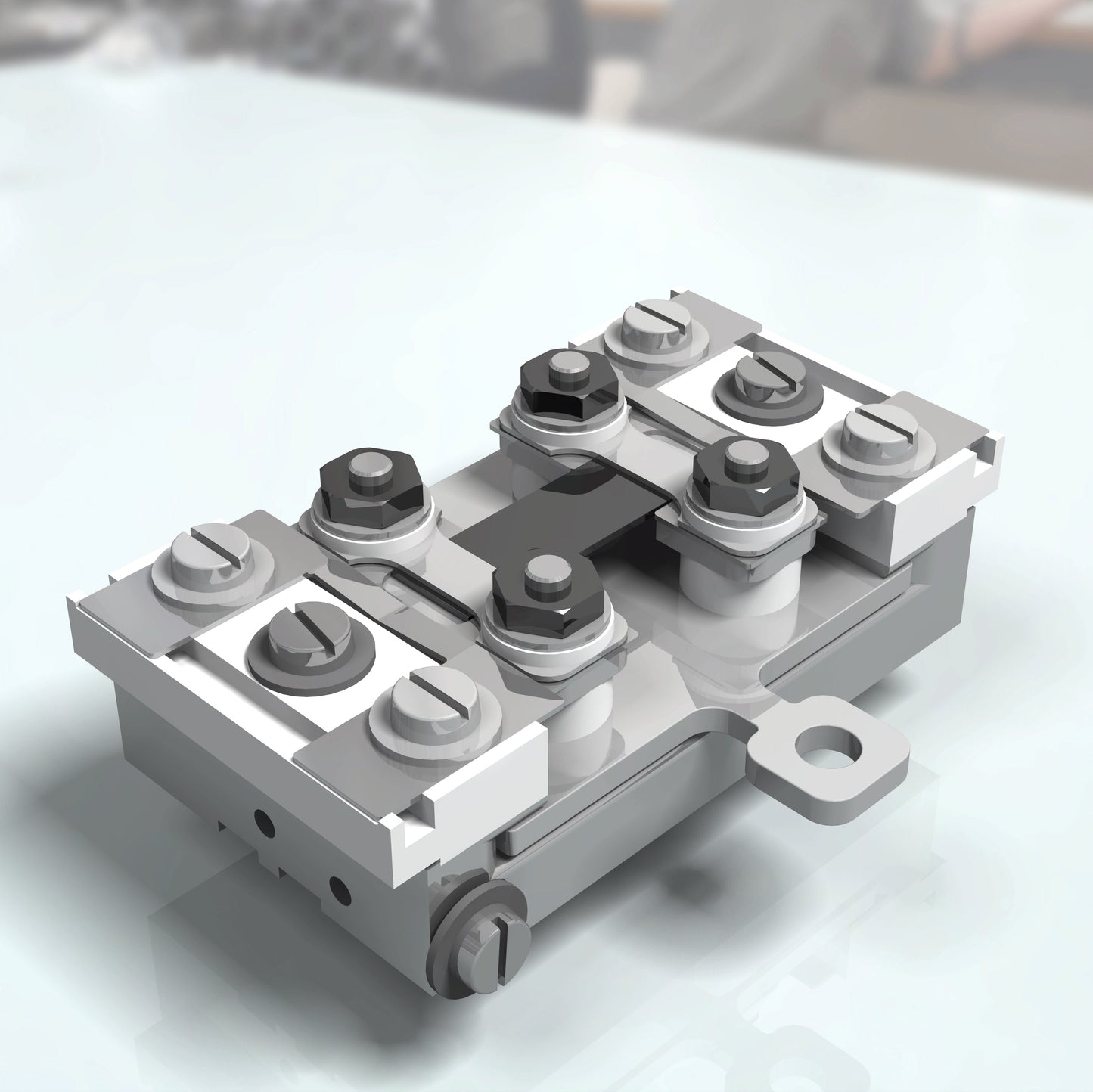

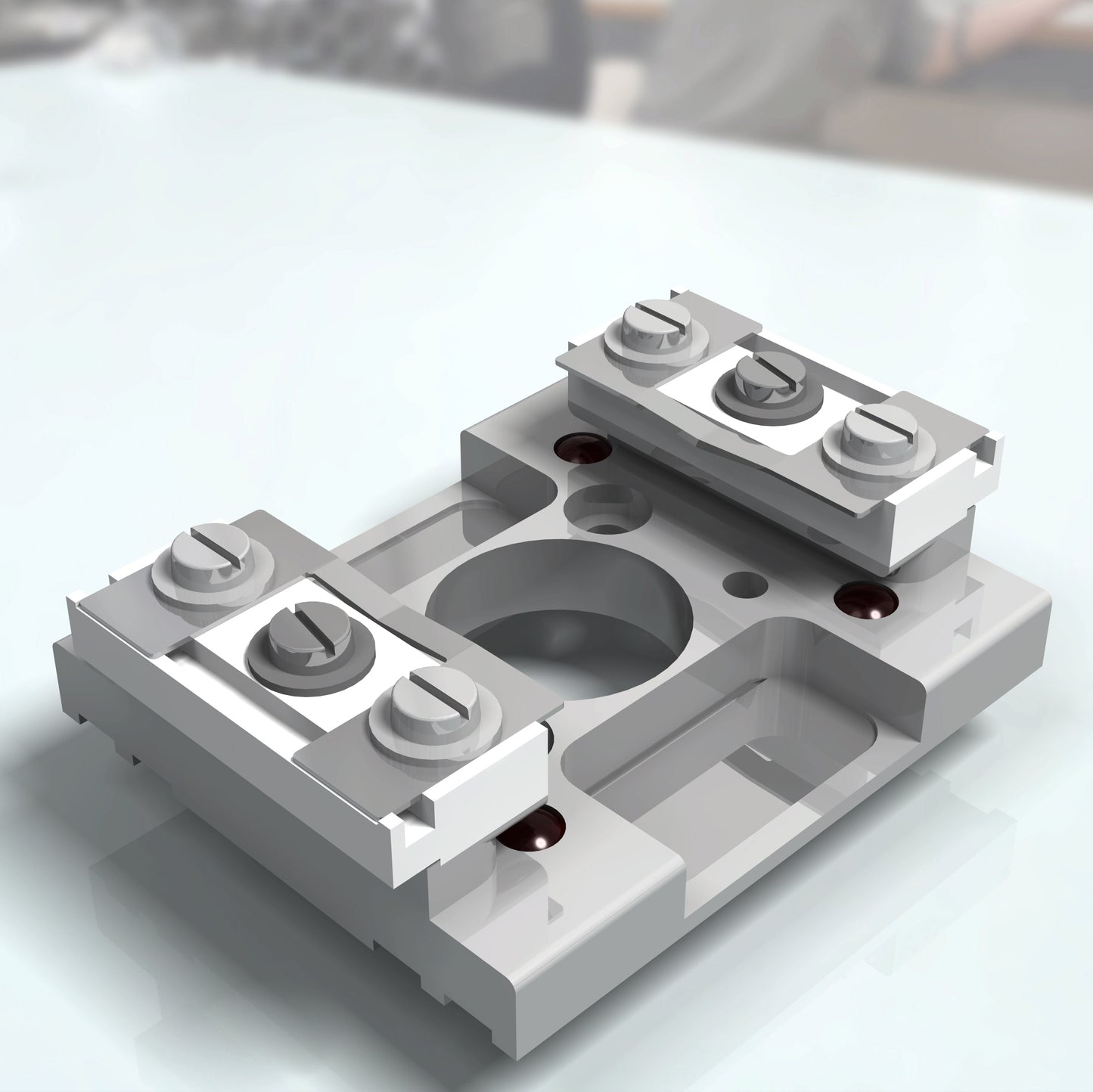

For preparing semiconductor surfaces like the Si 7x7 reconstruction for instance, the best and most simple way is usually direct current heating. The DC sample holders are made of Molybdenum and Al2O3. The sample is secured by two Mo strips.

For spectroscopy and STM experiments we recommend the version with one side of the sample is permanently Grounded with metallic (Mo) spacers instead of the ceramic ones.

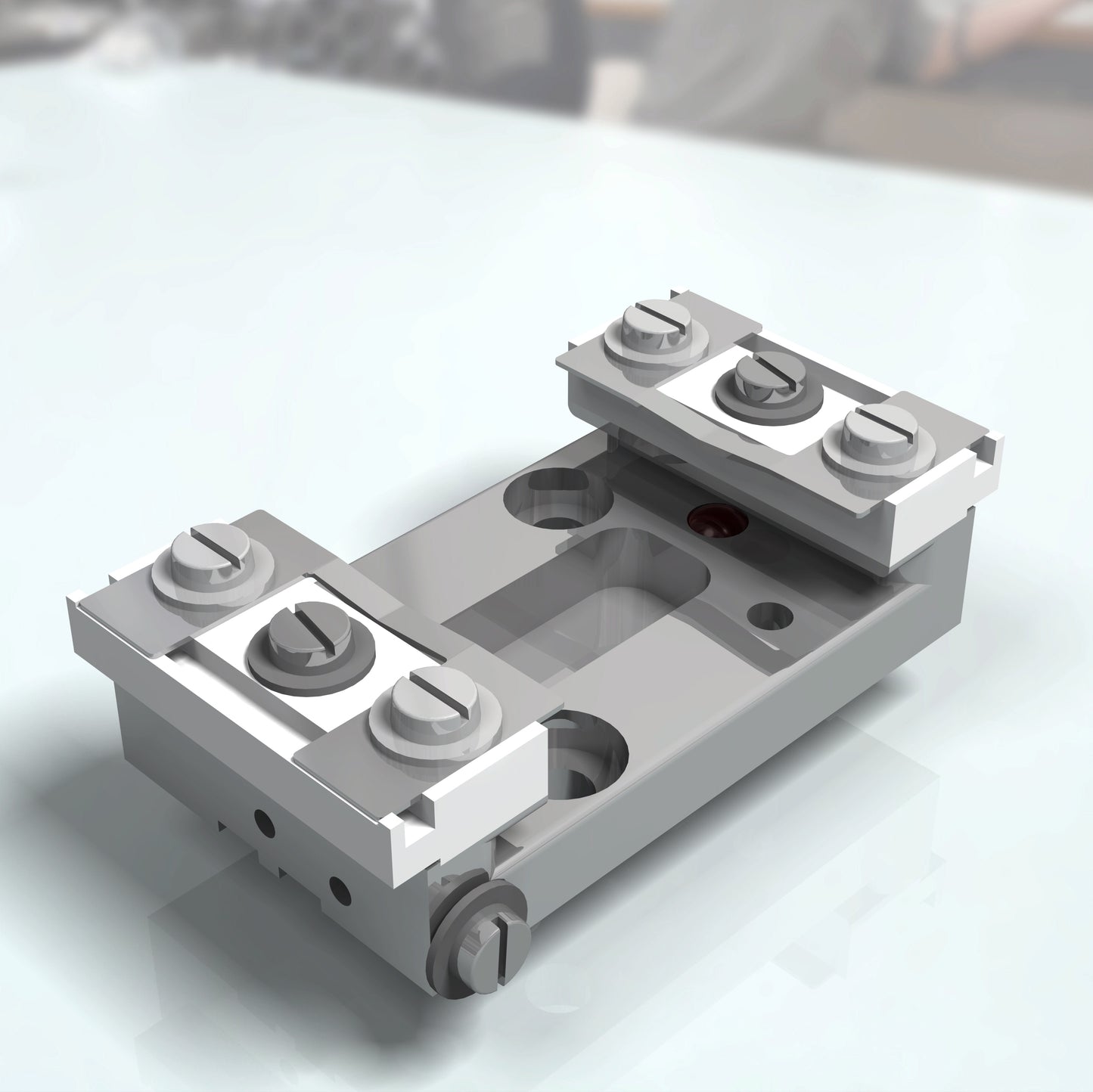

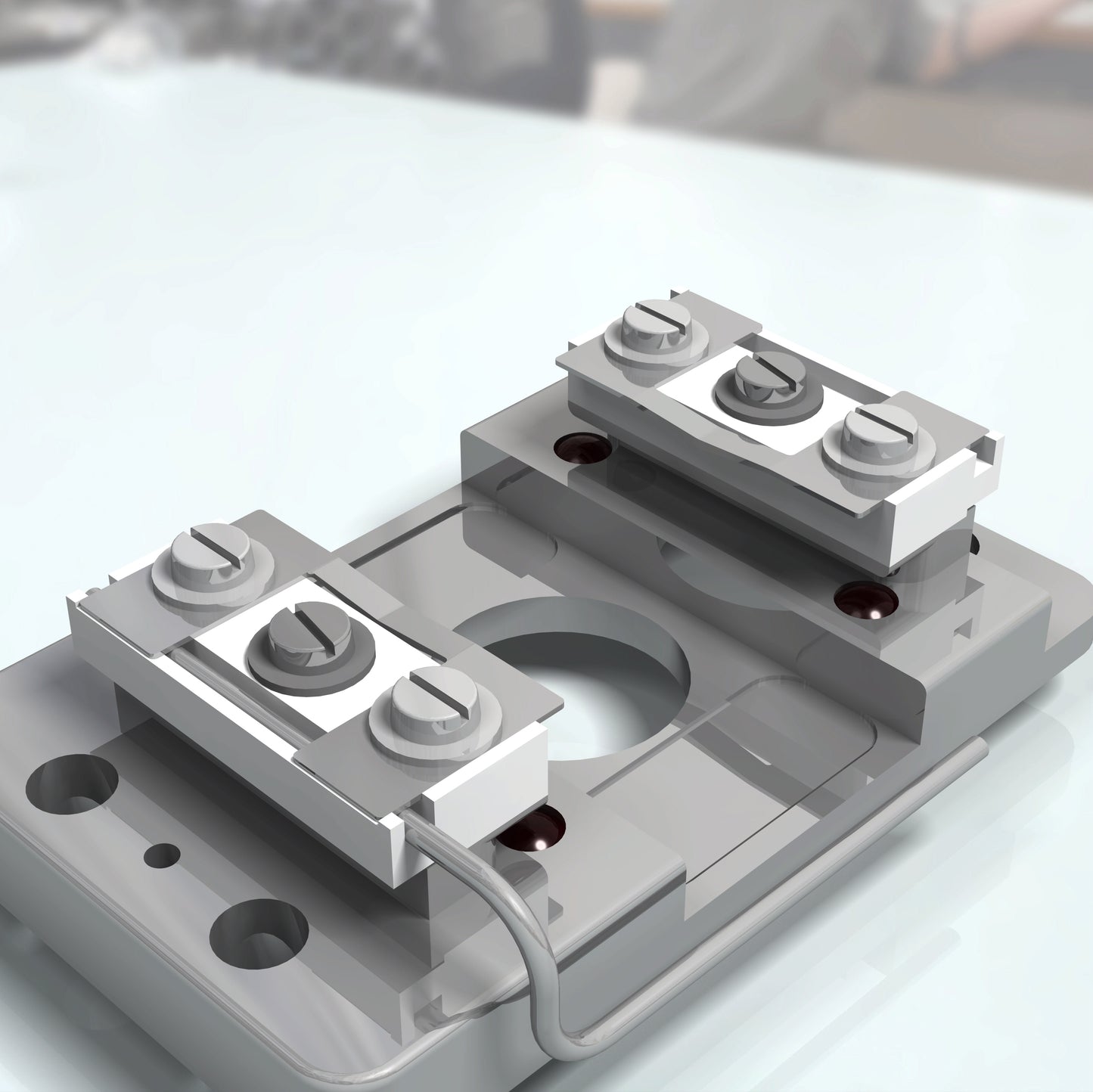

The receiver provides isolated contact rails for attaching wires.

• Minimum sample size 8 x 1 x 0.2mm (l x w x h)

• Maximum sample size 11 x 3.5 x 0.5mm (l x w x h)

• Material Molybdenum, Al2O3
• The maximum temperature depends on the material and shape of the actual sample
