Mini NexGen Ultra-High Vacuum Suitcase Package for Room-Temperature Transfer

Mini NexGen Ultra-High Vacuum Suitcase Package for Room-Temperature Transfer

Regular price CHF 29,750.00
Regular price Sale price CHF 29,750.00
Sale Sold out
Shipping calculated at checkout.
0 piece(s) in our central warehouse. 🚀
Available on back order or custom made.
Please contact UHV Store LLC to clarify delivery time.

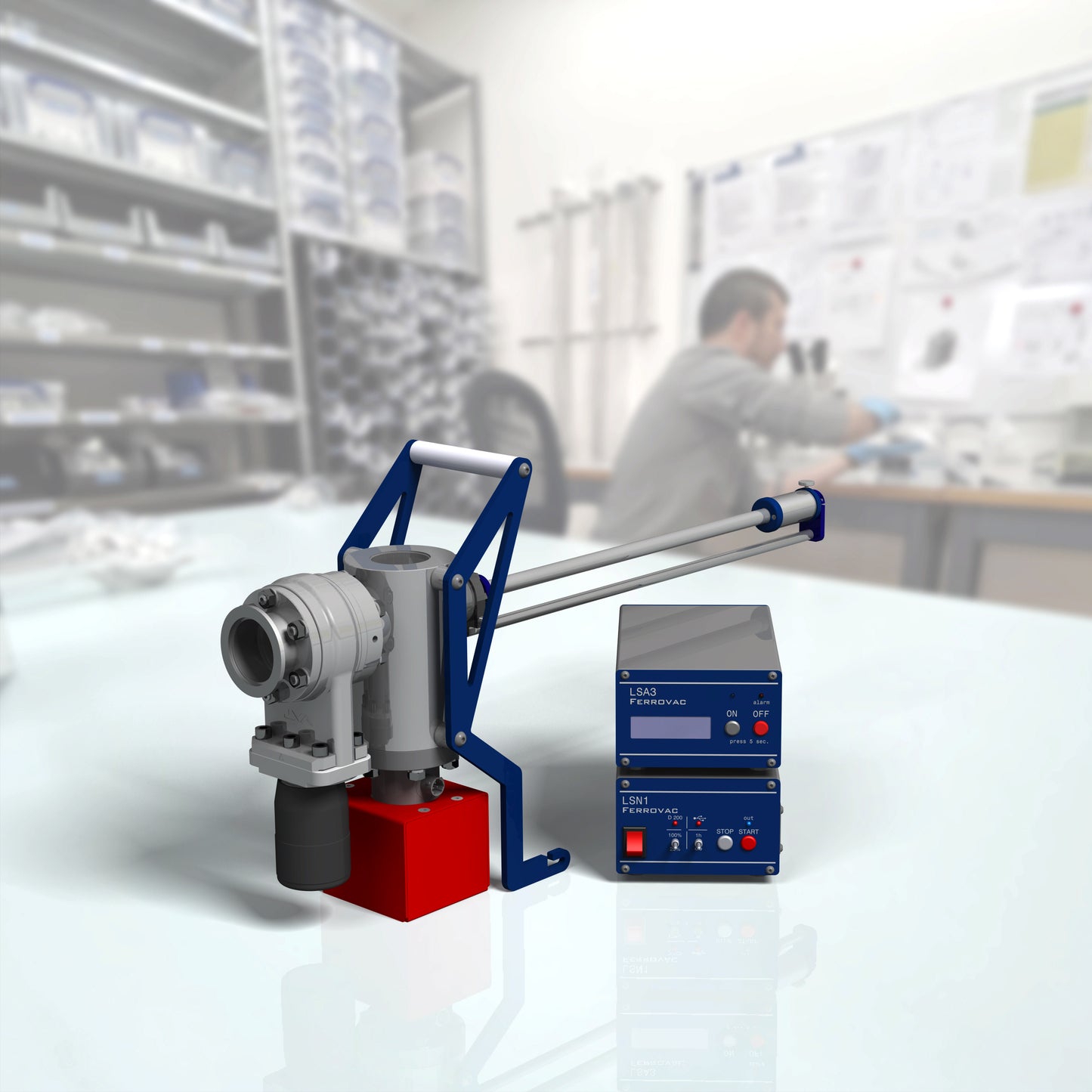

Wherever space is limited or if you just want the smallest and lightest UHV suitcase available, the Mini is the ideal solution for transferring multiple samples at once between separate instruments. It is as a truly portable, especially compact, lightweight and slim UHV system. Availability of Combined Non-Evaporable Getter (NEG) and Ion-pump technology in the same pump made it's design feasible.

A compiled storage stack provides space for up to four samples.

The high voltage for the ion-pump element is delivered by the rechargeable, battery-driven power supply. The vacuum level is shown directly on the display. The NEG element can be activated with our included controller.

VSN40M complete suitcase package. Available for Flag-Style Sample Holder.

  • Linear/rotary feedthrough with a stack for Flag Style Sample Holder
  • DN40CF gate valve with removeable extra-compact adapter to DN40KF
  • NexTorr D200-5 combined Neg-Ion pump
  • LSA3.1 controller with pressure and temperature readout
  • LSN1 controller for NEG activation
  • full set of controller cables
  • bakeout tent for UHV suitcase
  • bakeout heater for UHV suitcase
  • flightcase for Mini NexGeneration UHV Suitcase
  • Weight approx. 5.5kg (+1kg for each controller)
  • Bakeout temperature 150deg C max.

The suitcase is delivered under Ultra High Vacuum, ready for immediate use.
