PBN Heating Station for Flag Style Plates
PBN Heating Station for Flag Style Plates
Regular price
CHF 14,625.21
Regular price
Sale price
CHF 14,625.21
Unit price
/
per
Shipping calculated at checkout.
SKU: HSASOM40(PBN)
0 piece(s) in our central warehouse. 🚀
Available on back order or custom made.
Please contact UHV Store LLC to clarify
delivery time.
Couldn't load pickup availability

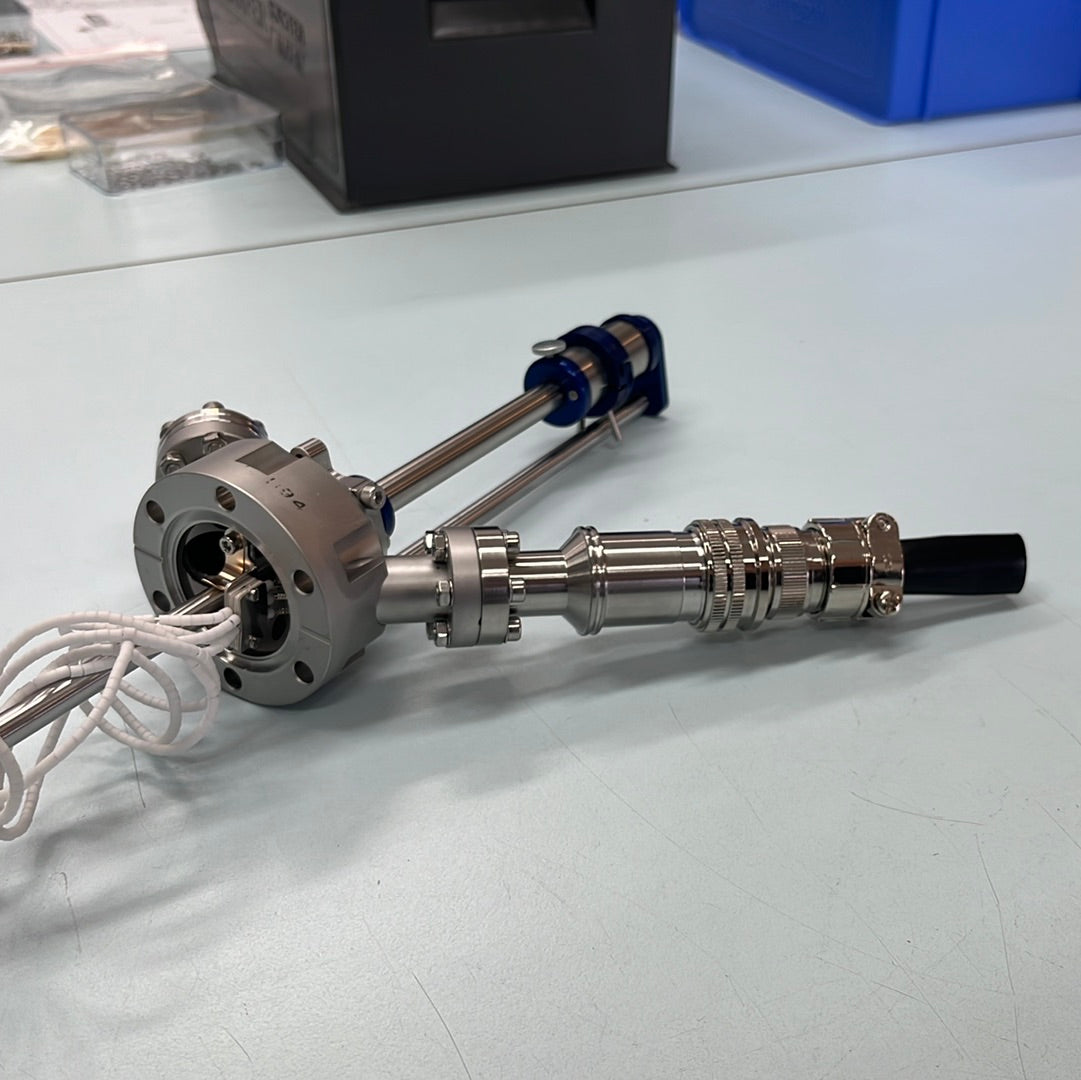

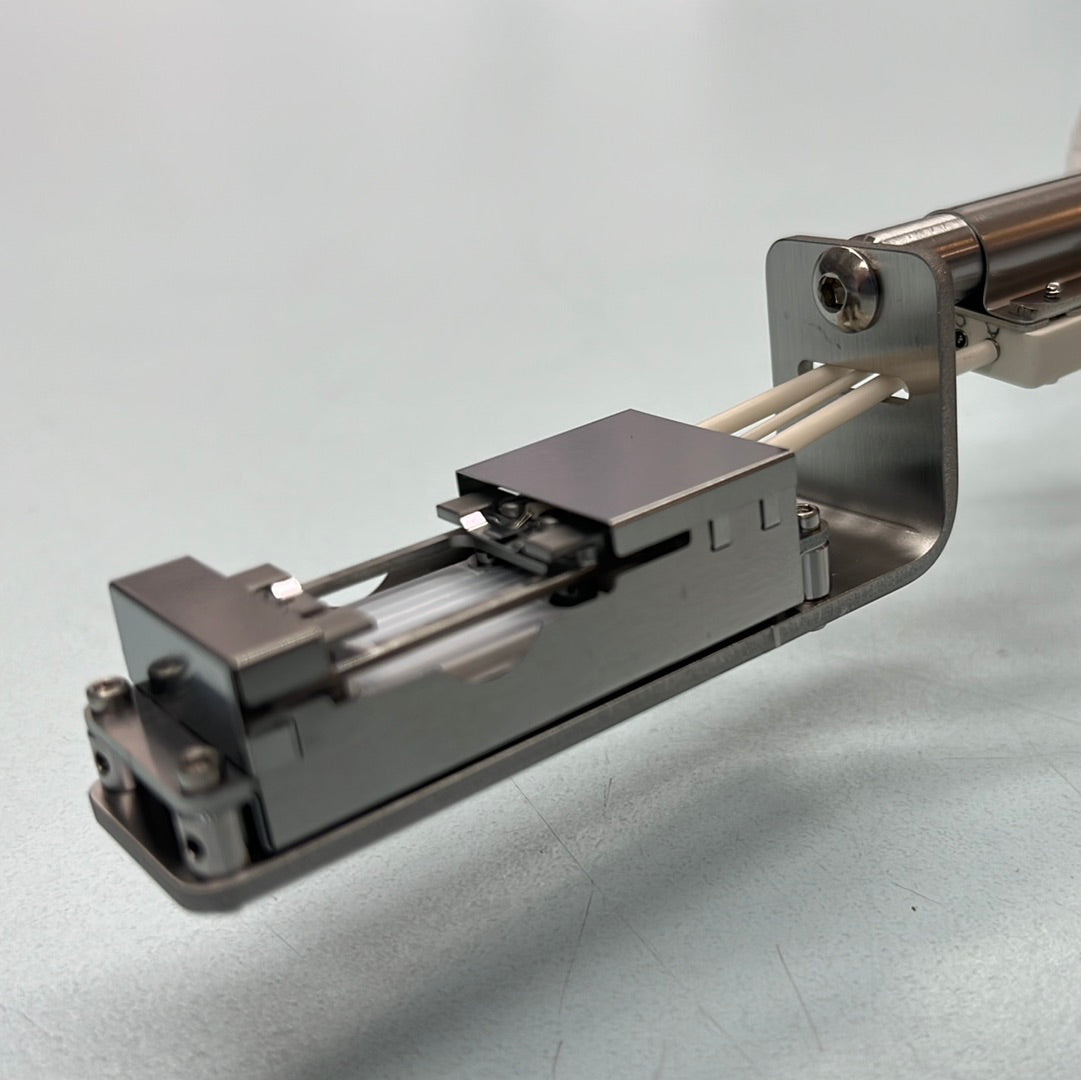

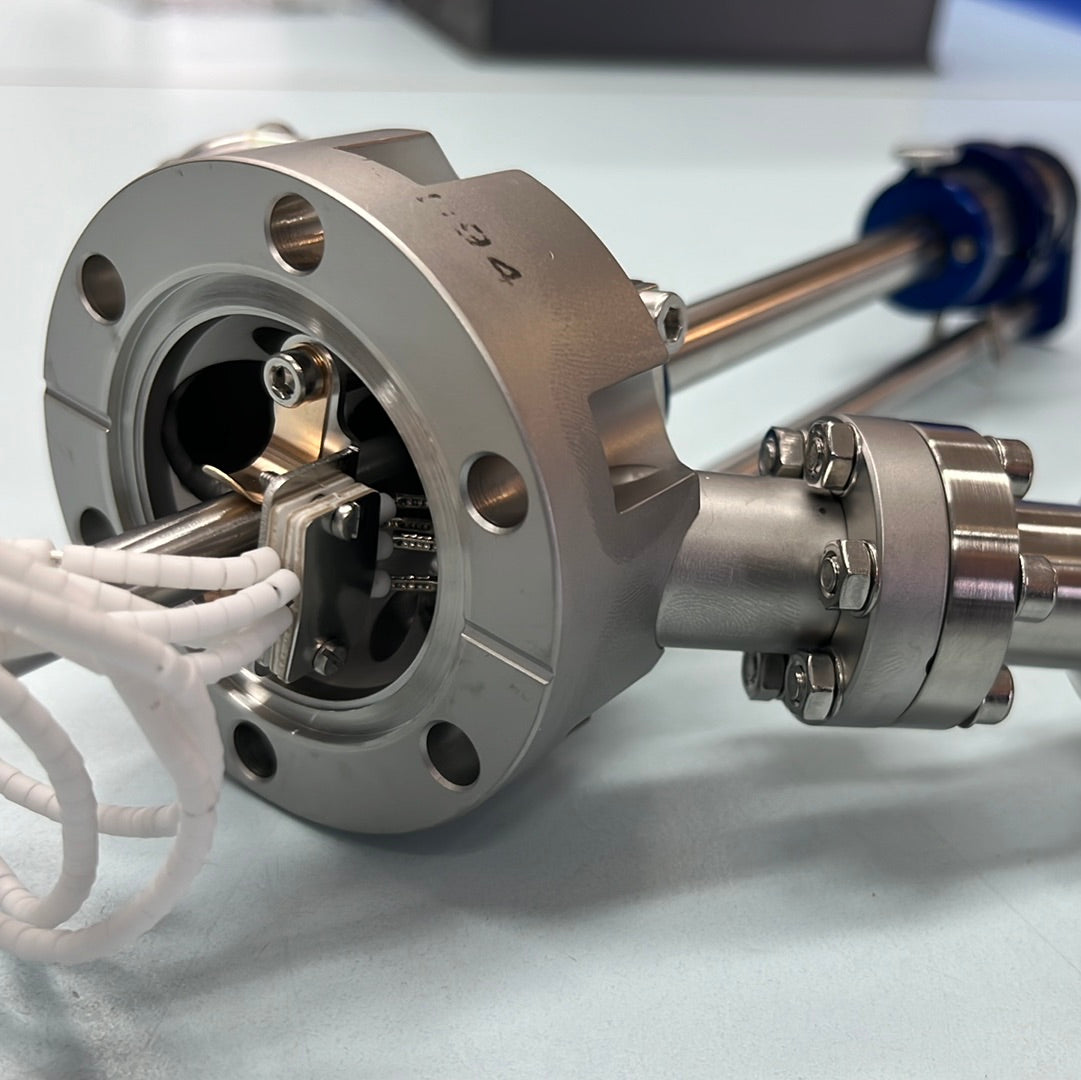

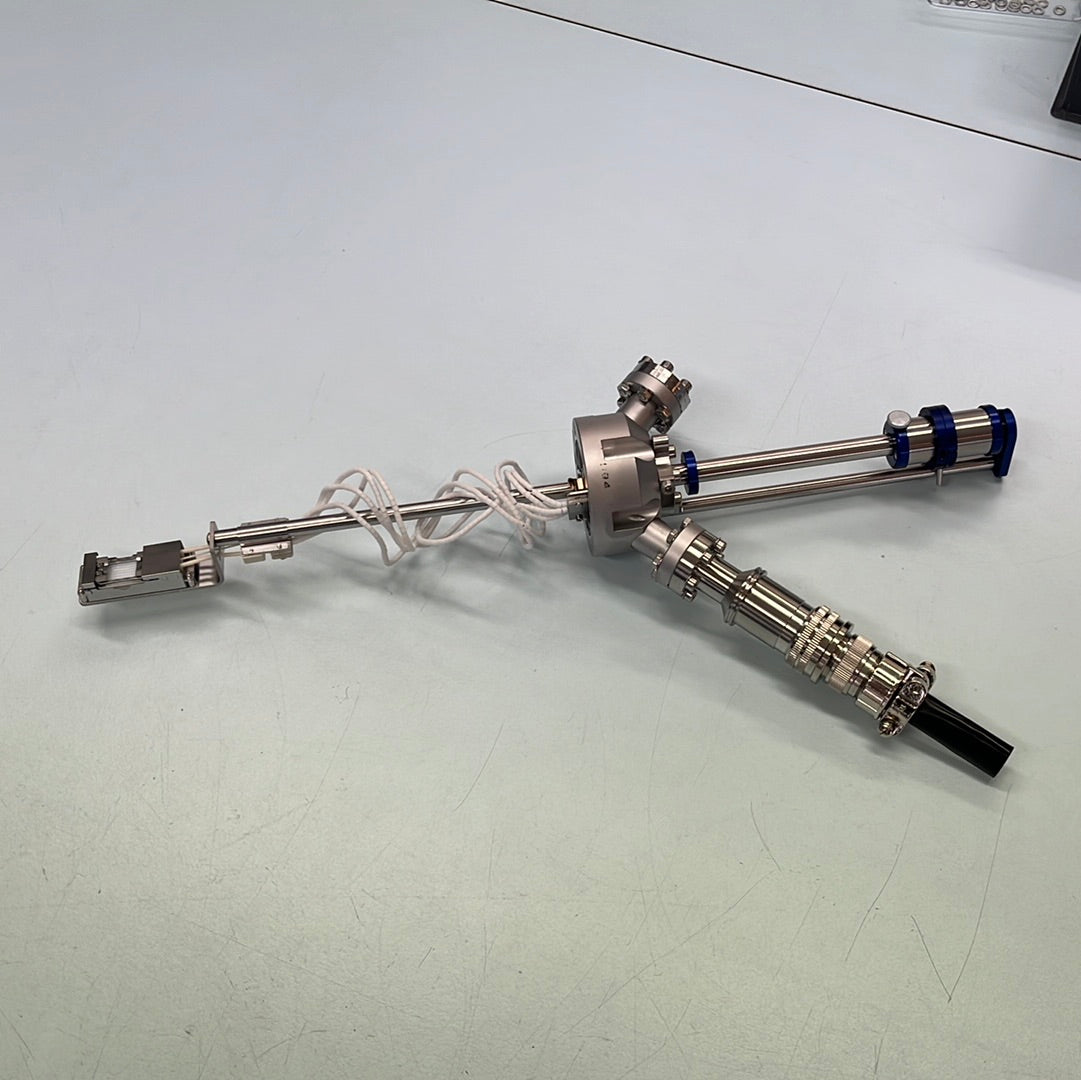

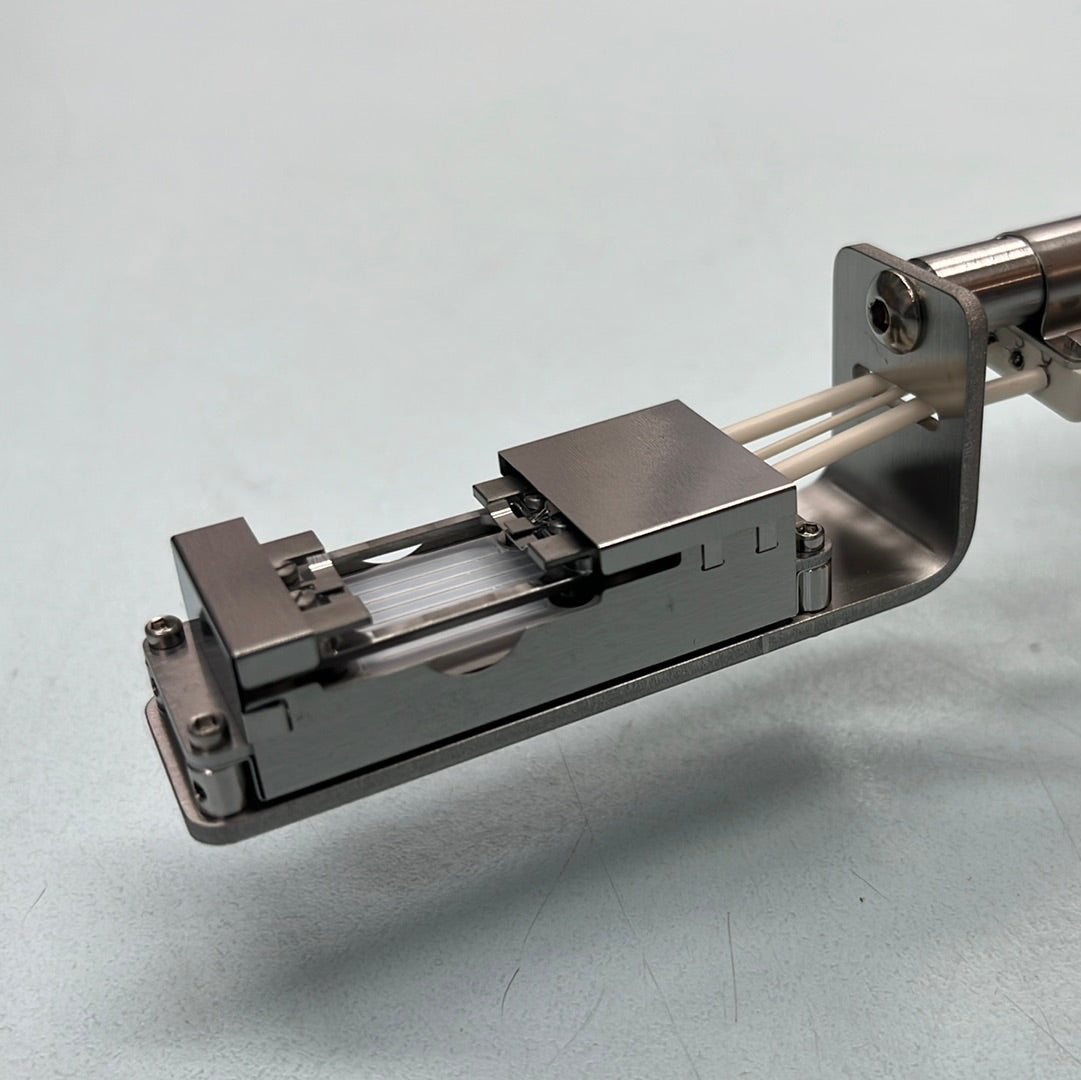

Composed of a PBN pyrolitic boron nitride sample heating stage for SHOM samle holders, this fully configured assembly is completely mounted on a DN40CF (2.75") flange, including wiring and the electrical feedthrough.
This provides complete, ready to use solution for sample heating/ annealing under UHV conditions up to 1000°C.
- Distance from flange face to center (or surface) of sample plate: customized
- Completely mounted on DN40CF-flange, incl. wiring and electrical feedthroughs.
- PBN Heater Assembly:
- Maximum Temperature: ~1000°C
- Maximum Power: 120W (40V, 3.0A at ~1000°C)
- Installed Thermocouple: K-type (chromel/alumel)
- fully UHV compatible materials:
- Screws/ Washers: Molybdenum, stainless steel (grade A4)
- Mounting Sleeves: Stainless Steel (1.4301)
- Isolators: Ceramics (Al203)
- Sample Plate Receiver: Molybdenum
- Body/ Housing: Molybdenum
- Boralectric Heater: Pyrolytic boron nitride, pyrolytic graphite
- MS type air side connector included.
- SHV type air side connector included
- Power Supply: Not included (Recommendation: Power 150W, Voltage Range: 0-50V, Current Range: 0-5A)
- Controller not included
- Tolerances:
- Machined Parts: ISO 2768-m-K
