Rotary Feedthrough

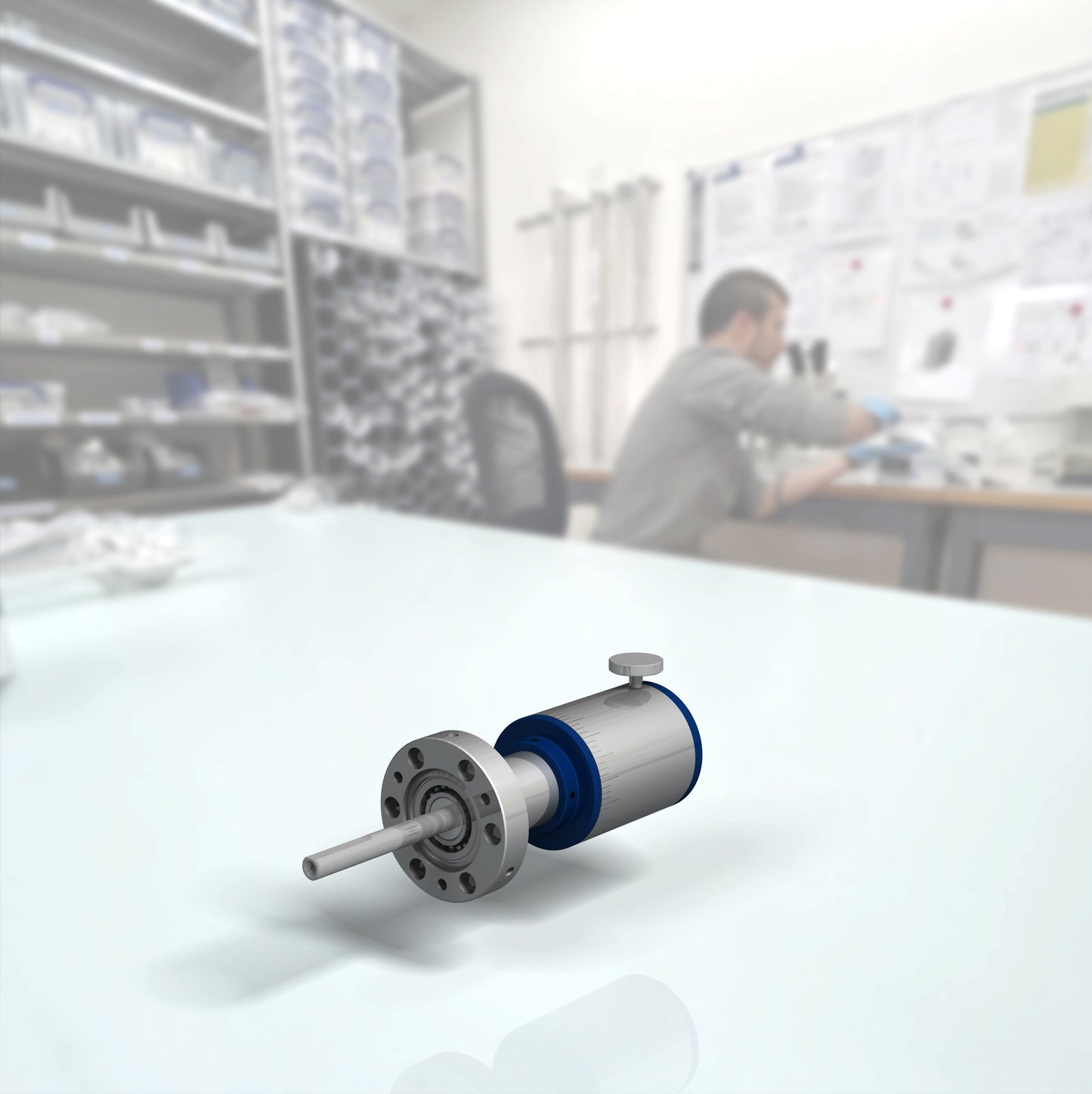

The RF16 is a multipurpose magnetically driven high quality miniature rotary feedthrough with a torque of 0.5 Nm. This basic model is manually driven.

• mounting flange DN16CF (1.33" O.D.) with through holes
• torque 0.5 Nm
• fully UHV compatible materials
• pressure range 1E-11mbar to 1000mbar
• material stainless steel (1.4301)
• ball bearings Dicronite coated
• bakeout temperature max. 200°C
• Swiss made

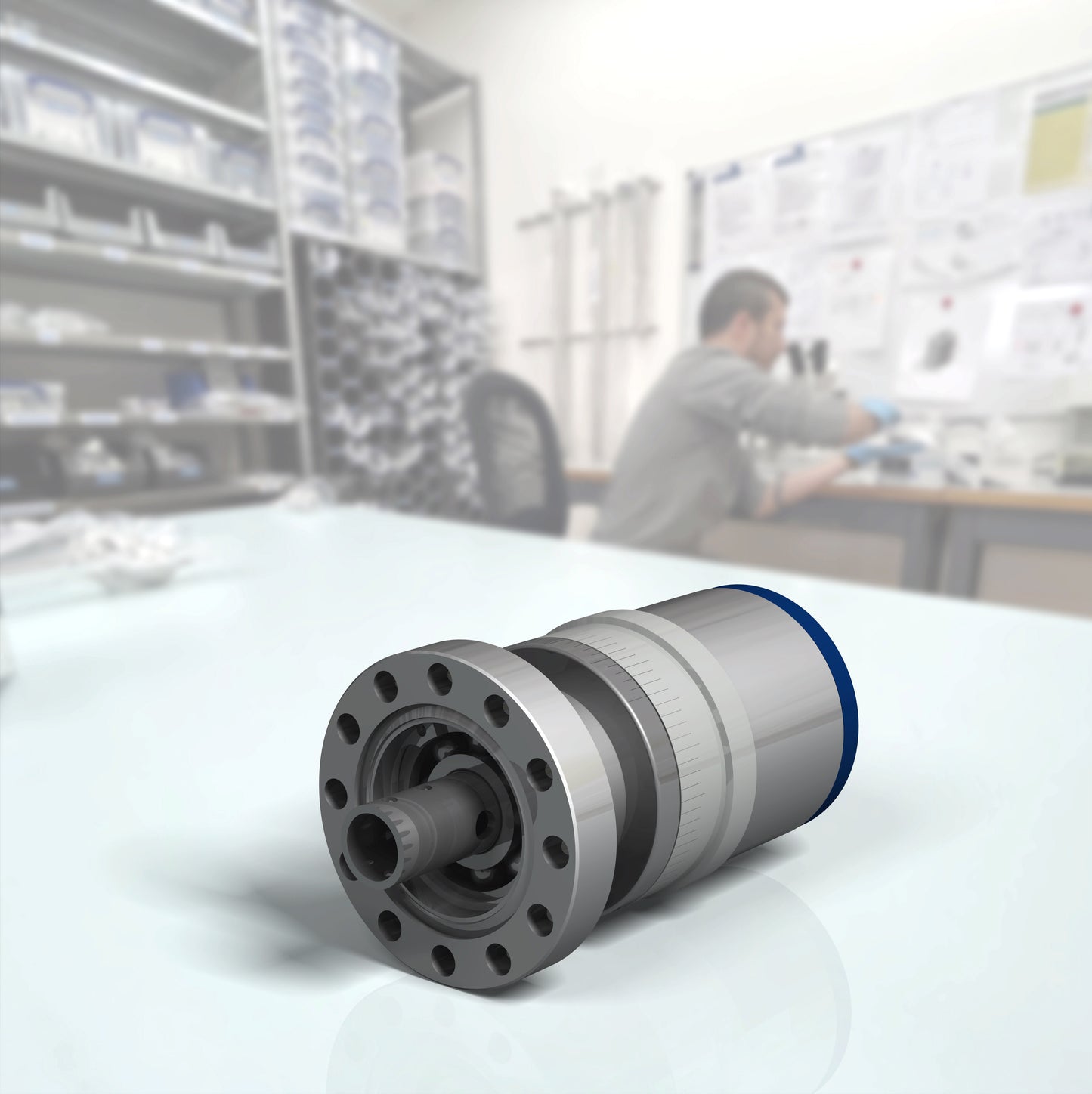

The RF40 is designed to be used in conjunction with the Ferrovac Boomerax series of Manipulators. It's high-torque capability along with a CF16 feedthrough make it ideal for use in turning inserts and allowing electrical feedthrough through to a sample environment.

• mounting flange DN40CF
• feedthrough flange DN16CF
• 360° precision scale with vernier and adjustable zero
• torque: 10Nm
• max axial load: 500N
• max radial load: 300N
• bakeout temperature: 200 °C max.
• He leak rate: <1*10E-10mbar*l/s
• pressure range 1E-11mbar to 1000mbar
• fully UHV compatible materials
• Swiss made
