Ferrovac AG

Sample Transporter

Sample Transporter

Regular price CHF 3,380.00
Regular price Sale price CHF 3,380.00
Sale Sold out
Shipping calculated at checkout.
Shaft version
Linear travel
SKU: RM40-0500-0030
1 piece(s) in our central warehouse. 🚀
Available on back order or custom made.
Please contact UHV Store LLC to clarify delivery time.

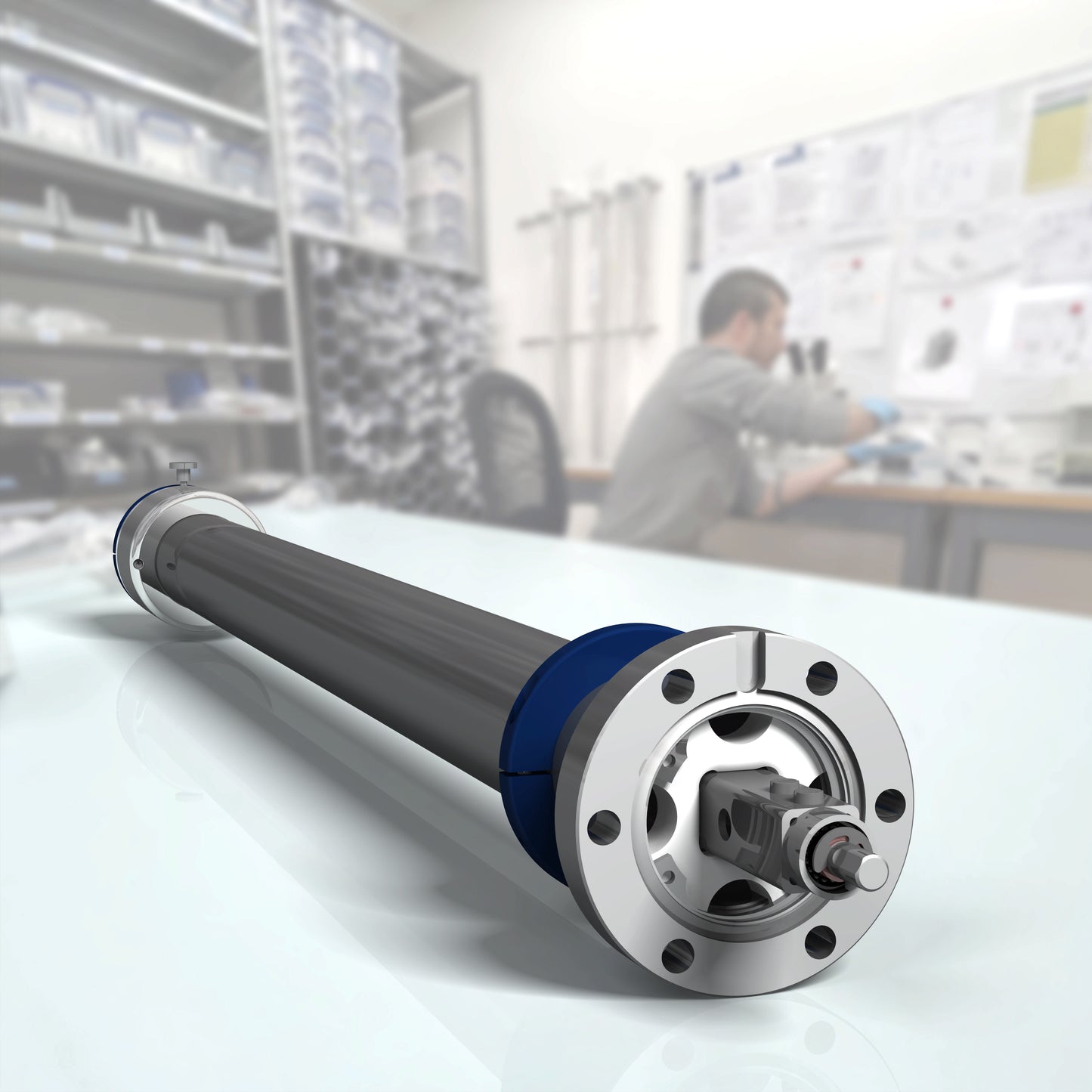

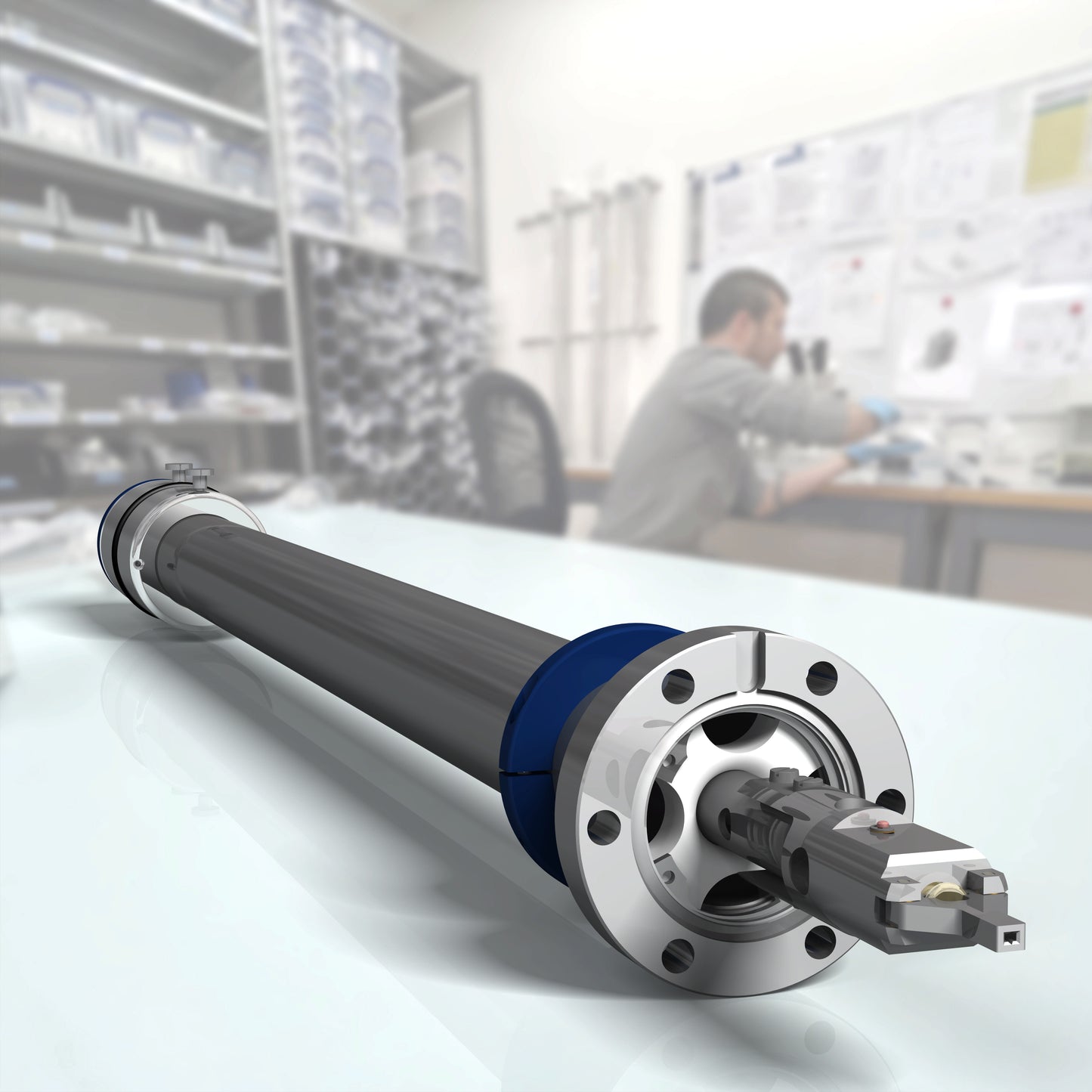

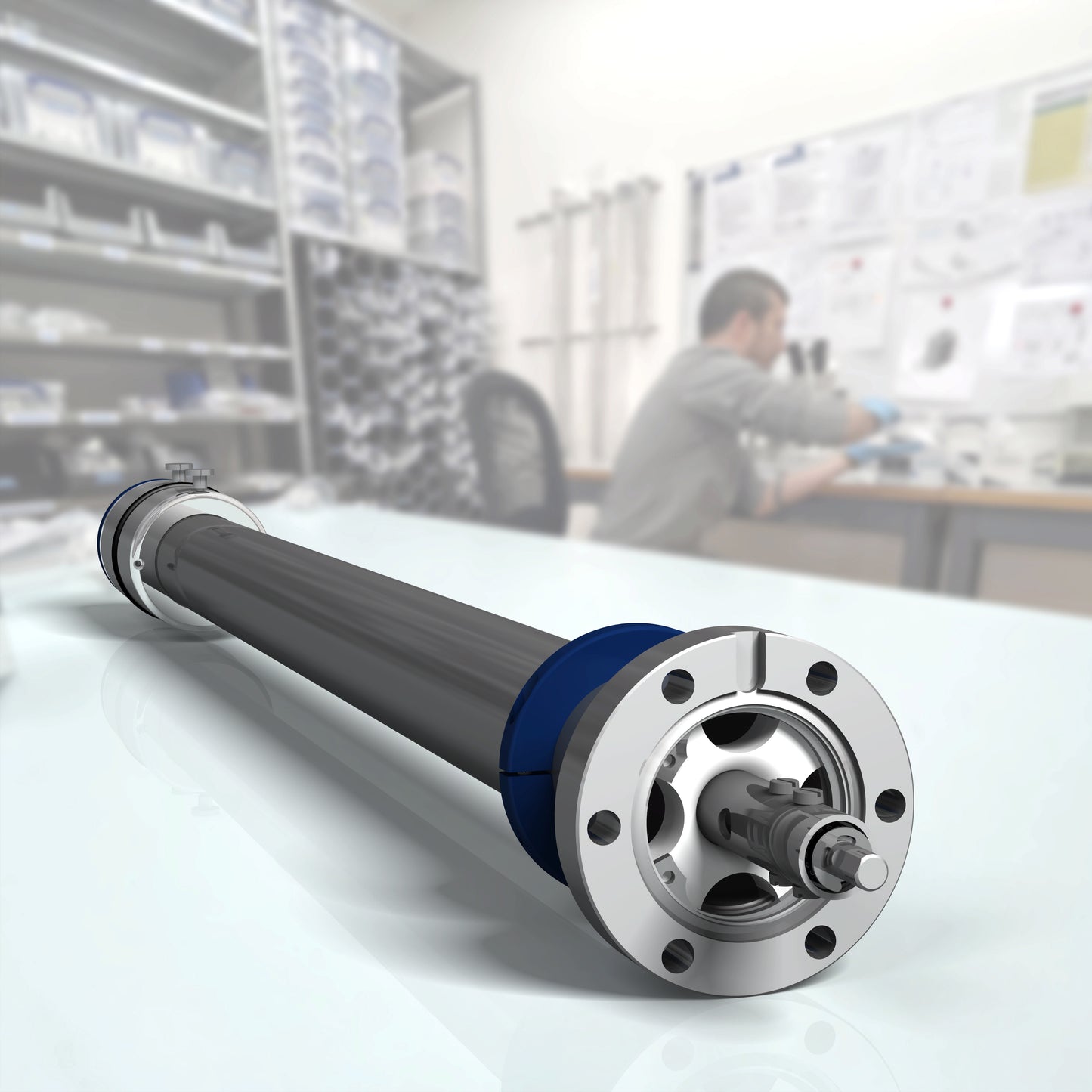

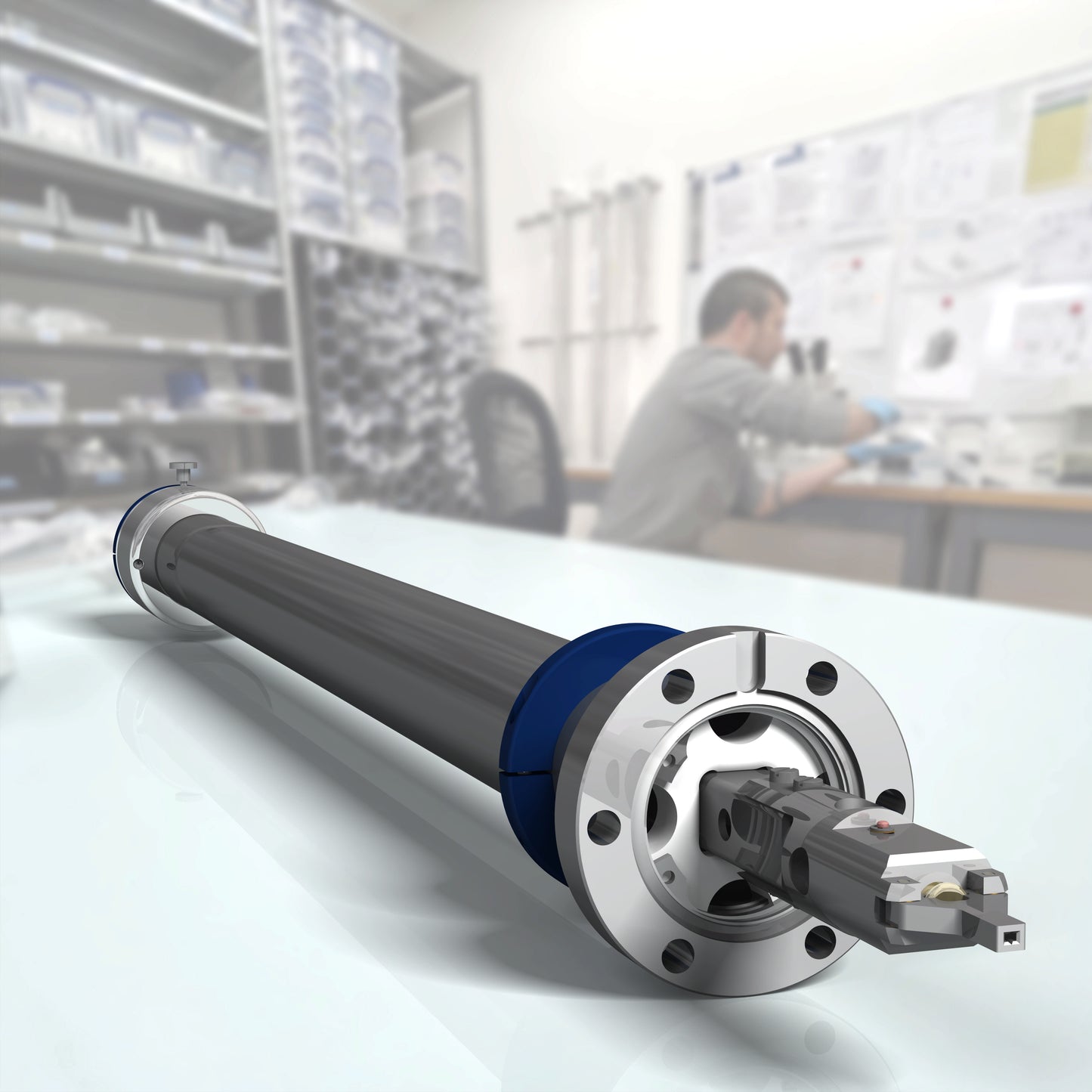

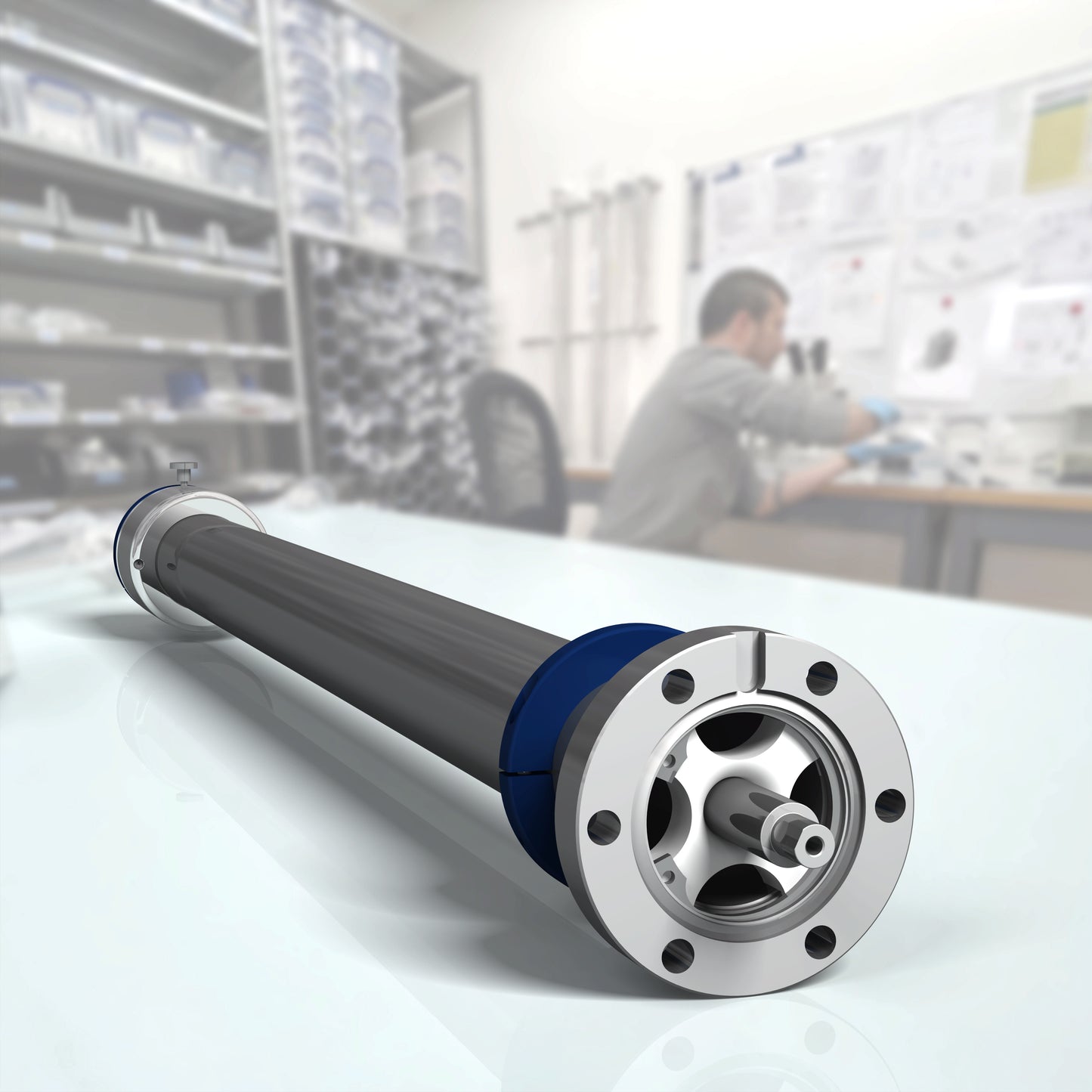

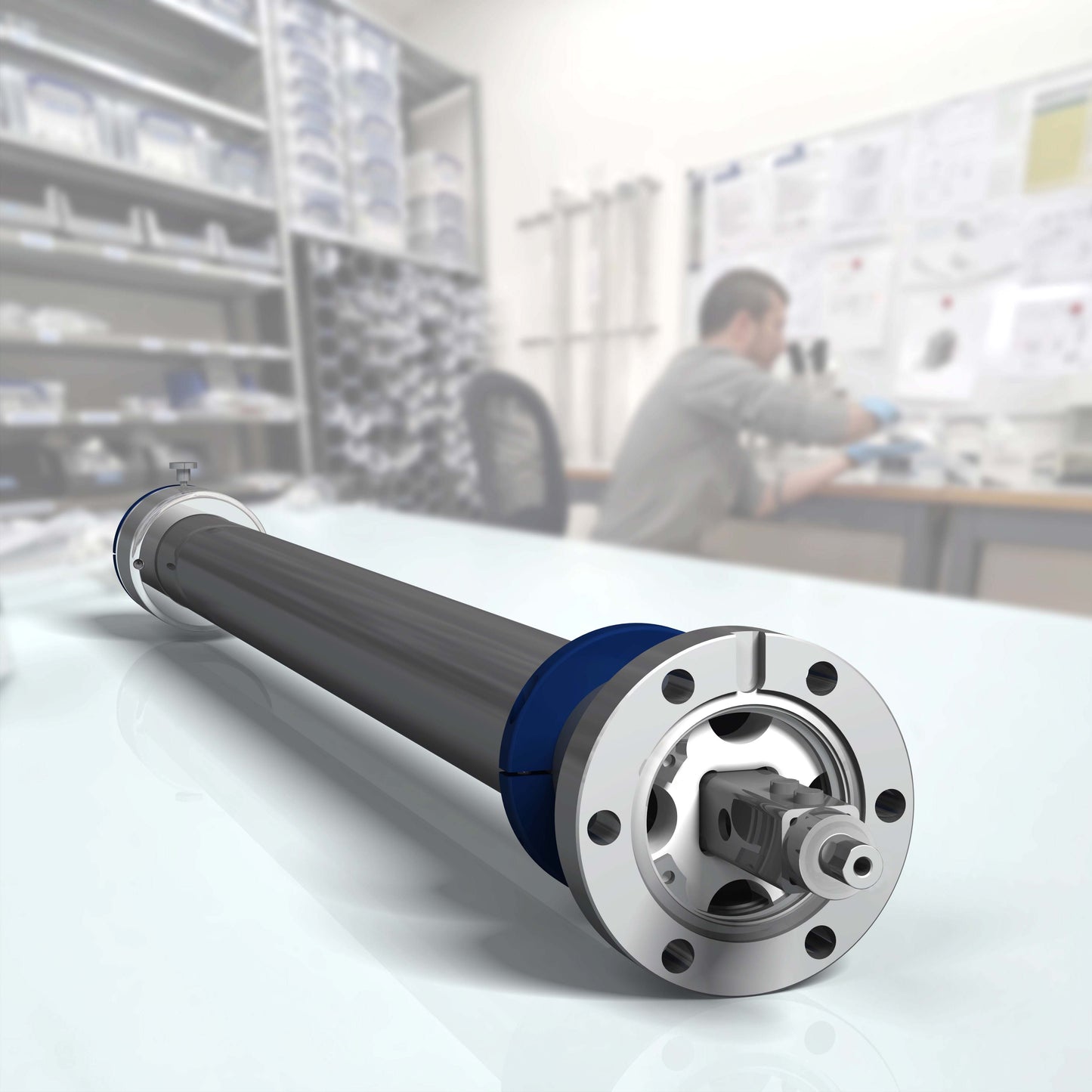

Designed with simplicity and efficiency in mind, our transfer rod is built to seamlessly transport samples between UHV-chambers. Its compact and lightweight construction ensures easy handling, while the all-metal sealed design guarantees a ultra-high vacuum-tight environment.
Our transfer rod utilizes a set of rare earth magnets strategically placed on both the air and vacuum sides. These powerful magnets provide an unbeatable force, ensuring a rigid coupling from the handle to the inner shaft. You can trust in the robustness and stability of our transfer rod throughout the entire sample transport process.
Smooth operation is our promise to you! Thanks to the incorporation of high-quality slide bearings, our transfer rod delivers exceptional performance even after numerous bakeout cycles. These slide bearings minimize friction, providing a seamless and effortless experience each time you use it.
Experience unrivaled axial thrust performance with our transfer rod. With a break-away force of 180N and a break-away rotational torque of 4.65Nm per magnet, it delivers unparalleled strength and precision.
Worried about high-temperature bakeouts? Our transfer rod can handle it all! It boasts a maximum bakeout temperature of 200°C without the need to remove any components. Feel confident in its durability and reliability even under extreme conditions.
Swiss precision and quality are at the heart of our transfer rod. Crafted with meticulous attention to detail, it bears the mark of excellence that comes with Swiss craftsmanship. Trust in our expertise to deliver the highest standards of performance and reliability.
  • Mounting flange DN40CF (2.75" OD) with trough holes
  • Linear travel/ stroke 500mm | 750mm | 1000mm | 1250mm
  • Retracted length Single Shaft 30mm | Dual Shaft 50mm
  • Unrivalled axial thrust performance with a break-away force of ~180N per magnet
  • Unrivalled ~4.65Nm break-away rotational torque per magnet
  • Bakeout temperature max 200°C without removing any components
  • Pressure range 1E-11mbar to 1000mbar
  • Fully UHV compatible materials
  • Swiss made

Upgrade your UHV sample transport with our simple, compact, and all-metal sealed transfer rod. Don't settle for less when you can experience the best. Place your order today and revolutionize your UHV sample handling like never before!
