Ultra-High Vacuum Cryo Transfer Suitcase Package (UHVCTS)

Ultra-High Vacuum Cryo Transfer Suitcase Package (UHVCTS)

Regular price CHF 106,500.00
Regular price Sale price CHF 106,500.00
Sale Sold out
Shipping calculated at checkout.
Sample type (grabber & receptacle)
Extended length from gate valve flange
0 piece(s) in our central warehouse. 🚀
Available on back order or custom made.
Please contact UHV Store LLC to clarify delivery time.

Pat. no. US 11189455 | CN 11396441 | JP 7205944
Pat. pending no. EP 3895196 | AU 2019398069 | CA 3133705

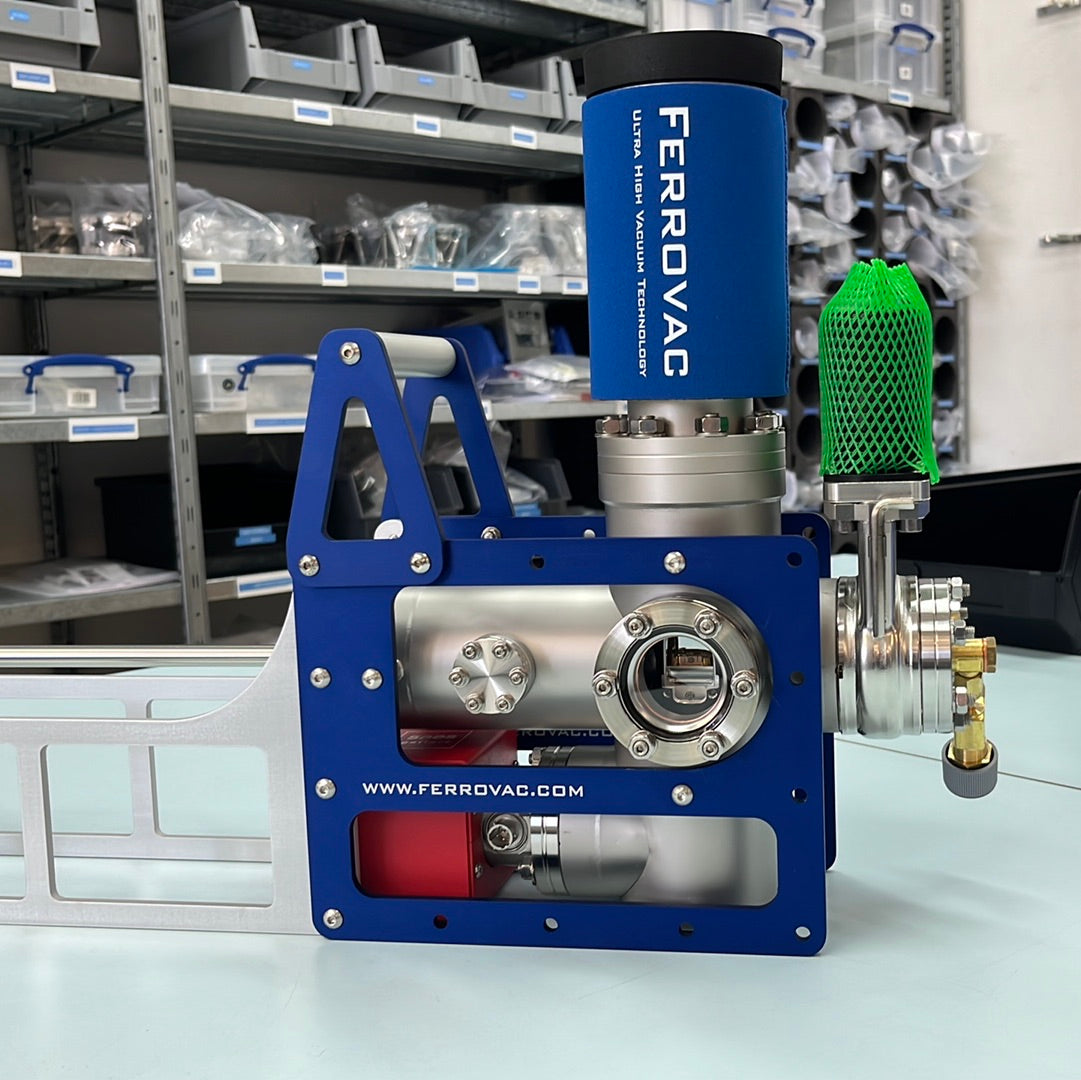

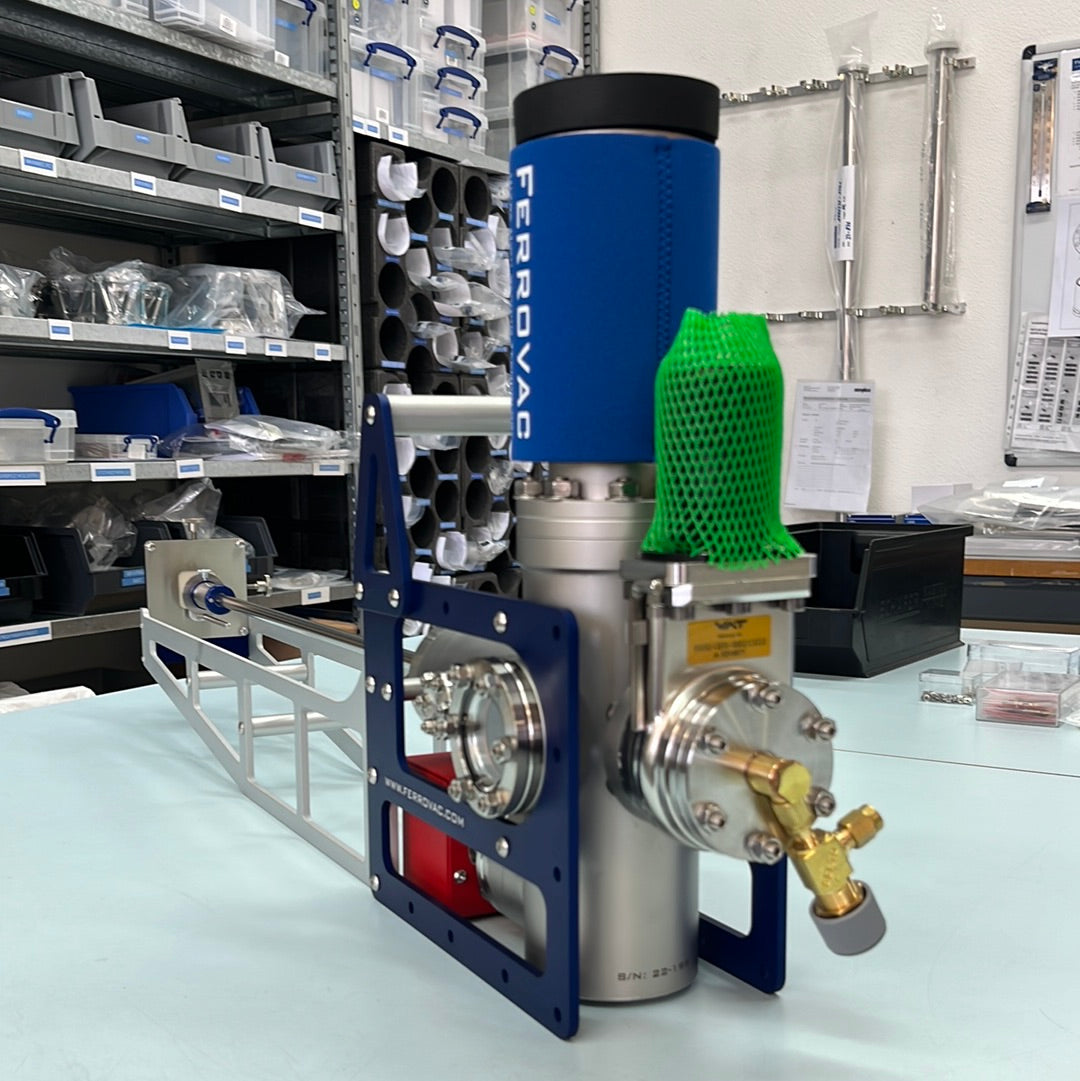

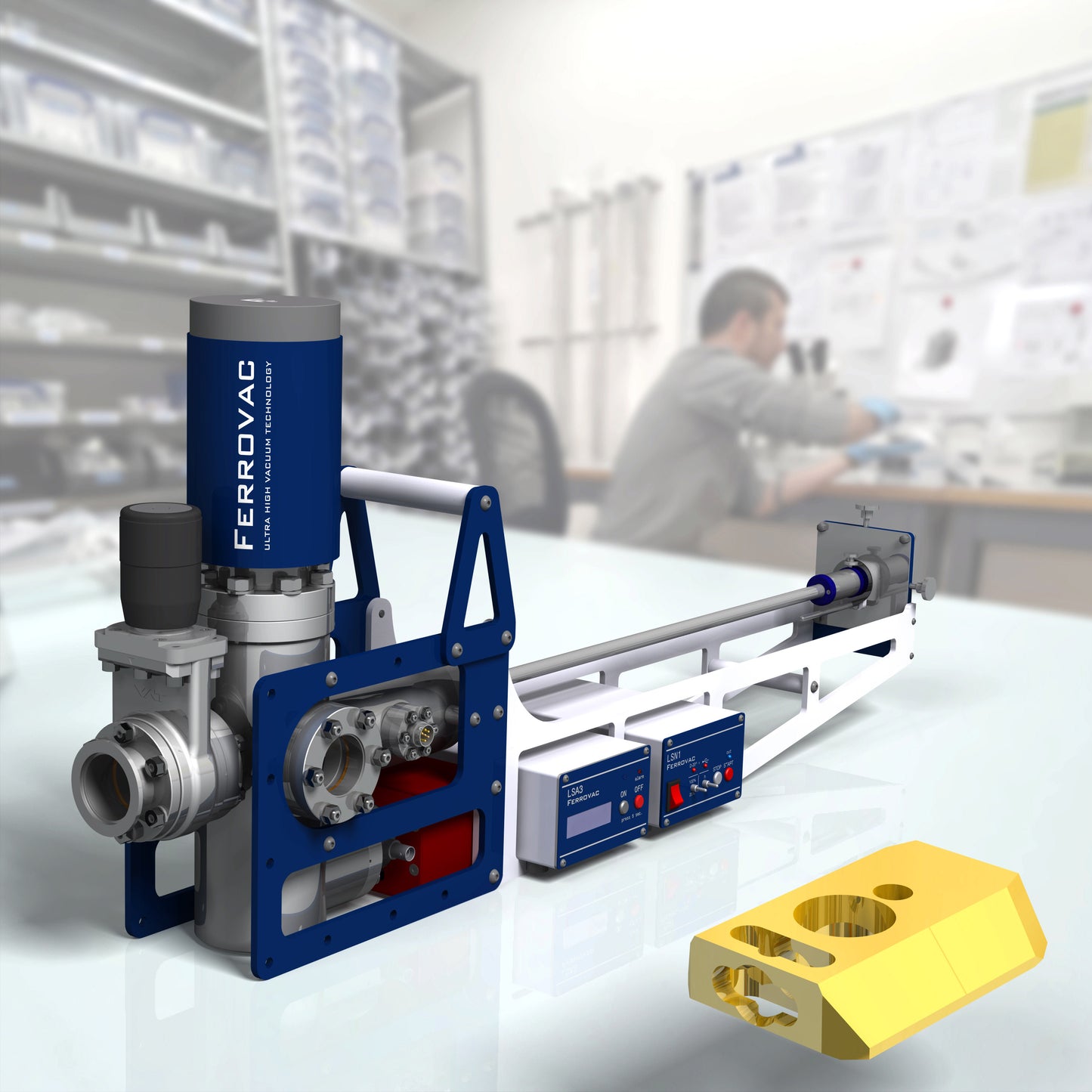

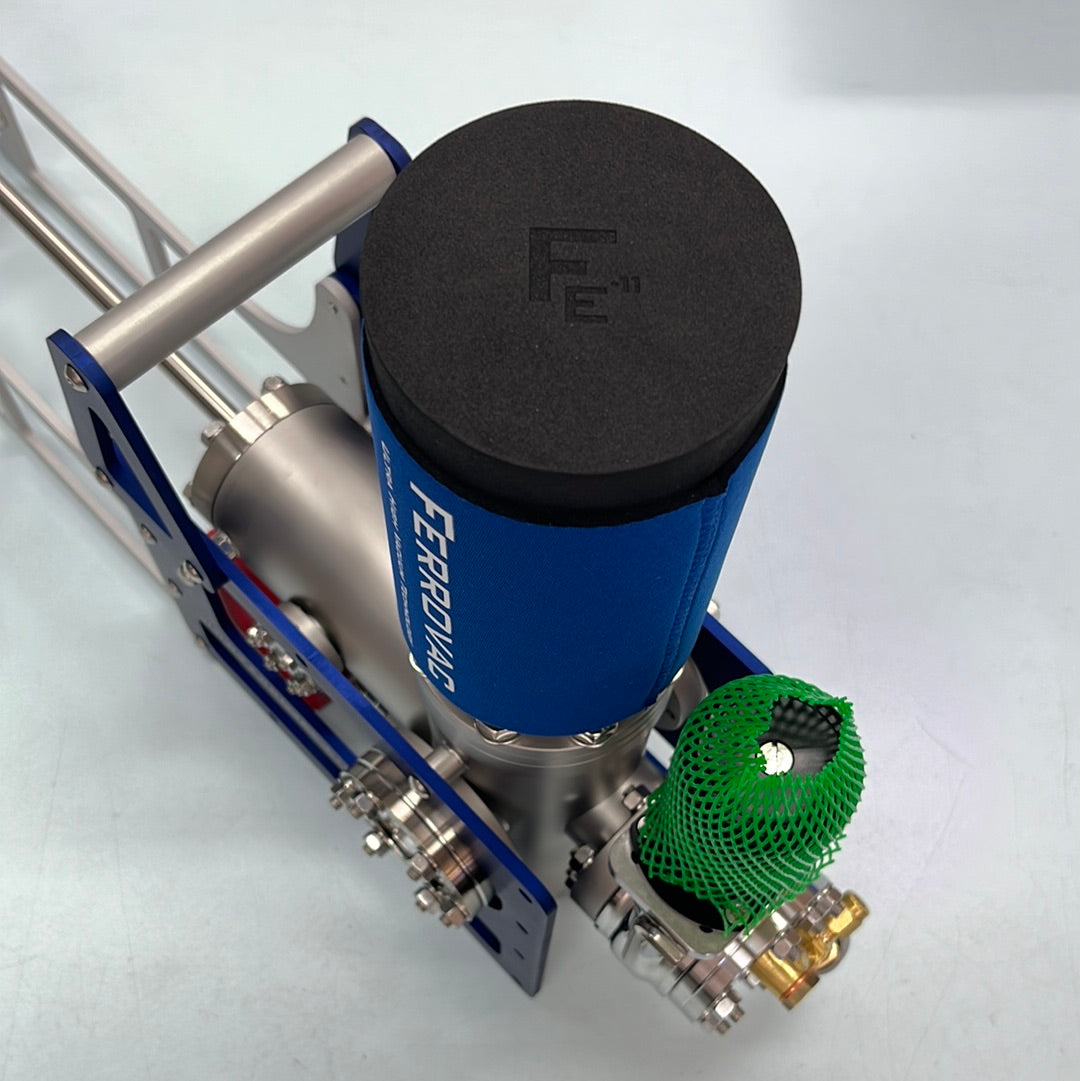

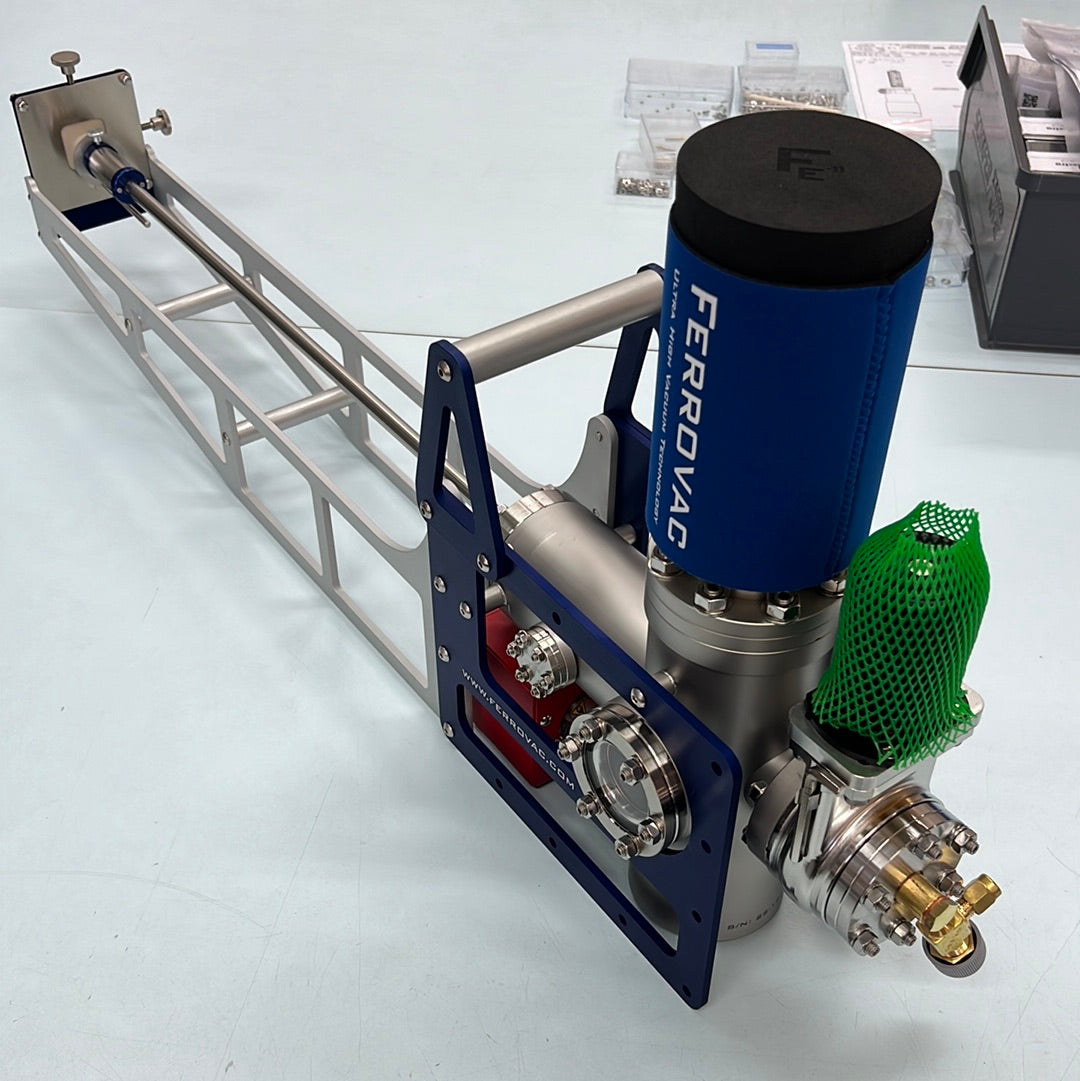

Equipped with a liquid nitrogen dewar for active sample cooling, thermal shields enshrouding the sample, as well as a temperature measuring kit, the Ultra High Vacuum Cryo Transfer Suitcase (UHVCTS) enables transport of sensitive samples at cryogenic temperatures under true UHV conditions (E-11mbar). The UHVCTS is especially compact, lightweight, robust and easy to use.

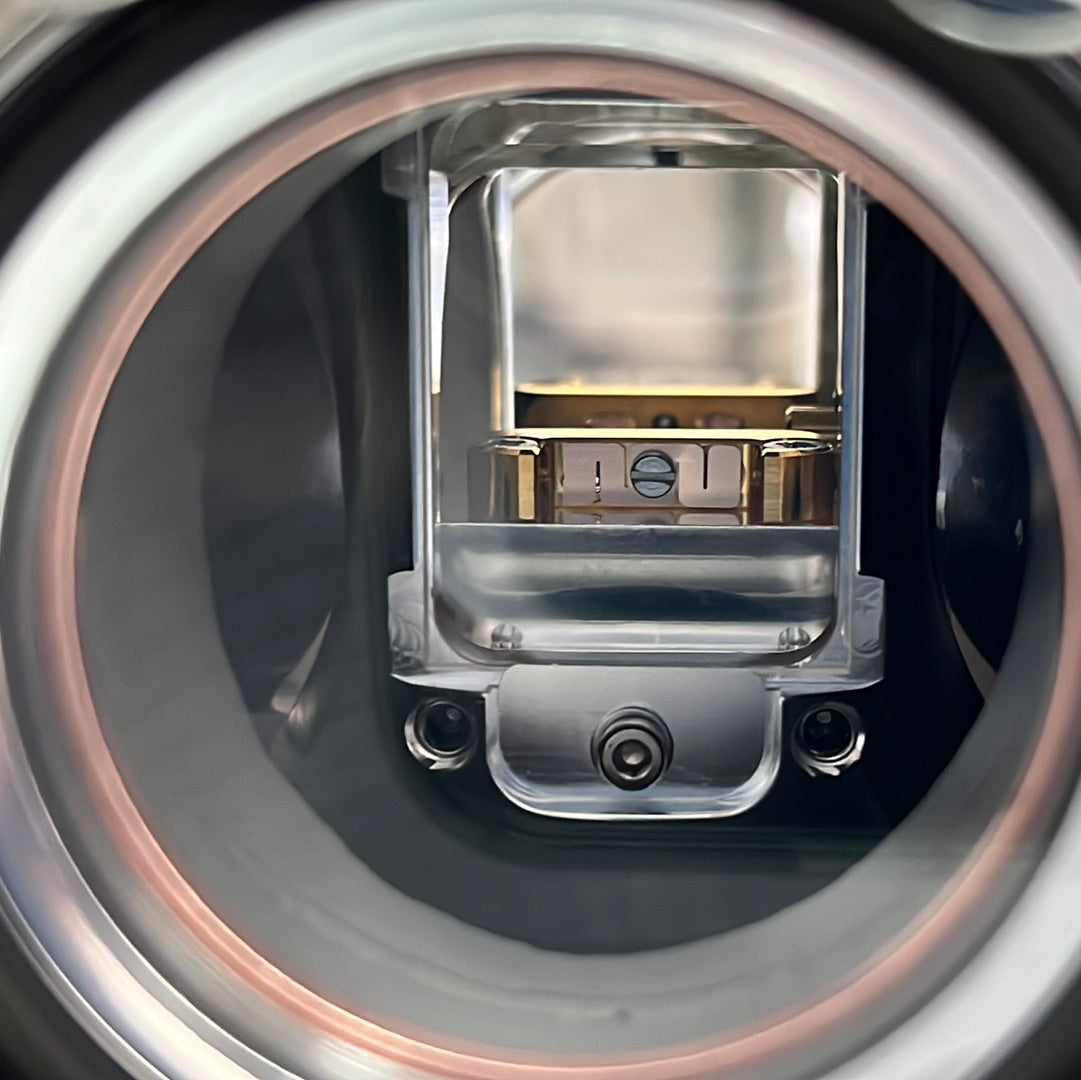

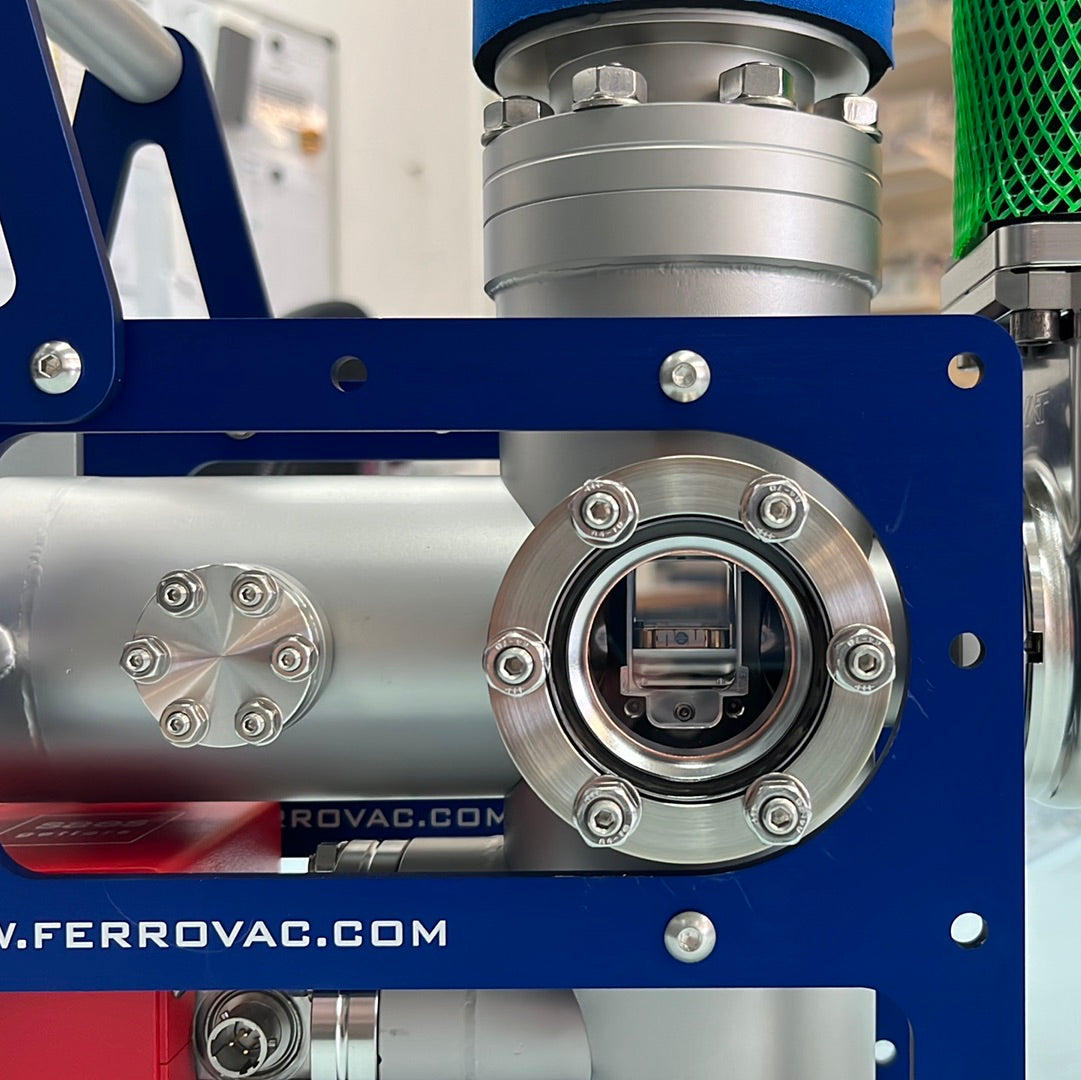

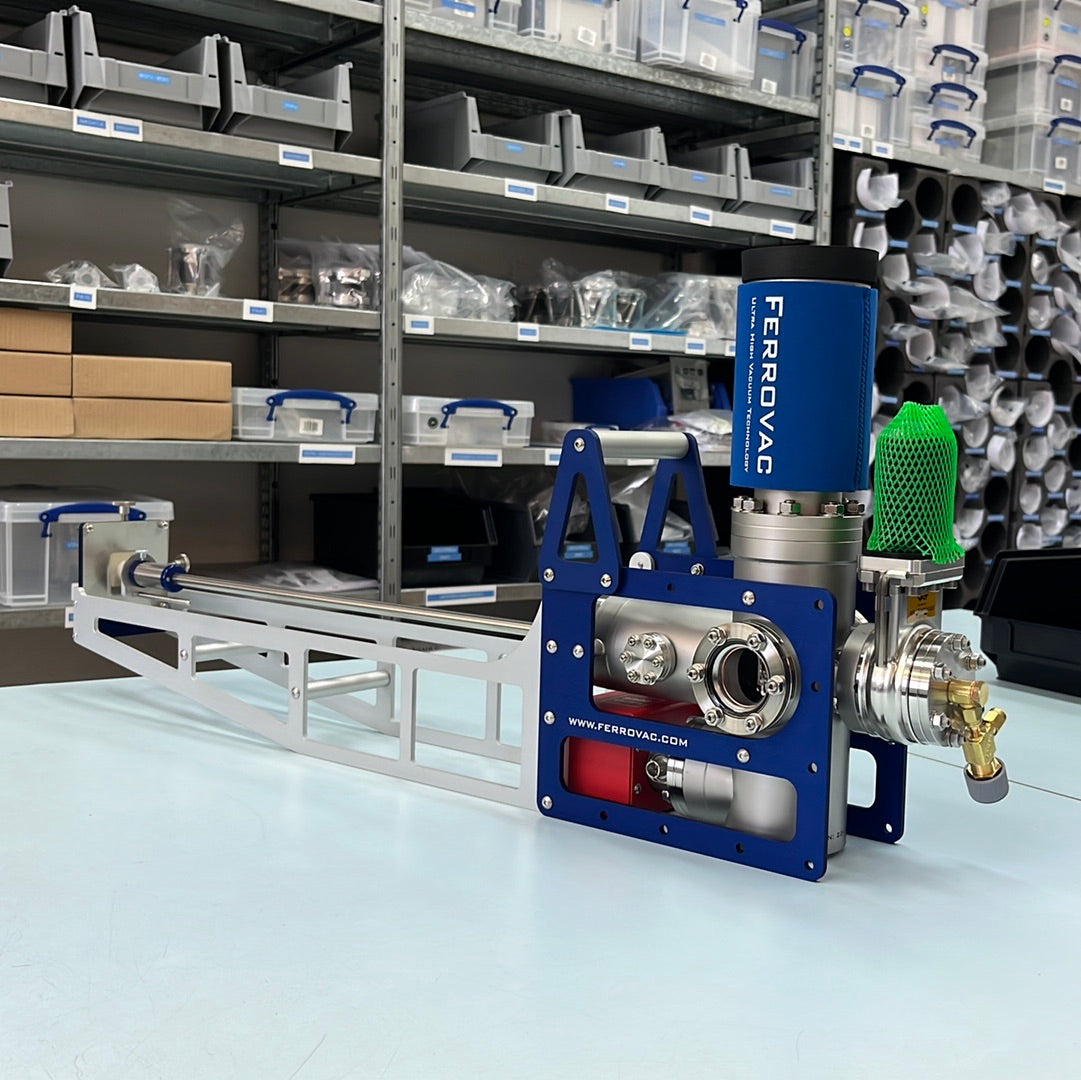

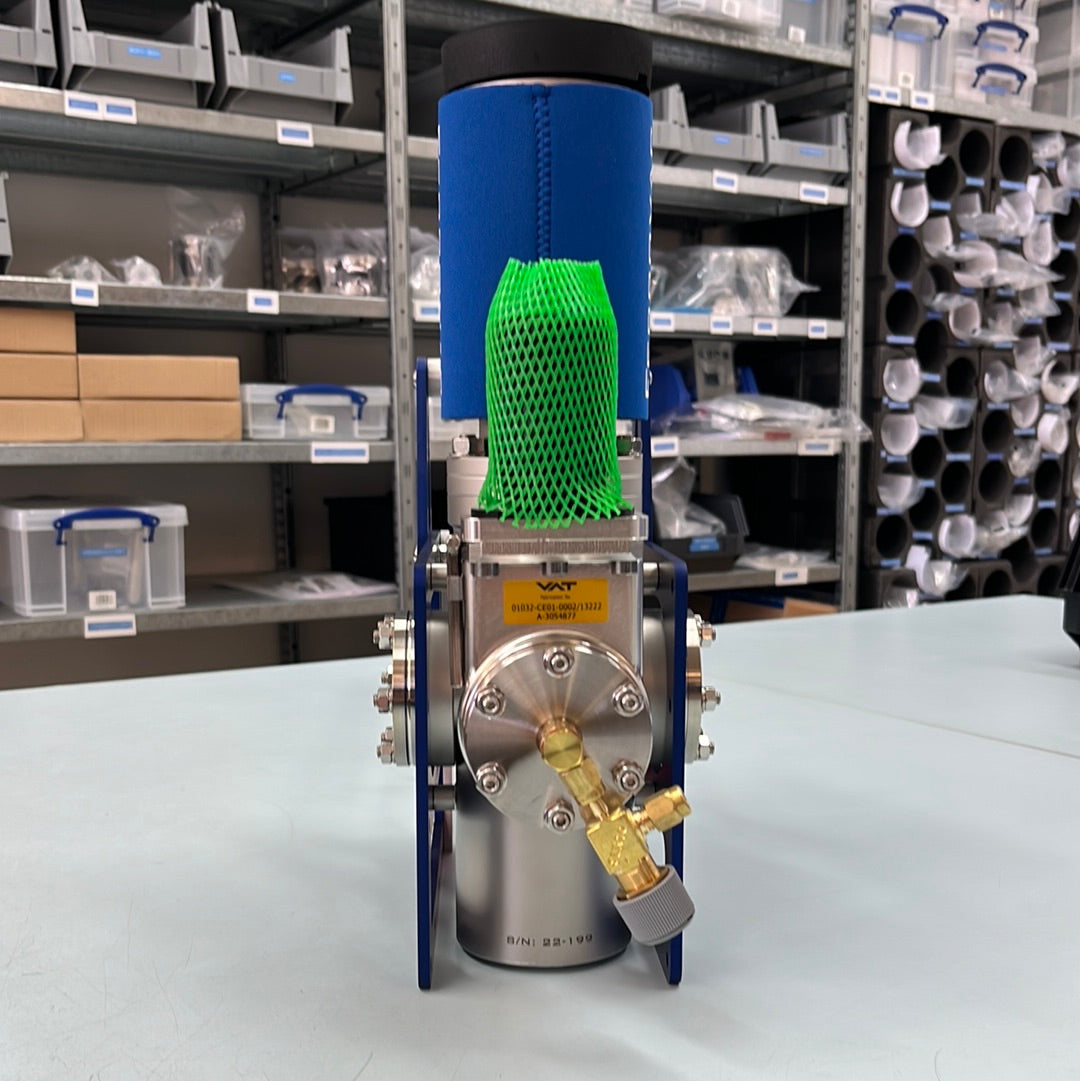

In the patented design, the sample is situated within a customized cryo shield inside the suitcase in order to be protected from contamination coming off the chamber walls while the suitcase is cold. Integrated viewports in the shields allow for observation of the sample inside.

For easy transfer of samples into your system, the cryo suitcase can either be mounted directly to your loadlock or via our UHV Suitcase Docking Stations. Docking solutions for a variety of analytical and preparation instruments are readily available. Please contact to discuss your requirements for instrument adaptations.

The high voltage for the ion-pump element is delivered by the rechargeable, battery-driven power supply. The vacuum level is shown directly on the display. The NEG element can be activated with our included controller.

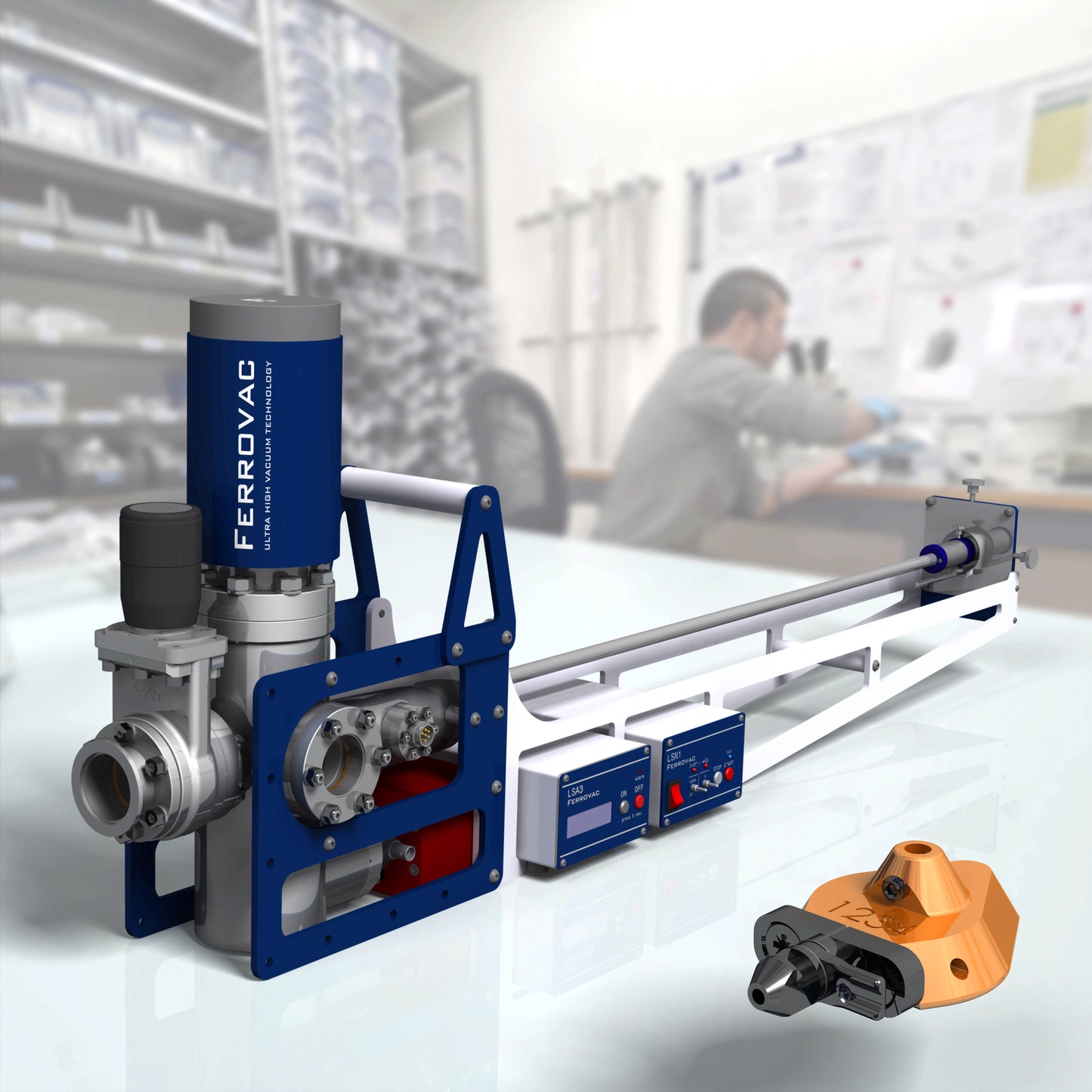

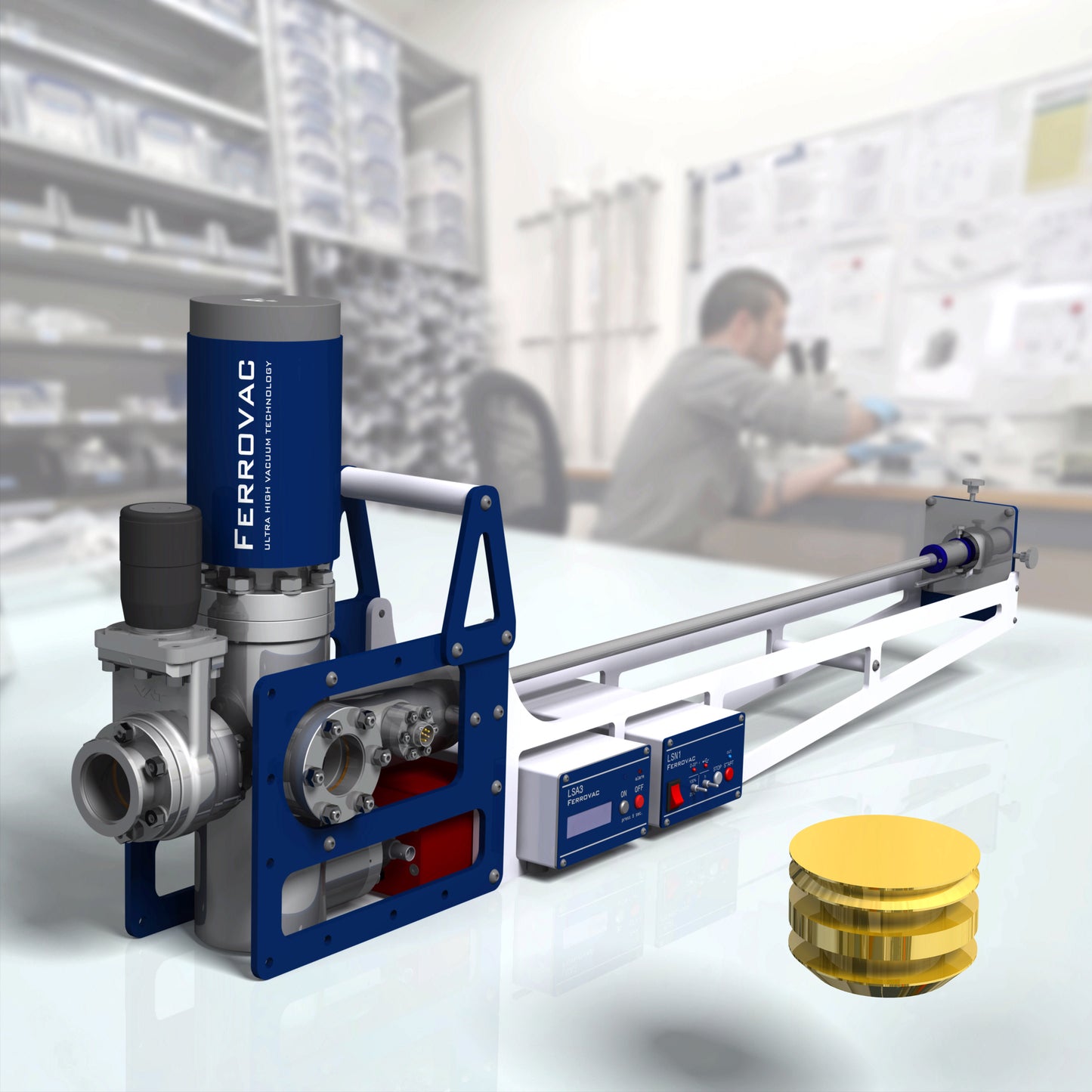

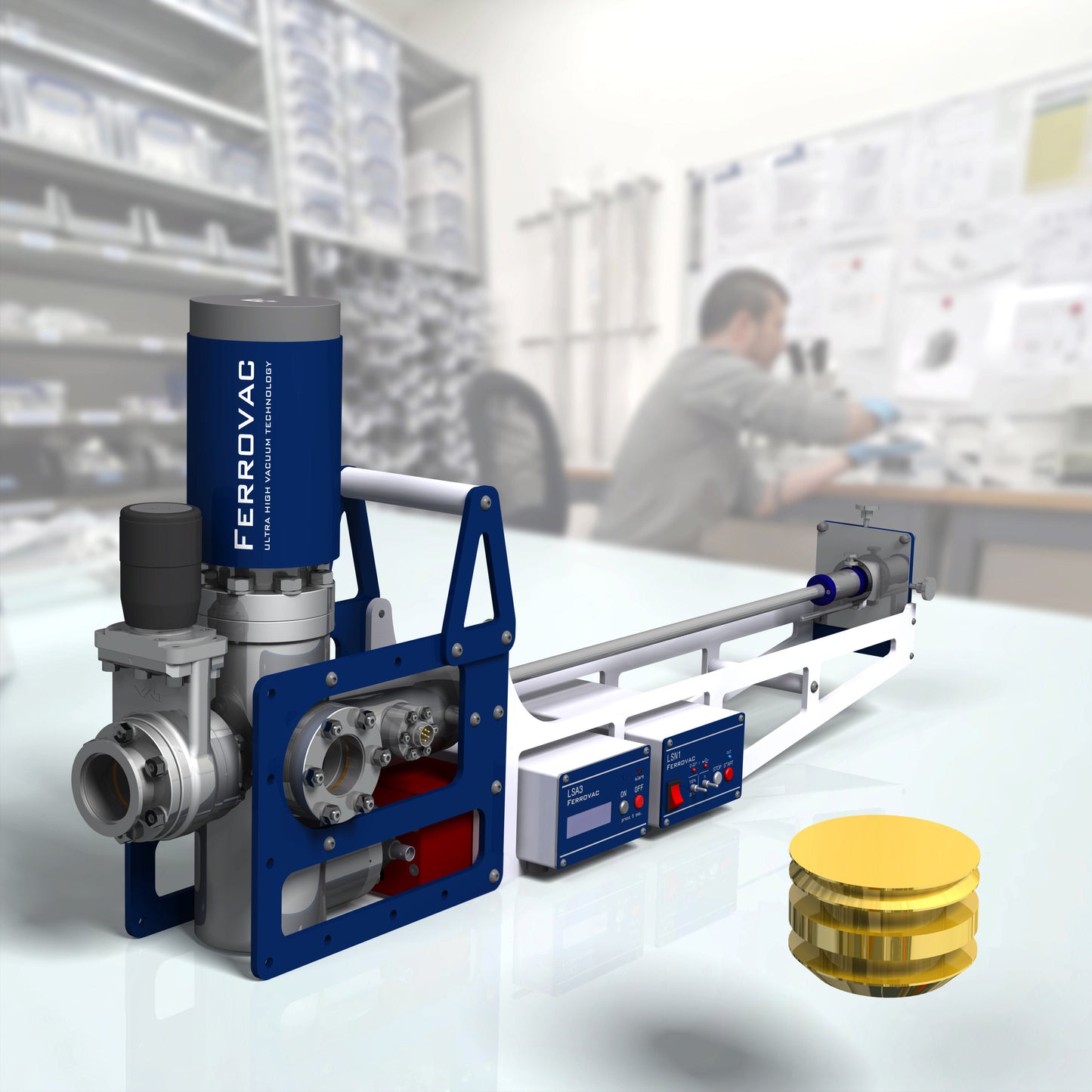

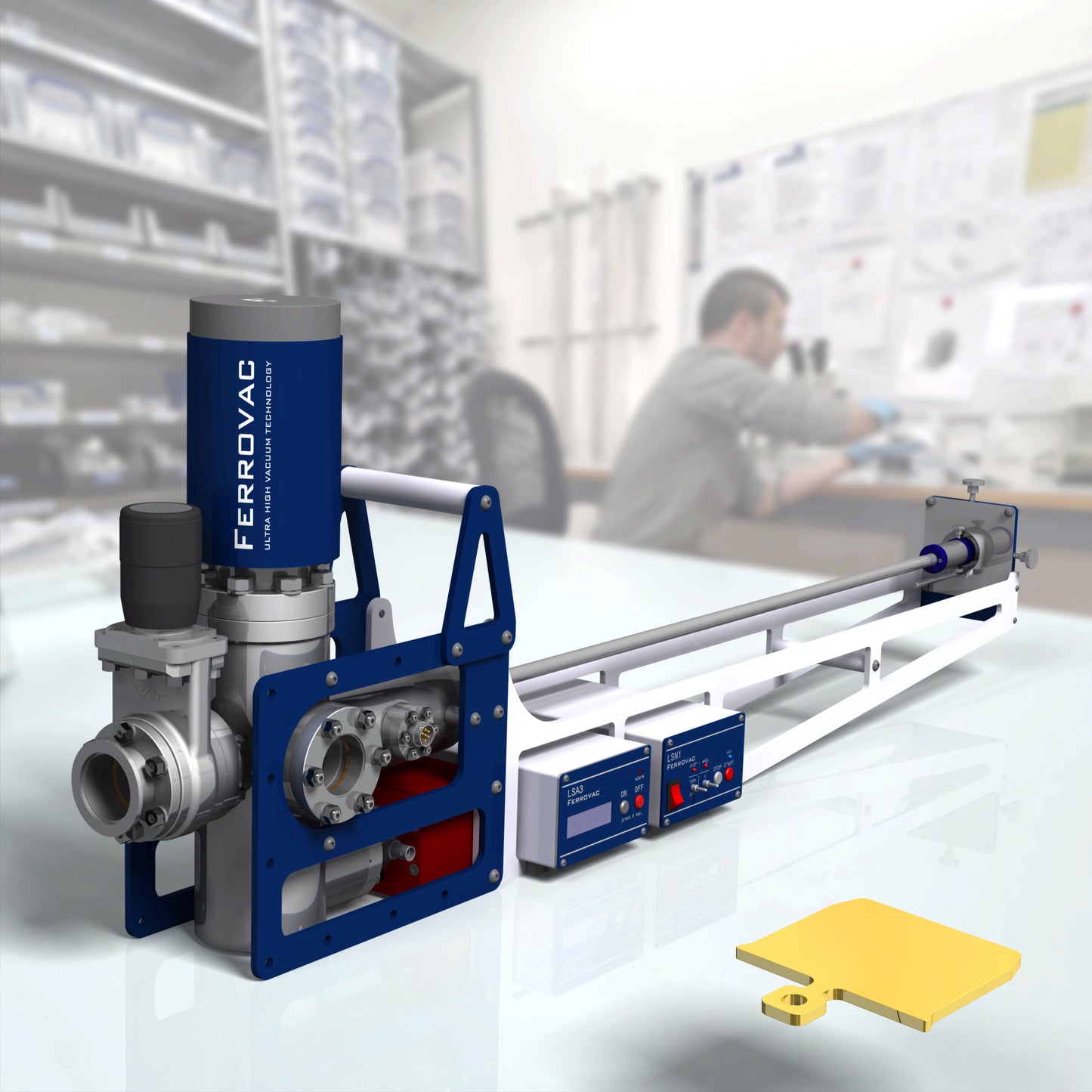

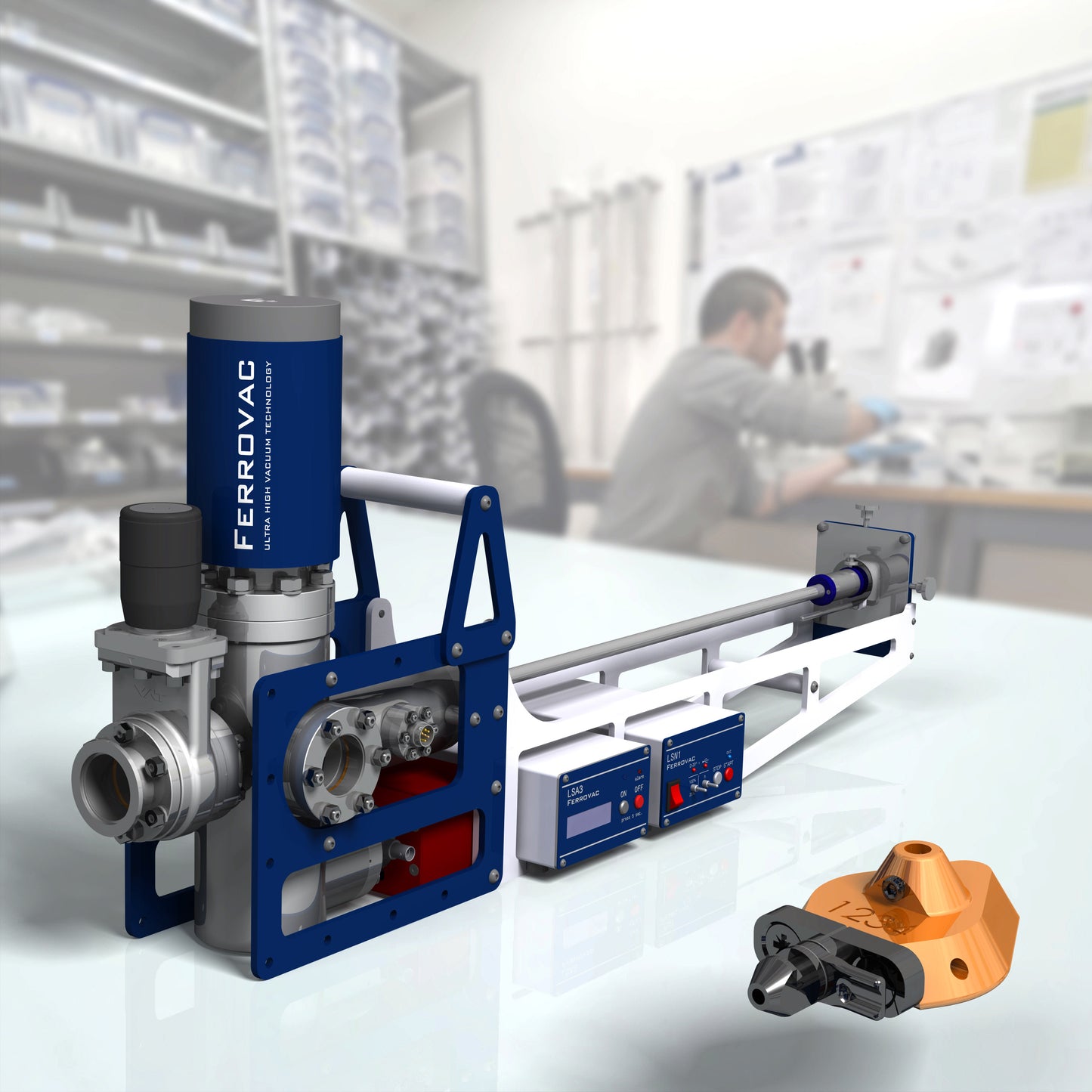

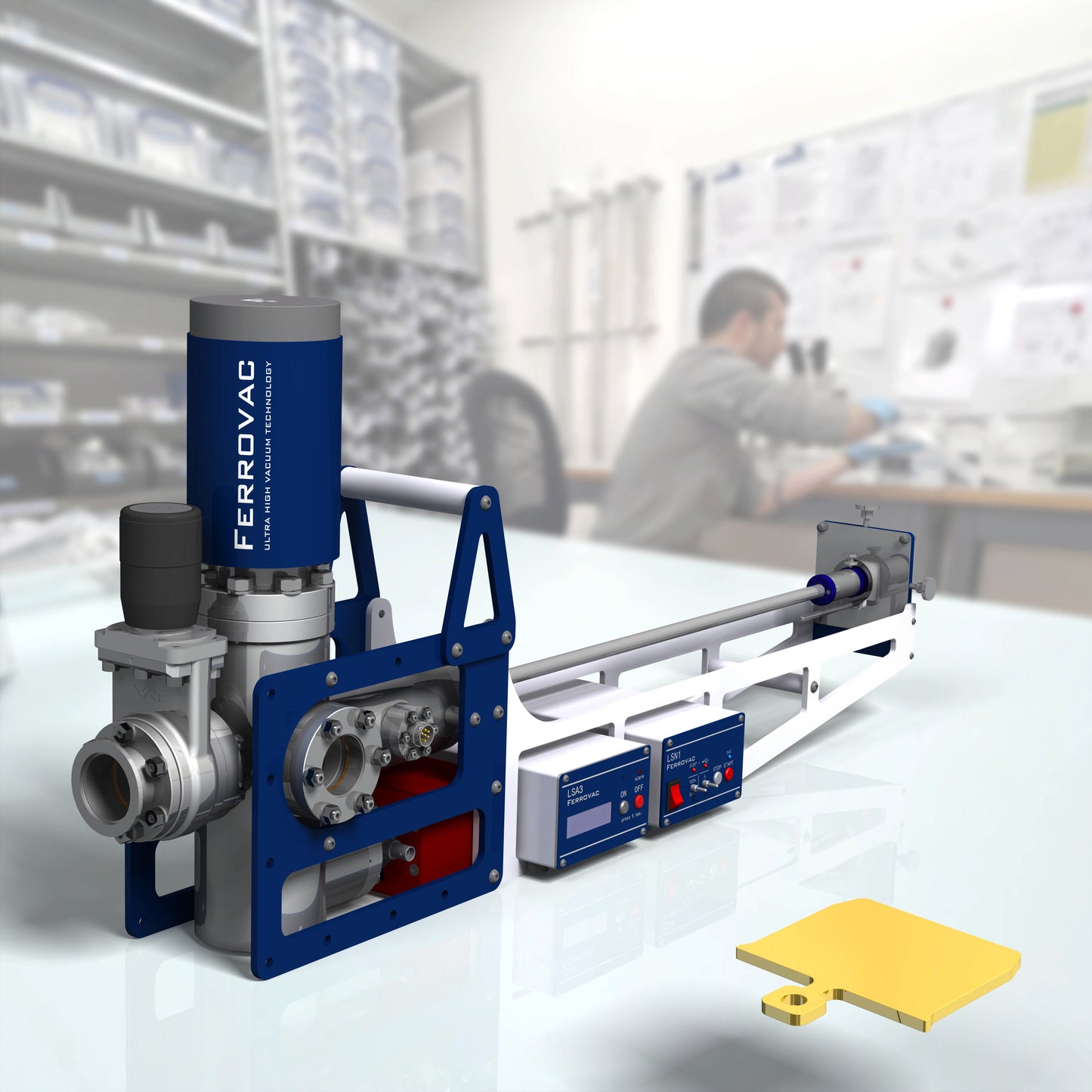

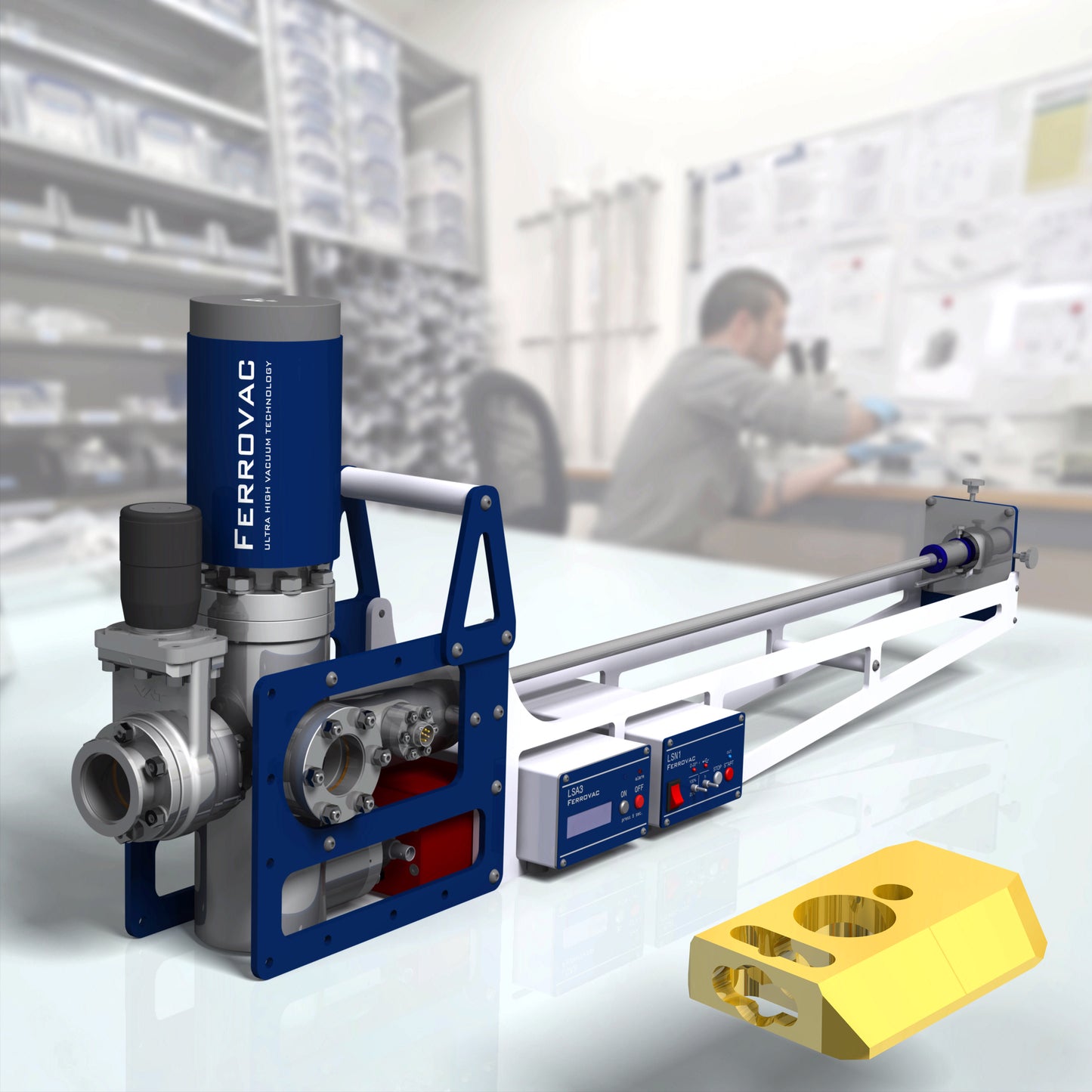

UHVCTS complete suitcase package. Available for Atom Probe Puck, Dove Tail Cryo-Shuttles, Kratos Puck and Flag Style Sample Holder.

  • includes cryogenic sample grabber and receptacle with thermal contact to LN2 cooled inner shields
  • LN2 Dewar and inner thermal shielding of the UHV chamber

  • single shaft WM40 wobblestick manipulator with support rails and fine XY alignment
  • DN40CF gate valve with removeable extra-compact adapter to DN40KF
  • NexTorr D200-5 combined Neg-Ion pump
  • LSA3 controller with pressure and temperature readout
  • LSN1 controller for NEG activation
  • full set of controller cables
  • bakeout tent for UHV suitcase
  • bakeout heater for UHV suitcase
  • flightcase for NexGeneration UHV Suitcase

The suitcase is delivered under Ultra High Vacuum, ready for immediate use.


Restrictions exist for Sample type (grabber & receptacle) Atom Probe Puck.

  1. Customer may NOT use the device as an accessory, option or upgrade to CAMECA Atom Probe Tomography (APT or 3D Atom Probe) instrument.
  2. Customer must NOT be a manufacturer of APT devices.
  3. The device may NOT be passed on to third parties without the prior written consent of Ferrovac AG.
  4. A description of the intended use must be submitted to UHV Store GmbH.
The four points above must be confirmed in writing by the customer in advance.
