UHV Suitcase Package for Room-Temperature Sample Transfer
UHV Suitcase Package for Room-Temperature Sample Transfer
Couldn't load pickup availability

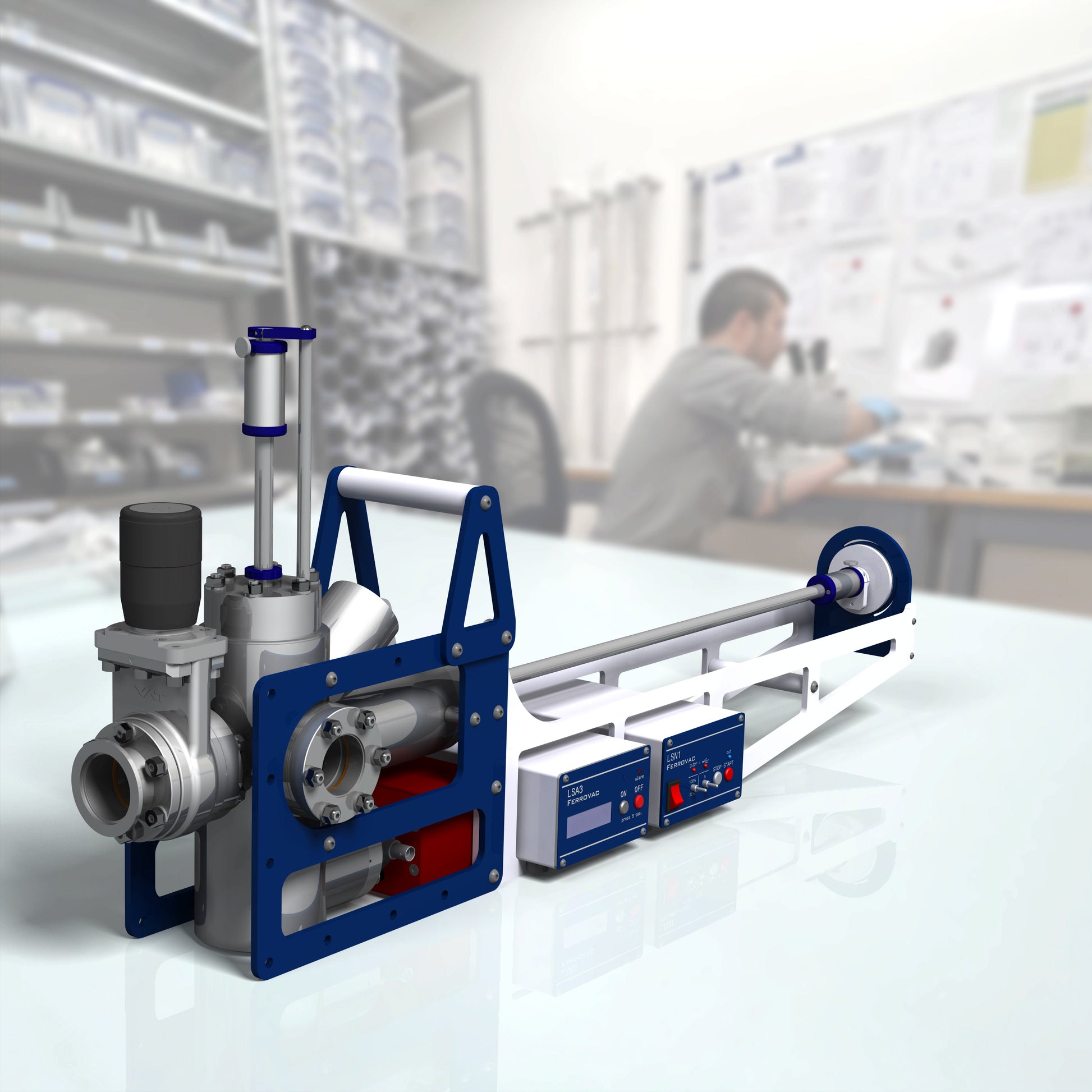

The Ultra-High Vacuum (UHV) Suitcase Package for Room-Temperature Sample Transfer is a portable, fully equipped vacuum system designed for the safe transport of surface-sensitive samples between compatible UHV instruments and laboratories.
The system combines a compact vacuum chamber, integrated sample manipulation, sample storage and battery-powered pumping technology in a transportable package. Its design allows samples to be transferred between instruments without exposure to atmospheric conditions.
Vacuum System
The UHV Suitcase incorporates a SAES NEXTorr Z200 combined Non-Evaporable Getter (NEG) and ion pump, providing efficient ultra-high vacuum pumping in a compact configuration.
The NEXTorr Z200 combines high-performance NEG pumping with a sputter ion pump. The NEG element provides a nominal initial hydrogen pumping speed of 290 l/s, while the ion pump provides pumping for gases not effectively captured by the NEG element.
The rechargeable LSA3.1 battery-powered ion pump controller supplies the high voltage required for ion pumping and provides vacuum pressure monitoring during transport.
A separate LSN1 NEG activation controller enables controlled activation of the getter element when required.
The integrated pumping system maintains ultra-high vacuum conditions without requiring a continuously connected external power supply.
Sample Handling System
The suitcase is equipped with a single-shaft WM40 Wobblestick manipulator for controlled sample transfer between the transport chamber and compatible UHV instruments.
The manipulator includes support rails and XY alignment for precise positioning during sample handling.
An integrated linear/rotary feedthrough with a configurable sample storage stack provides dedicated parking positions for sample holders during transport.

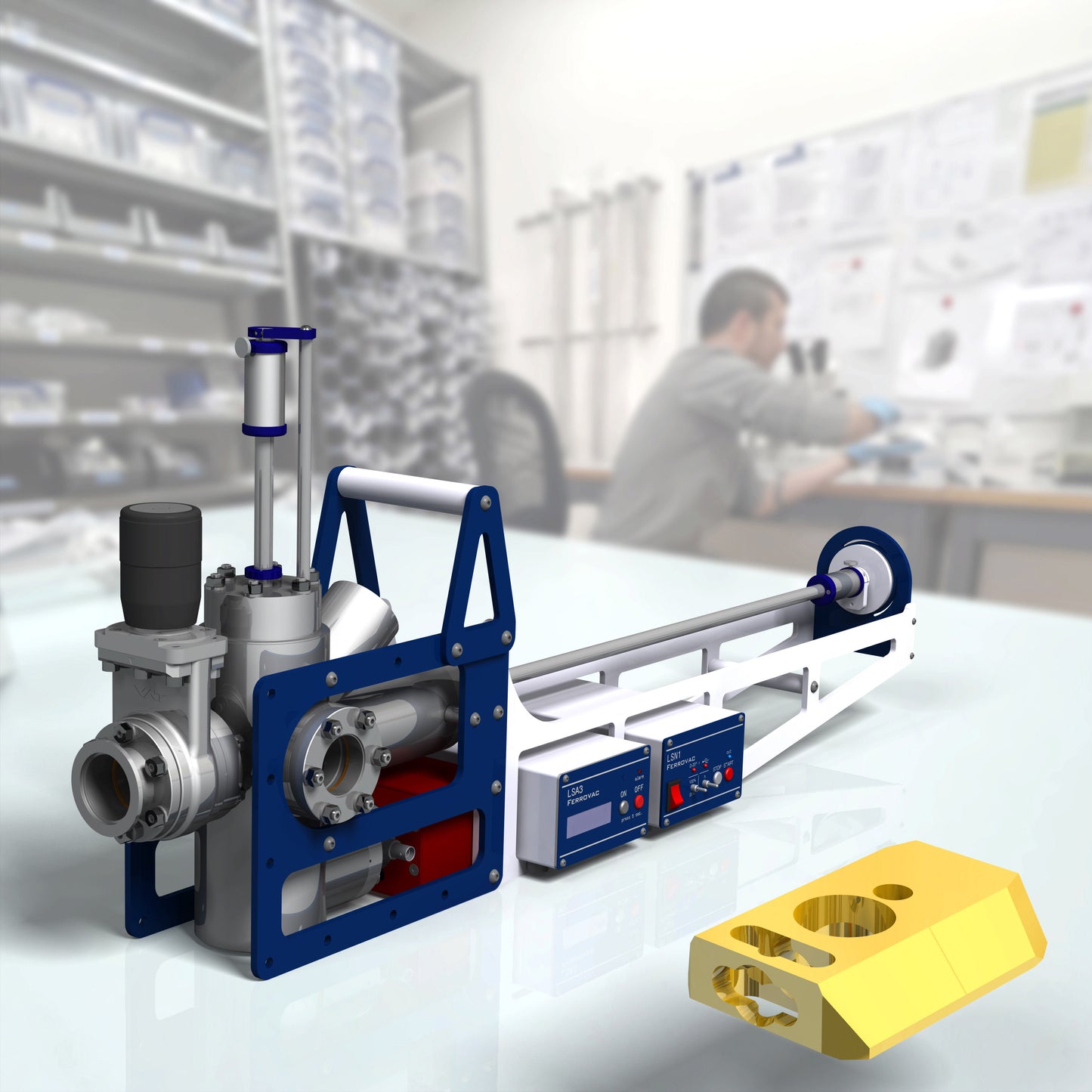

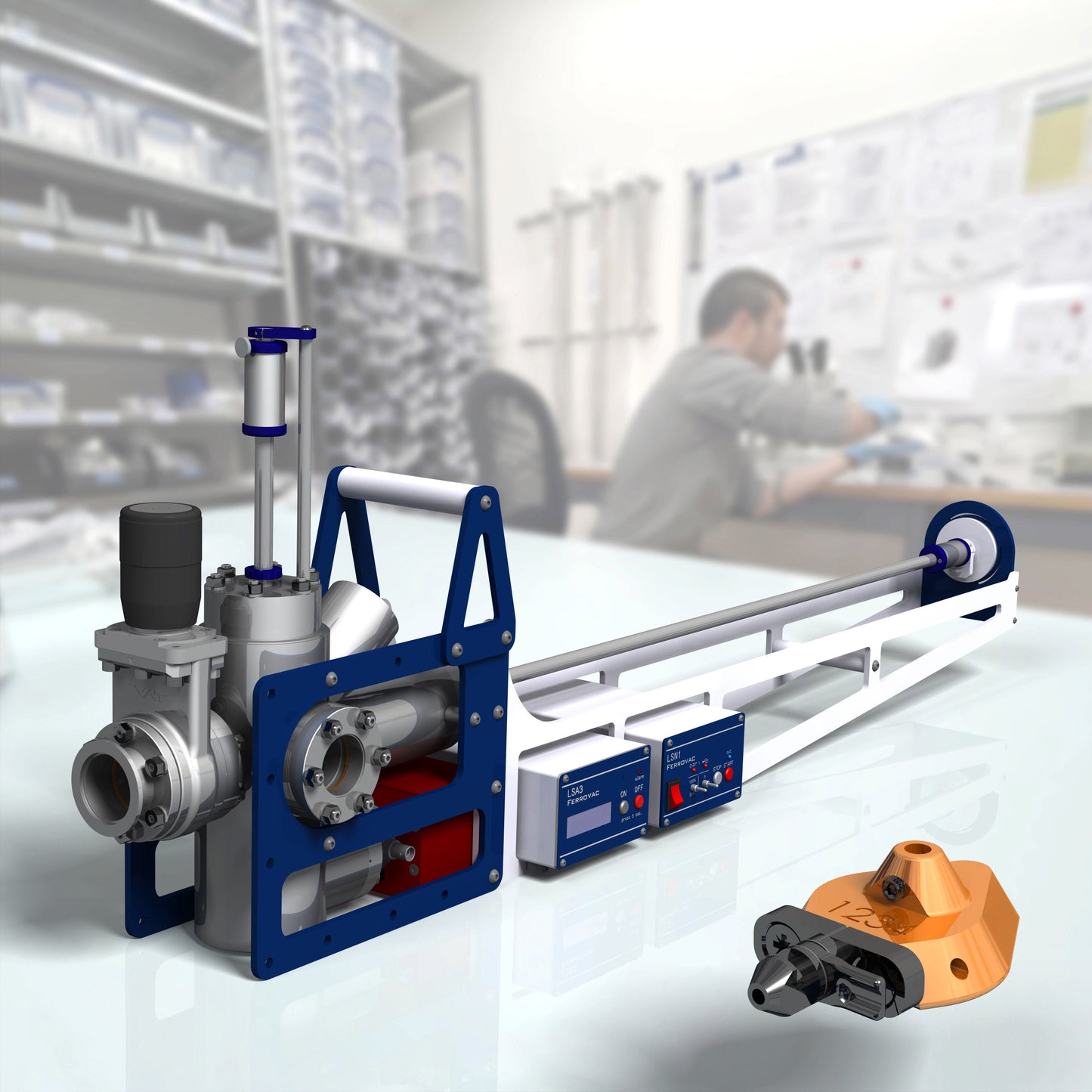

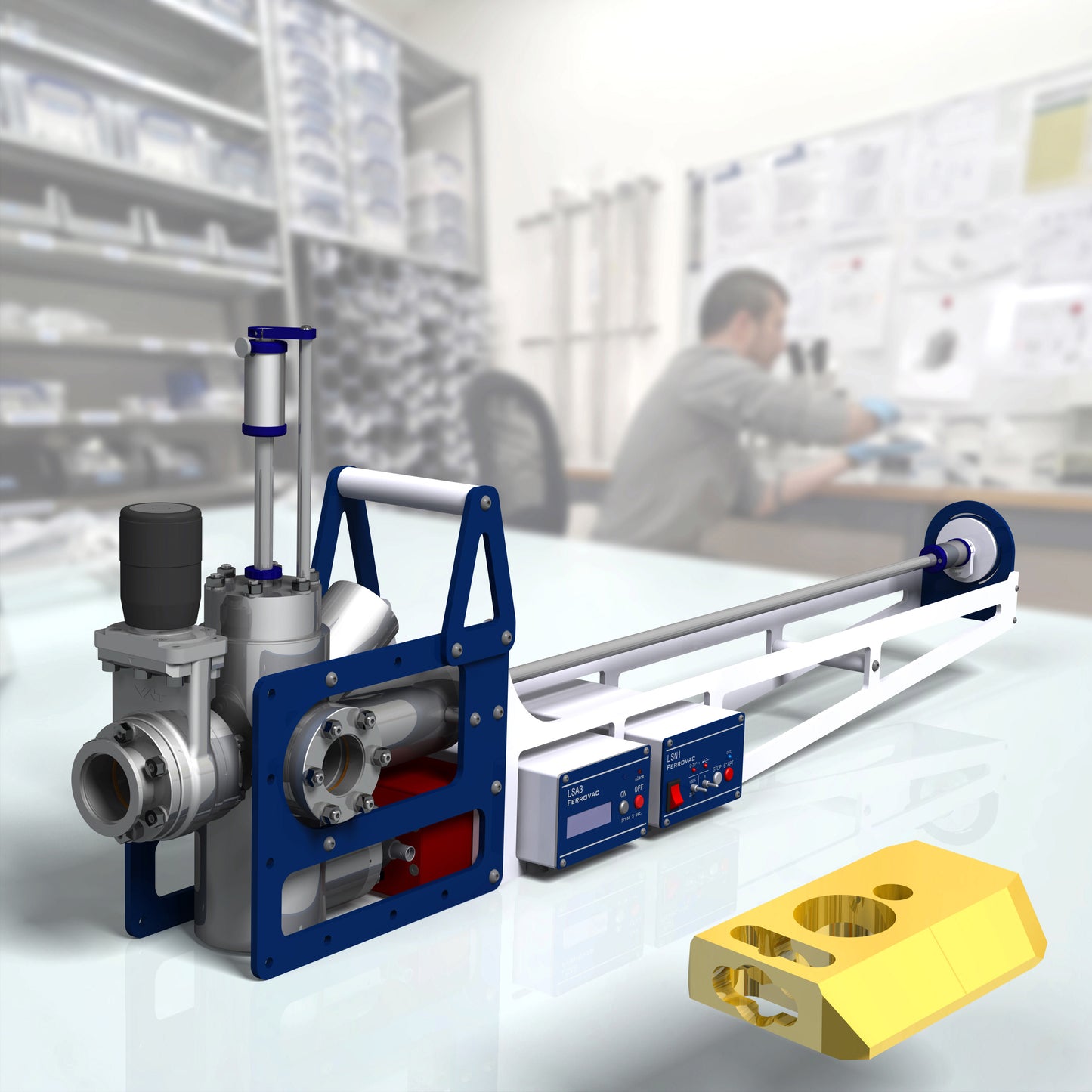

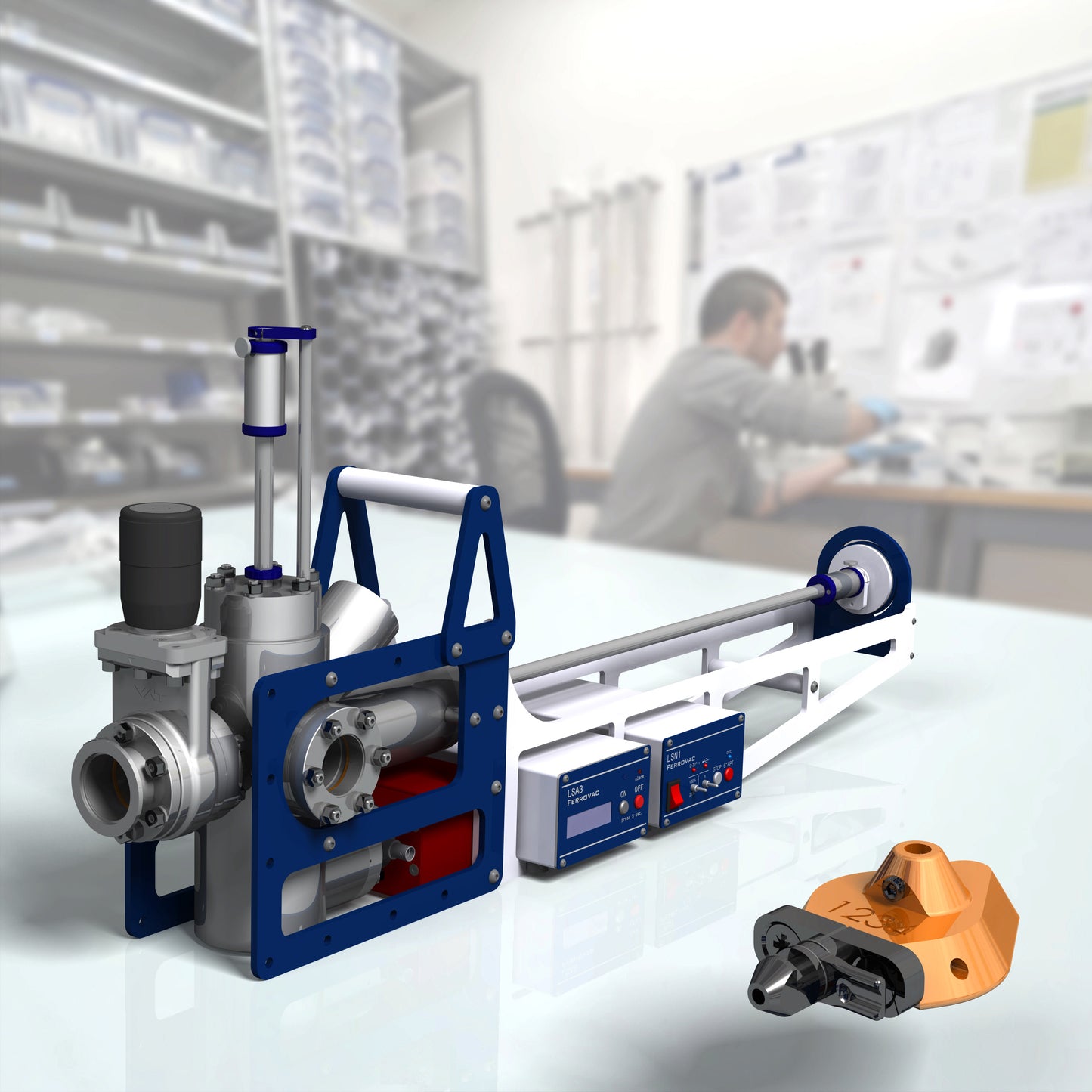

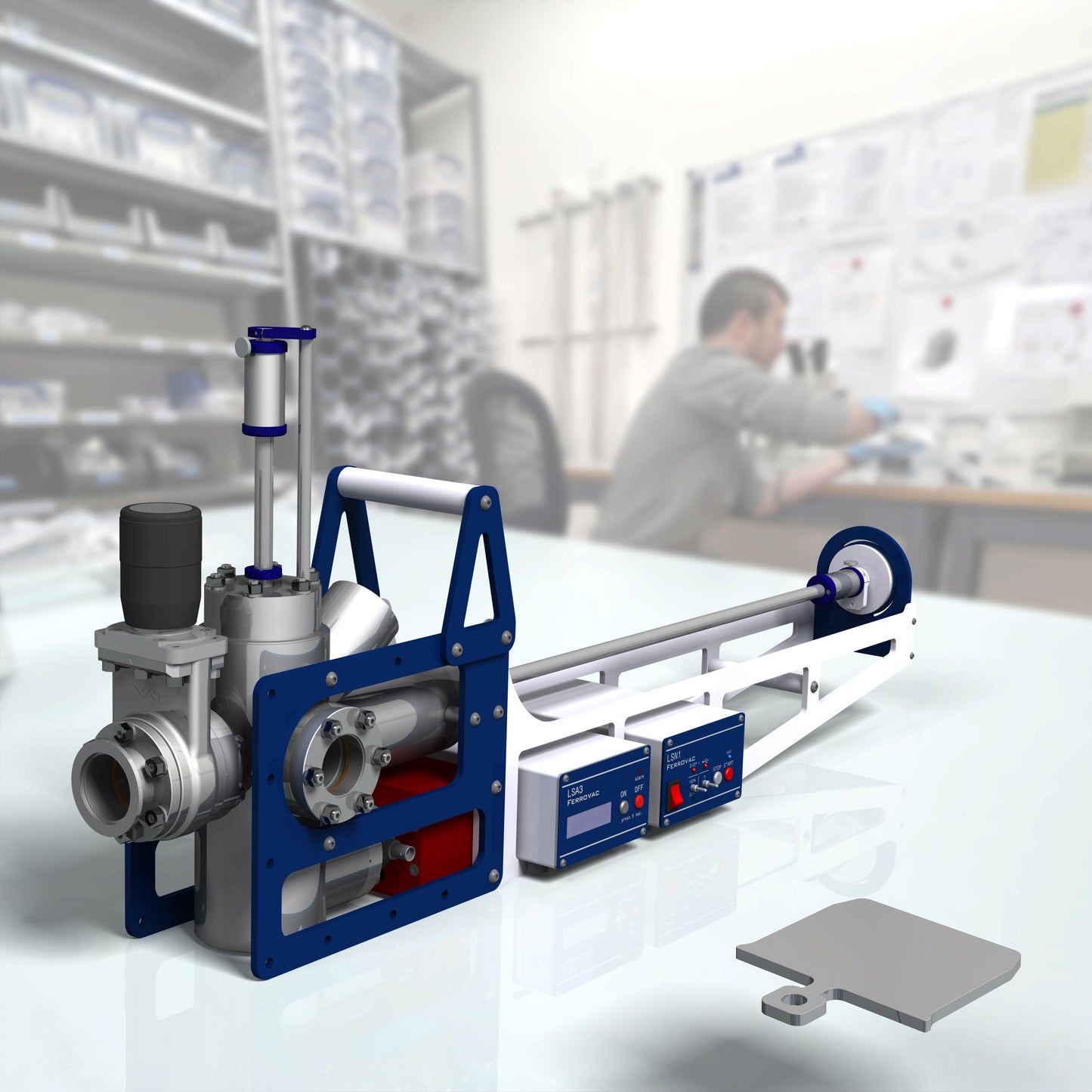

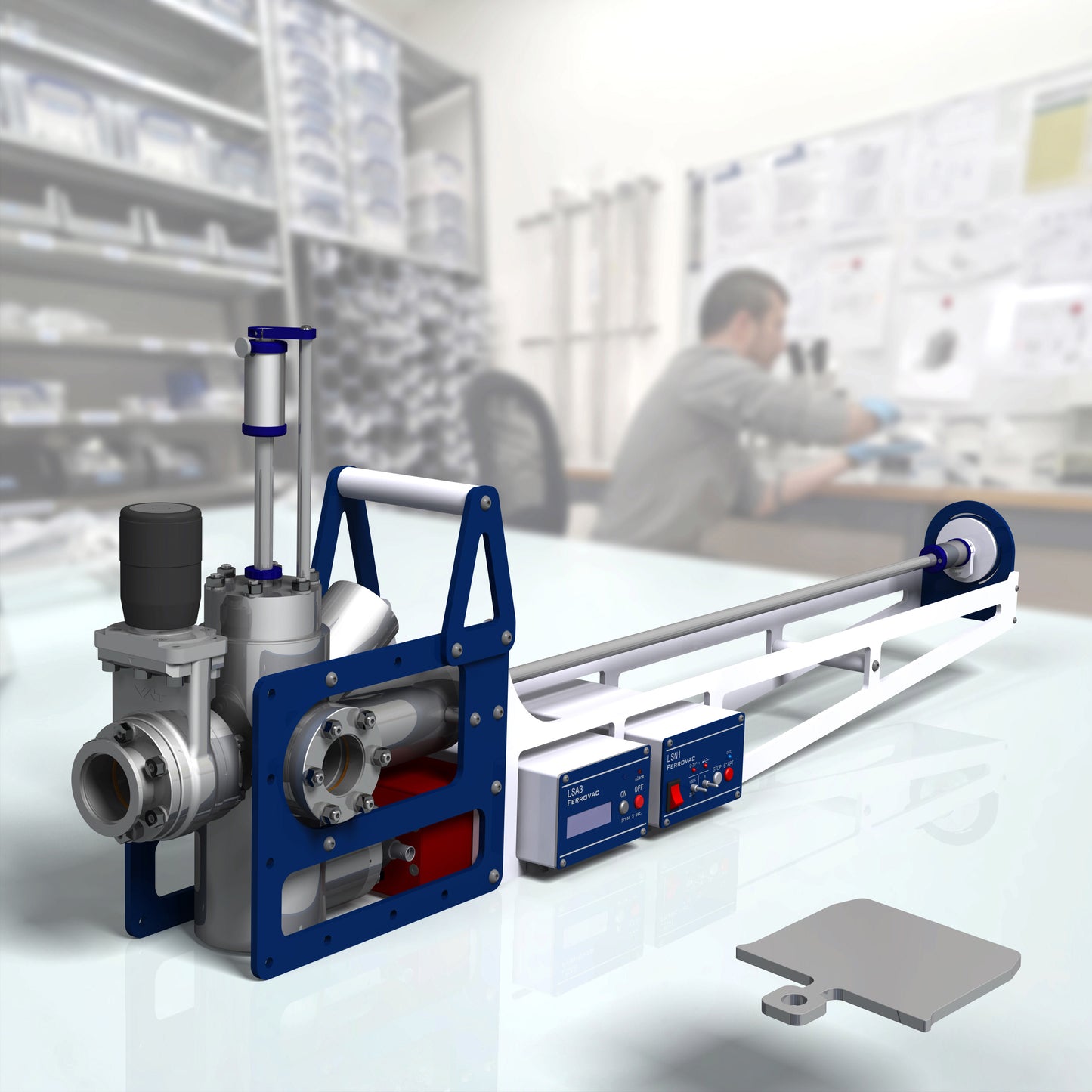

The system is available with suitable grabbers and storage configurations for Flag Style Sample Holder plates and Dovetail Cryo-Shuttles.
Two manipulator lengths are available, providing approximately 335 mm or 535 mm of extended reach from the gate valve flange, depending on the selected configuration.
The storage capacity and available insertion depth depend on the selected sample handling system.
A rear-view welded viewport enables visual monitoring during sample manipulation.
Vacuum Connection
The suitcase includes a DN40CF gate valve with a removable extra-compact DN40KF adapter for connection to compatible UHV systems.
The design supports integration with suitable loadlocks and UHV docking stations, allowing samples to be transferred between instruments while preserving vacuum conditions.
Bakeout and Transport
The package includes a bakeout tent and an electric bakeout heater for thermal conditioning of the assembled vacuum system.
The maximum recommended bakeout temperature for the assembled suitcase is 150 °C.
A rigid protective flightcase provides safe handling and transport between laboratories and facilities.
Included Equipment
The package includes the UHV Suitcase vacuum assembly, WM40 single-shaft manipulator with the selected sample grabber, configurable sample storage system, SAES NEXTorr Z200 combined NEG/ion pump, rechargeable LSA3.1 ion pump controller, LSN1 NEG activation controller and the necessary controller cables.
A DN40CF gate valve, removable compact DN40KF adapter, rear-view welded viewport, support rails, XY alignment, bakeout tent, bakeout heater and protective transport flightcase are also included.
The system is supplied under ultra-high vacuum conditions, ready for integration with a compatible transfer system.
Technical Information
Application: Room-temperature transport and transfer of surface-sensitive samples under ultra-high vacuum conditions.
Vacuum Pump: SAES NEXTorr Z200 combined NEG/ion pump.
NEG Pumping Speed: 290 l/s for hydrogen (nominal initial value).
Power Supply: Rechargeable LSA3.1 battery-powered ion pump controller.
NEG Activation: Separate LSN1 controller.
Sample Manipulation: WM40 single-shaft Wobblestick with XY alignment.
Manipulator Reach: Approximately 335 mm or 535 mm from the gate valve flange, depending on configuration.
Sample Storage: Configurable linear/rotary feedthrough with sample storage stack.
Sample Compatibility: Flag Style Sample Holder plates and Dovetail Cryo-Shuttles, depending on the selected configuration.
Vacuum Connection: DN40CF gate valve with removable compact DN40KF adapter.
Maximum Bakeout Temperature: 150 °C.
Transport Protection: Rigid protective flightcase.
Configuration Options

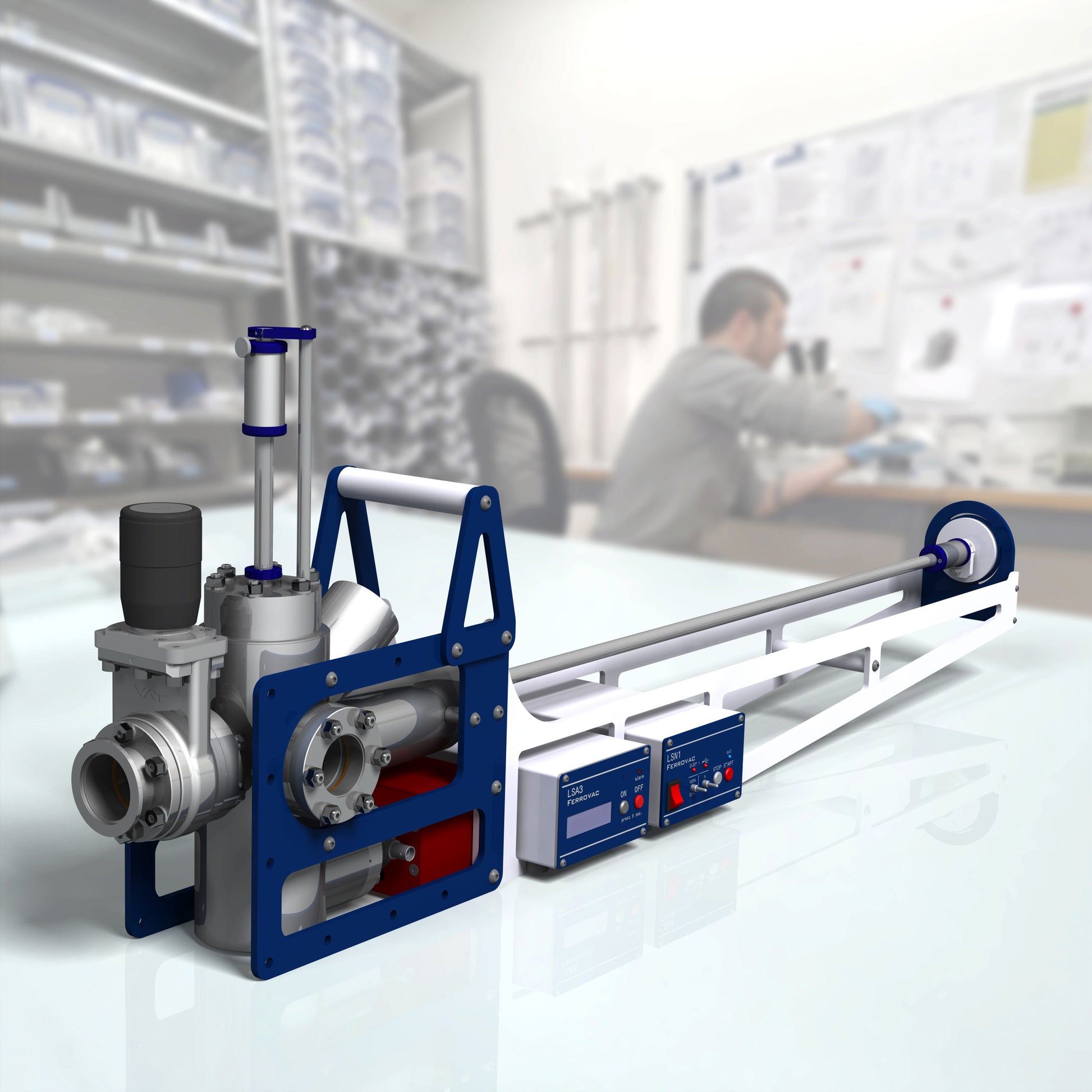

The UHV Suitcase is available in standard and Long-Throw configurations, offering different sample transfer lengths and sample holder compatibility.
The final sample handling configuration, storage capacity and manipulator length are determined by the selected product variant.
For customised sample holders, additional storage positions, special transfer lengths or instrument-specific docking requirements, please contact UHV Store directly.
