Ferrovac AG
DC Heating Station for SHOMDC Sample Heating Plates
DC Heating Station for SHOMDC Sample Heating Plates
Regular price
CHF 7,863.94
Regular price
Sale price
CHF 7,863.94
Unit price
/
per
Shipping calculated at checkout.
SKU: HSASOM40(DC)P
0 piece(s) in our central warehouse. 🚀
Available on back order or custom made.
Please contact UHV Store LLC to clarify
delivery time.
Couldn't load pickup availability

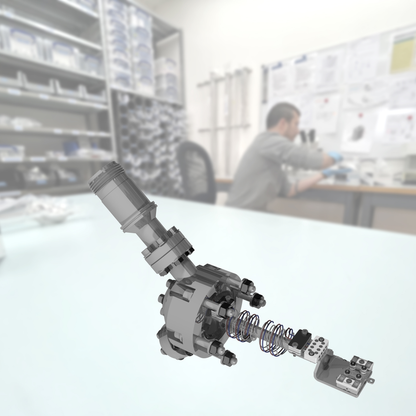

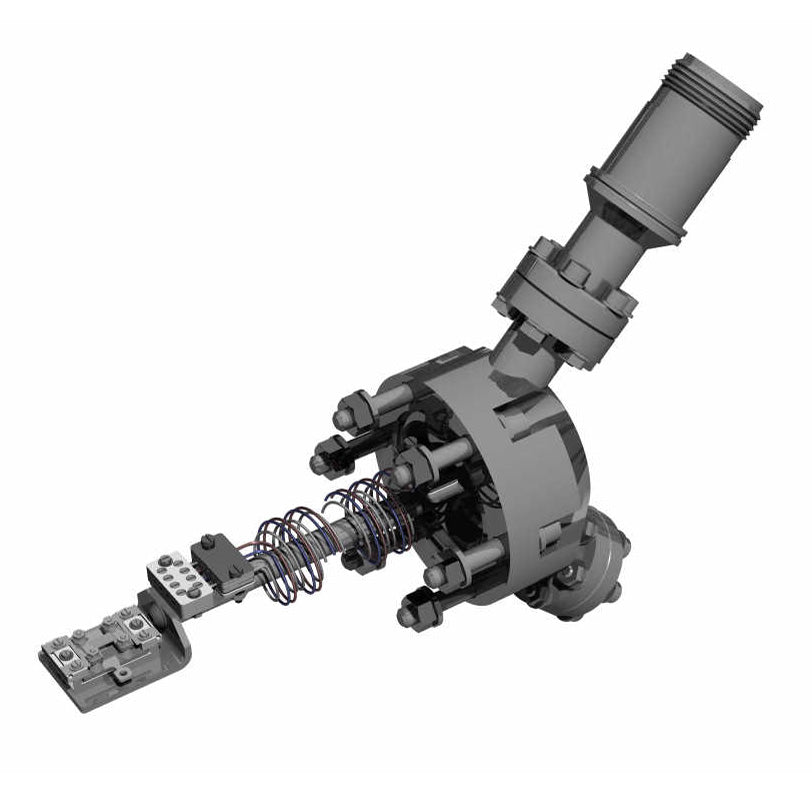

Composed of a Sample receiver with two high-current electrical contacts for DC-heating of SHOMDC sample holders, this fully configured assembly is completely mounted on a DN40CF (2.75" OD) flange, including wiring and the electrical feedthrough.
This provides complete, ready to use solution for sample heating/ annealing under UHV conditions.
- Distance from flange face to center (or surface) of sample plate: customized
- Completely mounted on DN40CF-flange, incl. wiring and electrical feedthroughs.
- Installed Thermocouple: K-type (chromel/alumel)

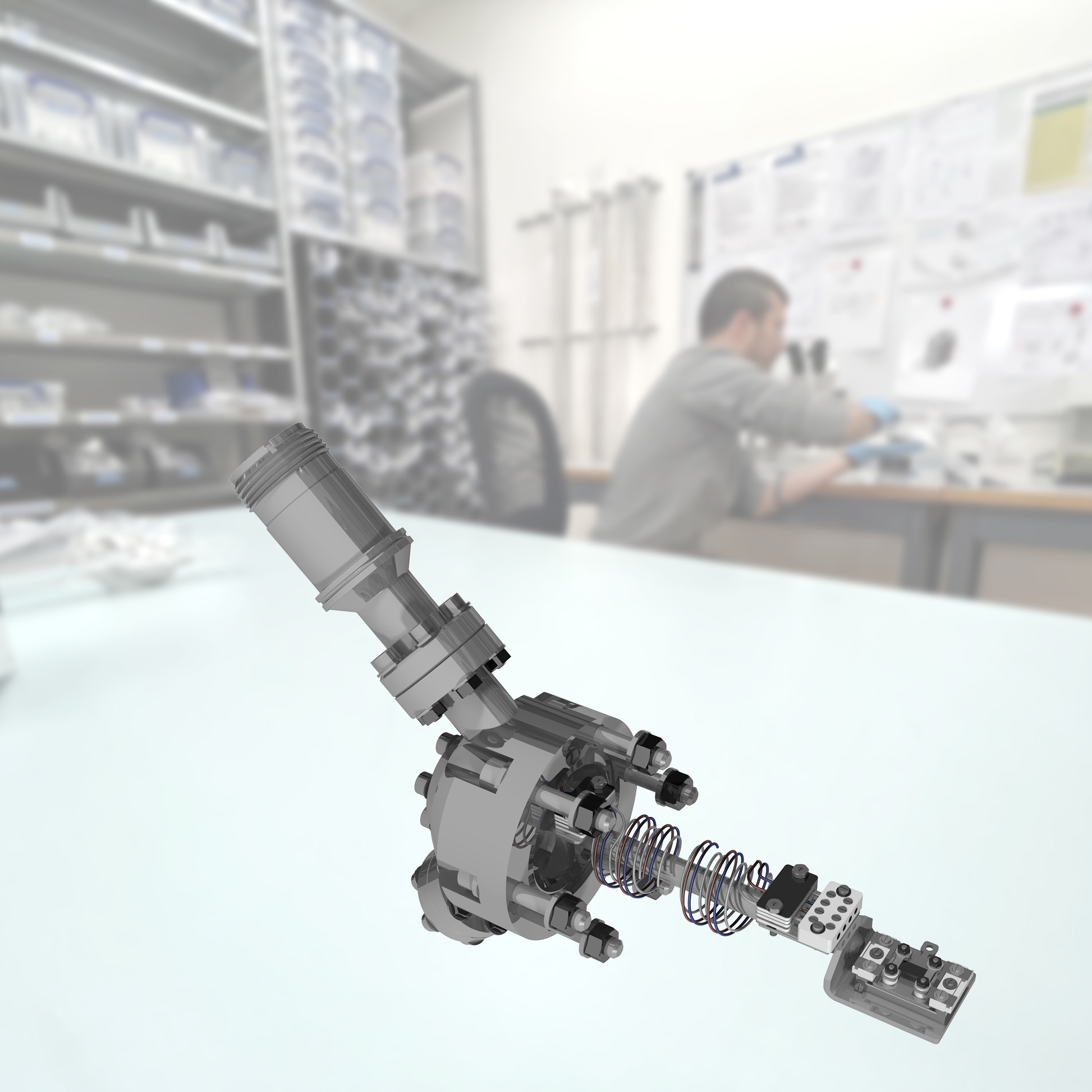

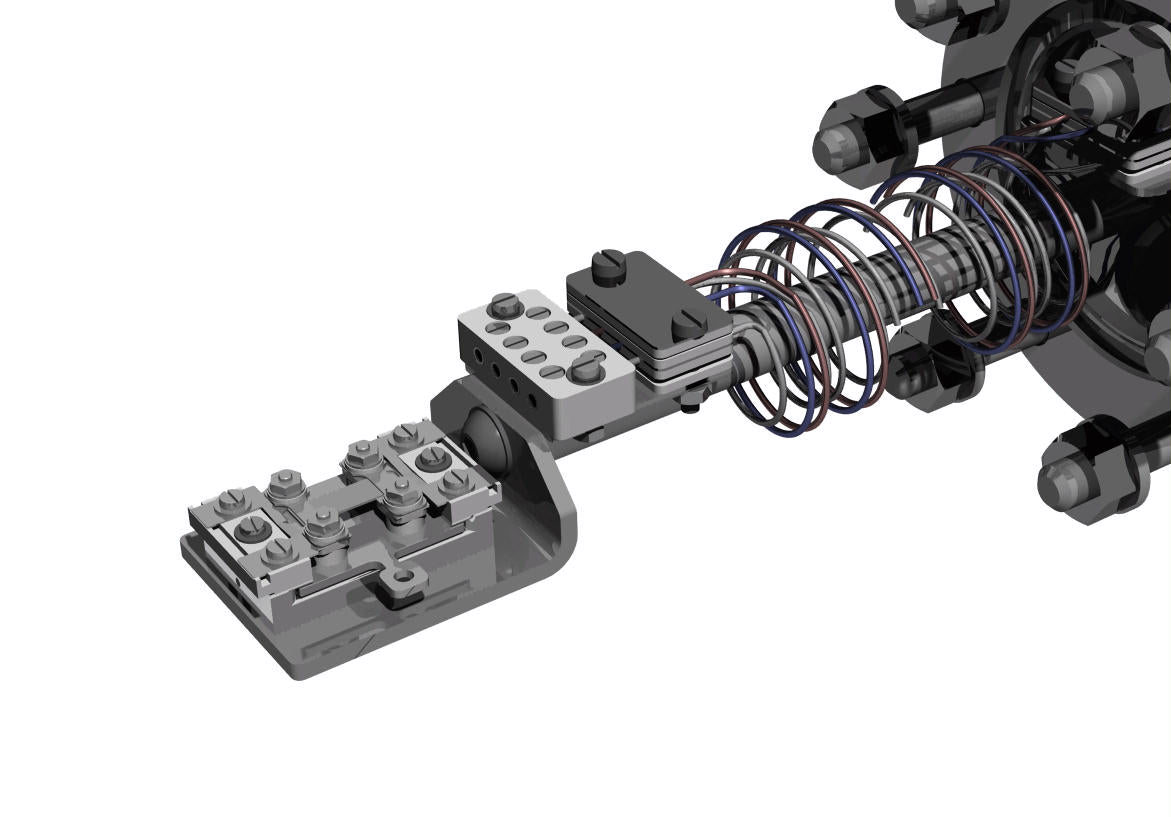

- Mounted DC Sample Plate Receiver RECOMDC:
- Receiver orientation: P (flag perpendicular to axis)
- Other options: PS (flag perpendicular to axis, straight)
- Fully UHV compatible materials:
- Spheres: Ruby
- Spring contacts, screws, washers for el. contacts: Molybdenum
- Isolators: Shapal M
- Body: Stainless steel 1.4301 (304L)
- Receiver orientation: P (flag perpendicular to axis)
- Sample Heating Plate SHOMDC:
Sample Heating Plate is NOT INCLUDED in this assembly.- Minimum sample size (l x w x h): 8 x 1 x 0.2mm
- Maximum sample size (l x w x h): 11 x 3.5 x 0.5mm
- Max. temperature: The maximum temperature depends on the material and shape of the actual sample.
- Note: The installed thermocouple (K-Type) limtis the maximum temperature to ~1300°C.
- Material: Molybdenum, Al2O3
- Both contact rails electrically isolated by Al2O3 washers
- MS type air side connector included.
- Power Supply: Not included (Recommendation: Power 150W, Voltage Range: 0-50V, Current Range: 0-5A)
- Controller: Not included
- Tolerances:
- Machined Parts: ISO 2768-m-K
