Fast Pump Down Dock with LN2 Dewar – DN40CF
Fast Pump Down Dock with LN2 Dewar – DN40CF
Couldn't load pickup availability

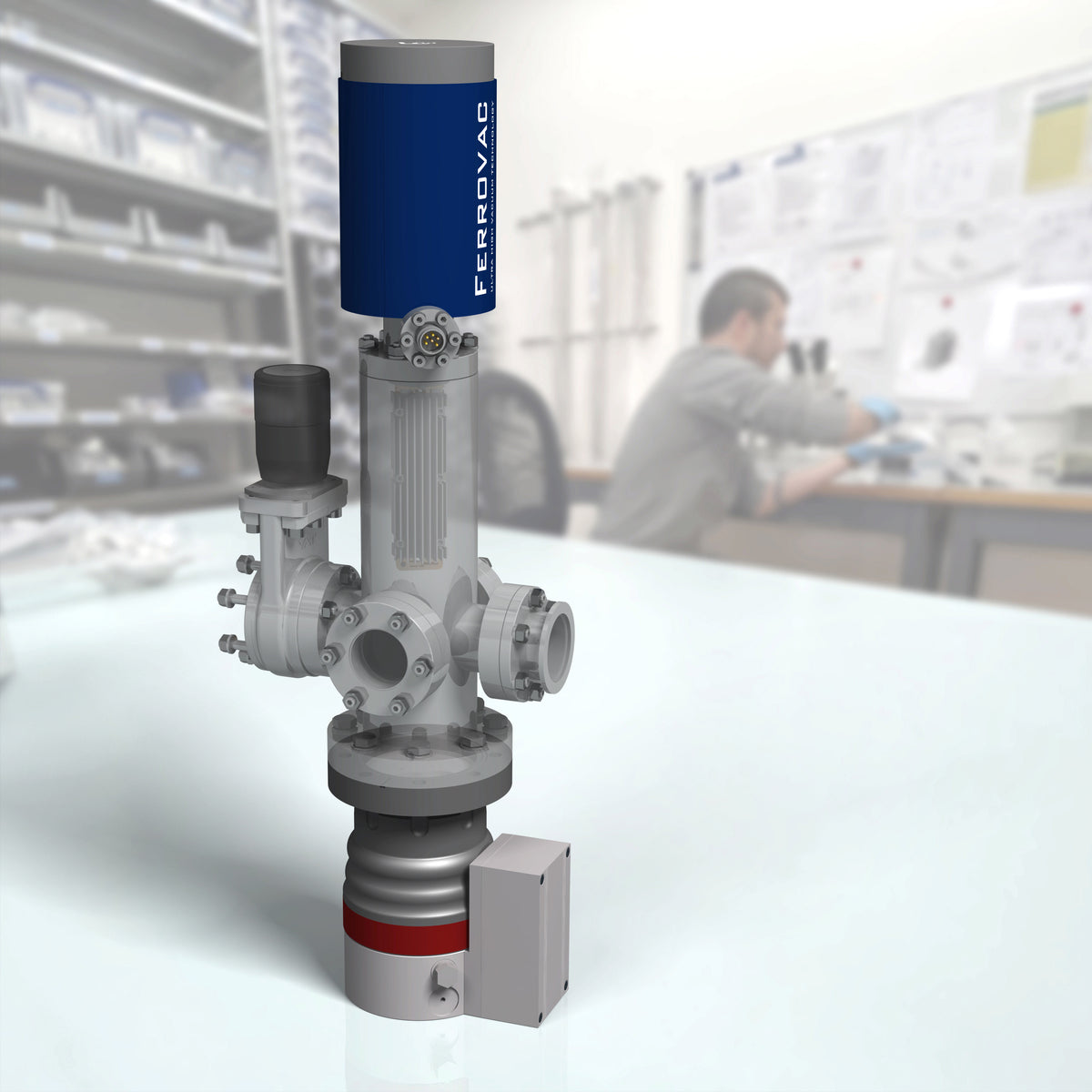

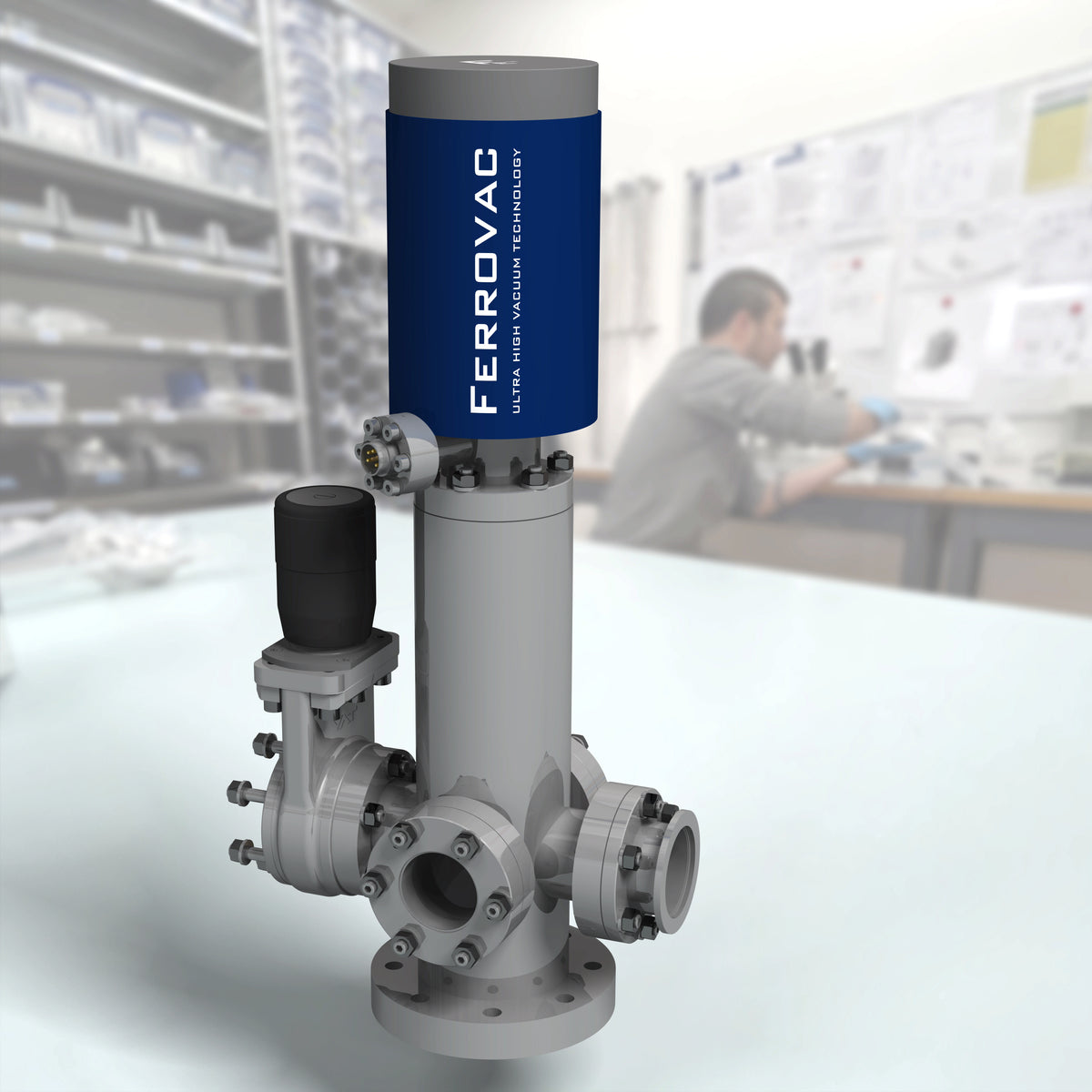

The Fast Pump Down Dock is designed for rapid sample transfer between portable UHV suitcases and stationary ultra-high vacuum (UHV) systems.
By combining turbomolecular pumping with integrated liquid nitrogen (LN2) cooling, the docking chamber enables rapid pump-down to approximately 1 × 10⁻⁸ mbar in just 30 minutes, significantly reducing downtime between sample transfers.
The integrated cryogenic heat exchanger provides efficient cooling to approximately 80 K, while the vacuum-insulated LN2 dewar minimises thermal losses.
The compact DN40CF interface allows integration into compatible UHV systems and sample transfer configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connection Port | DN40CF, gate valve included |
| Mounting Flange | DN40CF (2.75") |
| Pump-Down Time | Approx. 30 minutes |
| Final Pressure | Approx. 1 × 10⁻⁸ mbar |
| Cooling Temperature | Down to approx. 80 K |
| LN2 Dewar Capacity | Approx. 0.5 L |
| Dewar Design | Vacuum-insulated |
| Heat Exchanger | Aluminium cooling blocks with OFHC copper core |
| Vacuum Pump | Turbomolecular pump required, not included |
Applications
The Fast Pump Down Dock is particularly suitable for UHV sample transfer systems requiring short pump-down cycles and minimal exposure to atmospheric conditions.
Typical applications include surface science, synchrotron research, thin-film characterisation and vacuum-based sample preparation.
Scope of Delivery
The docking assembly includes the DN40CF gate valve, integrated LN2 dewar and cryogenic heat exchanger. A thermal insulation sleeve and dewar lid are also included.
A turbomolecular pump is not included.
