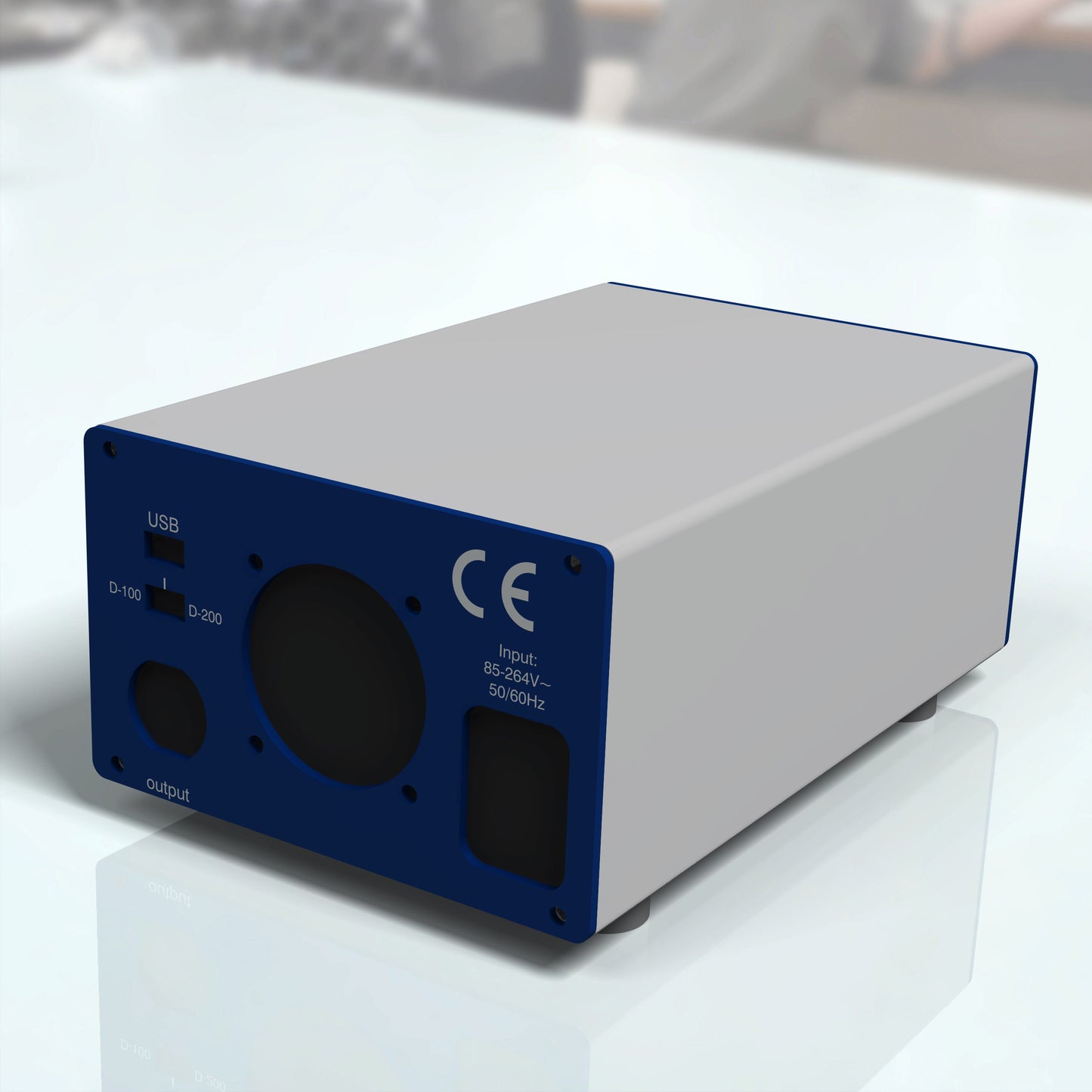

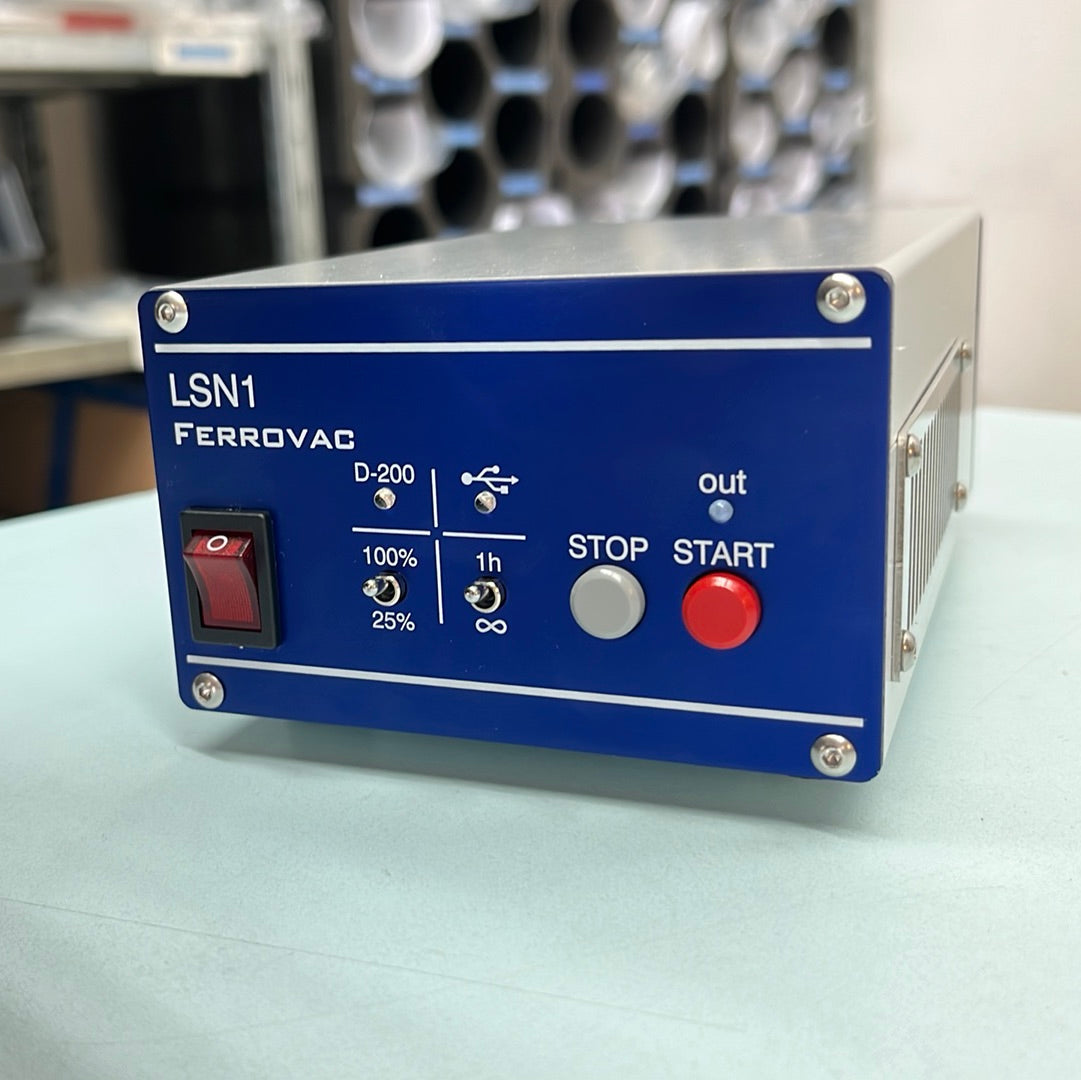

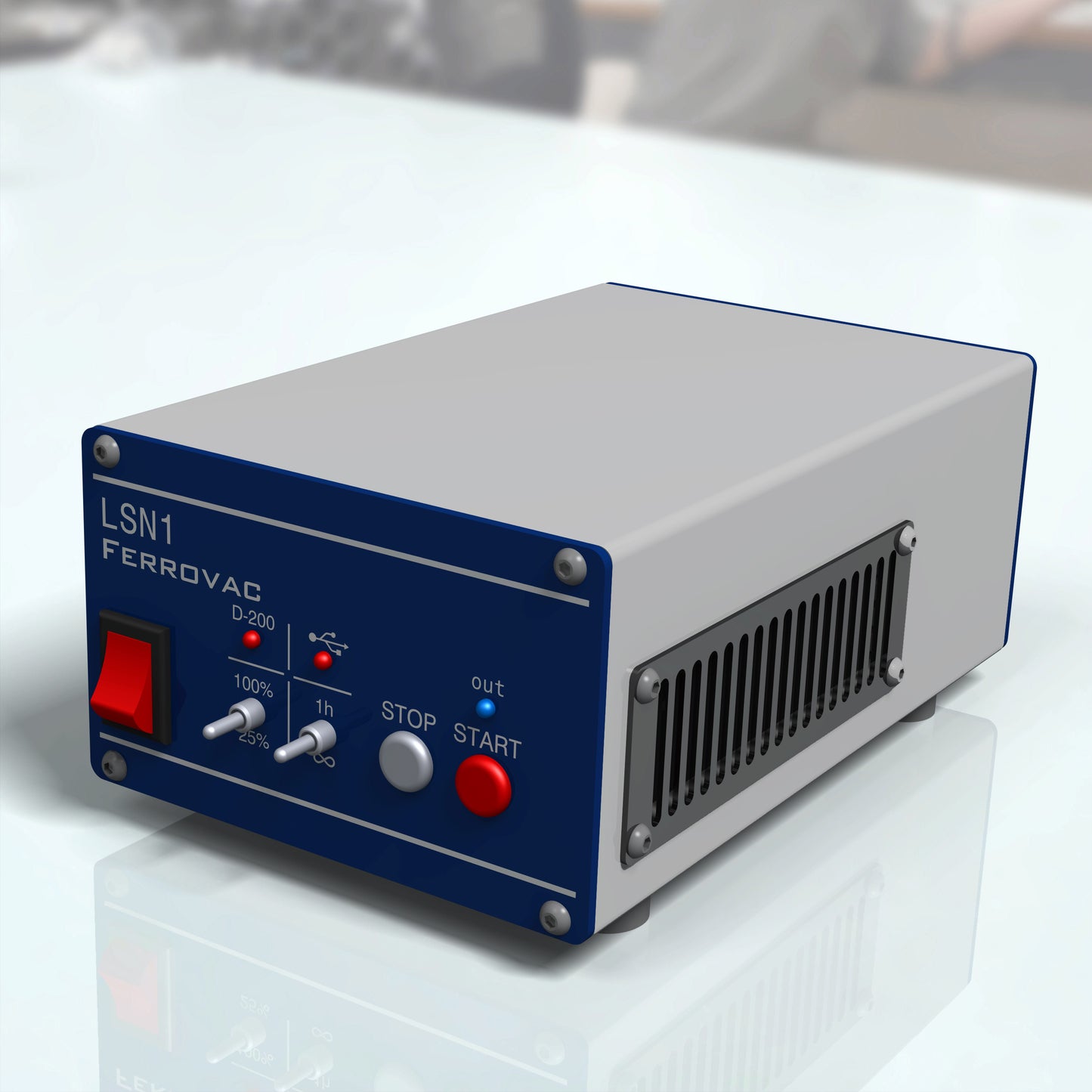

Power Controller V1.0 for NEG activation for NEXTorr® D100-5 / D200-5

Power Controller V1.0 for NEG activation for NEXTorr® D100-5 / D200-5

CHF 4,250.00
CHF 4,250.00
Sale Sold out
Shipping calculated at checkout.
SKU: LSN1.0
GTIN: 7640409550589
2 piece(s) in our central warehouse. 🚀
Available on back order or custom made.

The LSN power controller provides predefined, timed activation and reactivation cycles for Non Evaporable Getter pumps NexTorr™ D-100-5 and D-200-5 pumps.

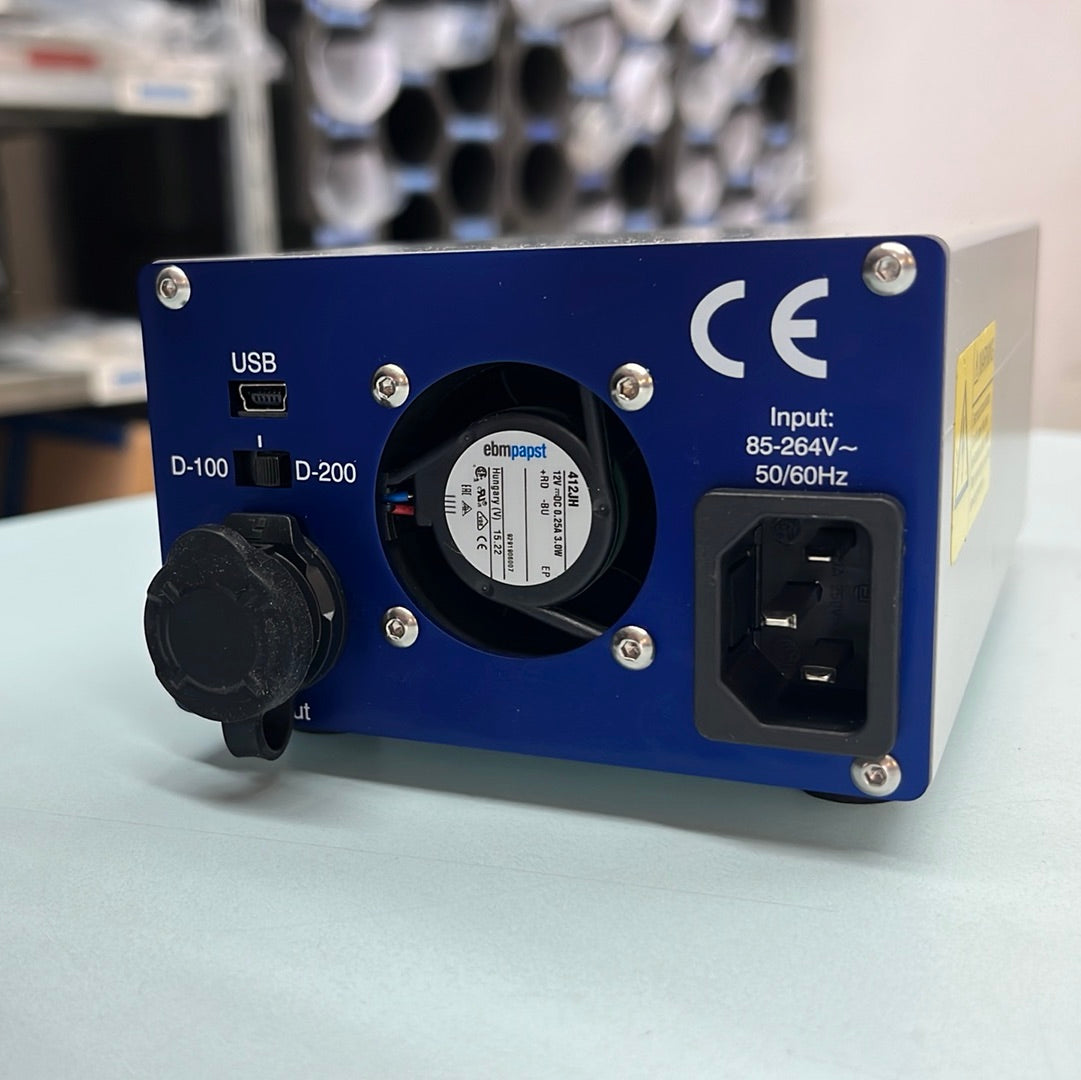

A USB serial port is provided for remote control.

    • Input voltage: 90-260 VAC, 50-60 Hz
    • Power output: continuous or 1h-mode
      • For NexTorr™ D-100-5:
        • Voltage: +9 VDC (±5 %)
        • Current: 5 A max
        • Power: 45 W max
      • For NexTorr™ D-200-5:
        • Voltage: +12.5 VDC (±5 %)
        • Current: 4.8 A max
        • Power: 60 W max
    • NEG activation temperature:
      • Conditioning mode 100%: ~450 °C
      • Conditioning mode 25%: ~350 °C
