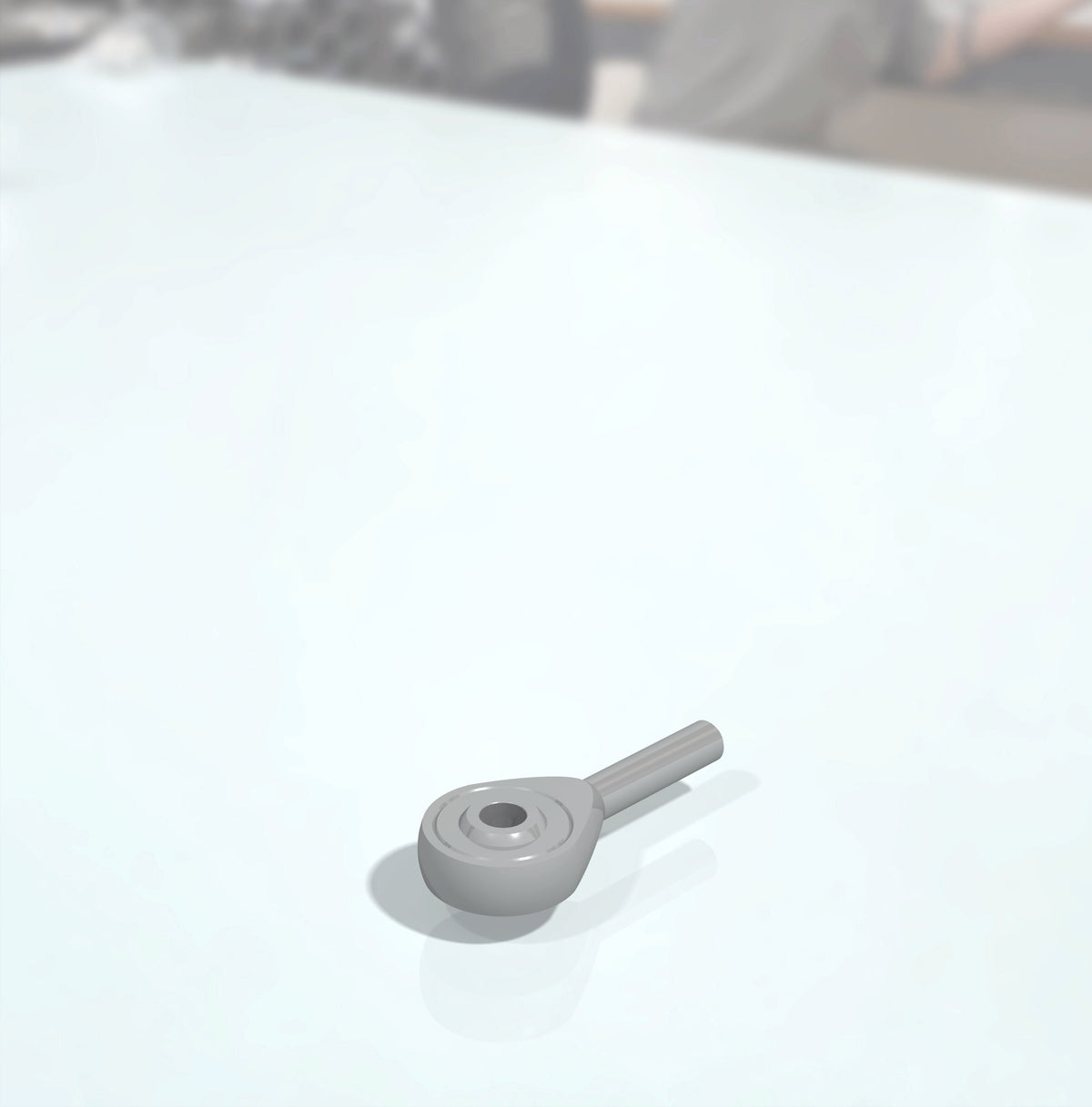

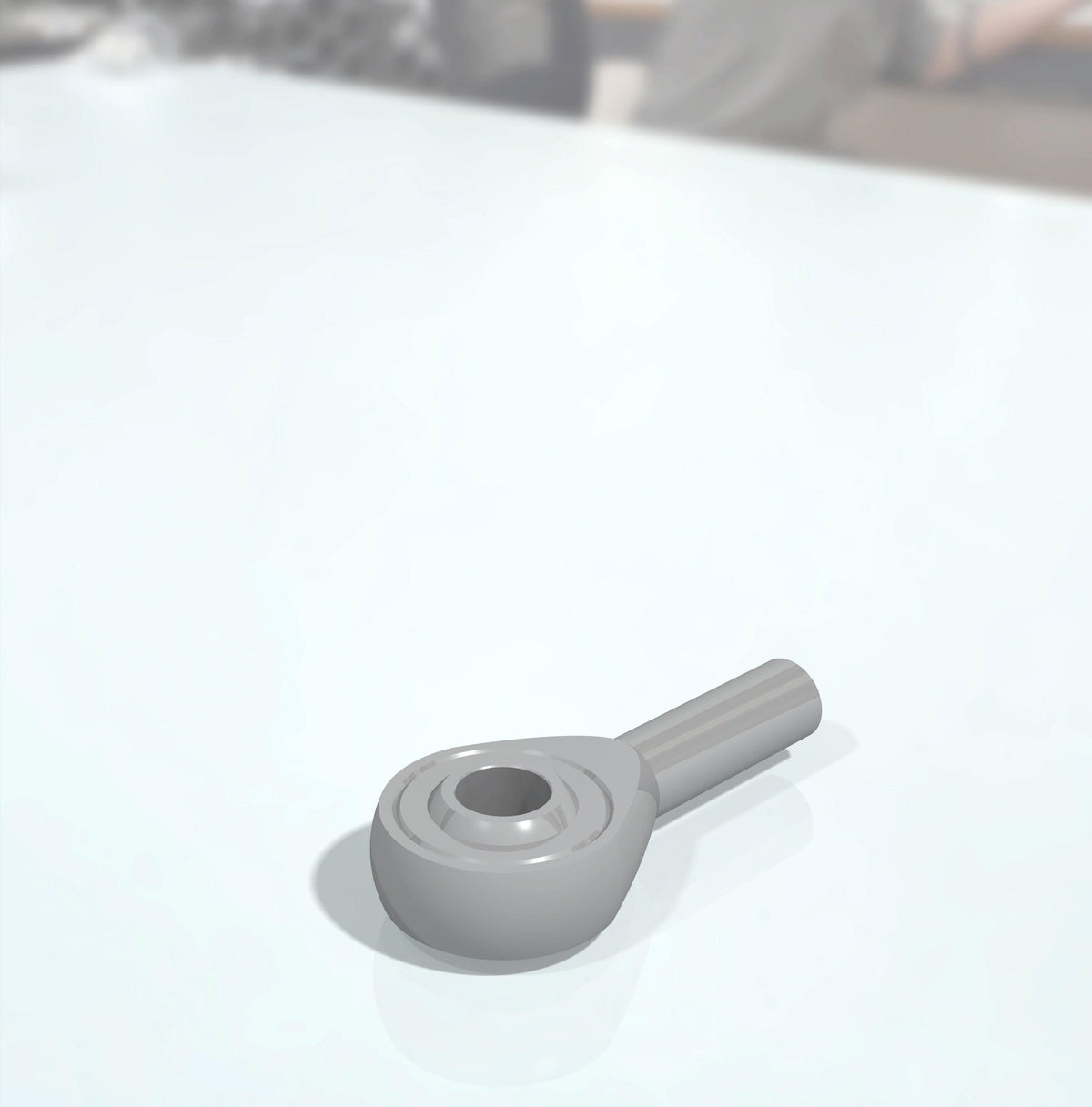

Precision-engineered stainless steel rod end bearings with self-lubricating PTFE composite sliding surfaces, designed for reliable mechanical connections, angular alignment and precision adjustment mechanisms.
Available in metric sizes M5, M6, M8, M10 and M12, with right-hand or left-hand external threads. Availability depends on the selected size and configuration. Additional sizes upon request.
The combination of a corrosion-resistant stainless steel housing, hardened spherical ball and maintenance-free sliding liner provides smooth articulation, low friction and reliable mechanical performance without additional lubrication.
Design & Functionality
The spherical bearing allows angular movement between connected mechanical components, compensating for alignment deviations and reducing unwanted mechanical stress within the assembly.
The hardened stainless steel ball is precision-ground and polished to provide a smooth, wear-resistant bearing surface. The bonded PTFE composite liner enables low-friction movement without periodic lubrication.
The compact three-piece construction is suitable for adjustable linkages, positioning mechanisms, mechanical actuators and precision engineering applications.
Configurations & Compatibility
Five metric sizes are covered: M5, M6, M8, M10 and M12. Each size is designed for right-hand or left-hand external threads.
Combining right-hand and left-hand threaded rod ends allows precise length adjustment in mechanical linkages and turnbuckle mechanisms without disconnecting the assembly.
The suffix L identifies left-hand threads, while the standard designation indicates right-hand threads.
Materials & Construction
| Component | Material / Specification |
|---|---|
| Housing | Stainless Steel AISI 304 (1.4301) |
| Spherical Ball | Hardened Stainless Steel AISI 440 Series |
| Ball Hardness | HRC 56 Minimum |
| Ball Surface | Precision-Ground and Polished |
| Bearing Race | Stainless Steel |
| Sliding Liner | Bonded PTFE Composite |
| Sliding Contact | Stainless Steel / PTFE Composite |
| Construction | Three-Piece Spherical Rod End Bearing |
| Lubrication | Self-Lubricating |
| Maintenance | Maintenance-Free |
| External Thread | Metric Male Thread, Right-Hand or Left-Hand |
Technical Specifications – Dimensions

All dimensions are in millimetres (mm).
| Dimension | M5 | M6 | M8 | M10 | M12 |
|---|---|---|---|---|---|
| Bore Diameter d (H7) | 5 | 6 | 8 | 10 | 12 |
| Bearing Width B | 8 | 9 | 12 | 14 | 16 |
| Housing Width C1 | 6 | 6.75 | 9 | 10.5 | 12 |
| Diameter d1 | 7.7 | 8.9 | 10.3 | 12.9 | 15.4 |
| Head Diameter d2 | 18 | 20 | 24 | 28 | 32 |
| External Thread d3 (6g) | M5 | M6 | M8 | M10 | M12 |
| Centre Height h | 33 | 36 | 42 | 48 | 54 |
| Thread Length L1 | 19 | 21 | 25 | 28 | 32 |
| Overall Length L2 | 42 | 46 | 54 | 62 | 70 |
| Ball Diameter | 11.11 | 12.70 | 15.87 | 19.05 | 22.22 |
Technical Specifications – Mechanical Performance
| Parameter | M5 | M6 | M8 | M10 | M12 |
|---|---|---|---|---|---|
| Misalignment Angle (°) | 13 | 13 | 14 | 13 | 13 |
| Dynamic Load Rating (kN) | 3.25 | 4.25 | 7.10 | 9.80 | 13.20 |
| Static Load Rating (kN) | 4.30 | 6.00 | 11.00 | 17.40 | 23.50 |
| Approximate Weight (g) | 13 | 20 | 38 | 55 | 85 |
Dynamic and static load ratings represent reference values under defined bearing conditions. Actual permissible operating loads depend on the application, loading direction, operating conditions and appropriate safety factors.
Product Identification
| Size | Right-Hand Thread | Left-Hand Thread |
|---|---|---|
| M5 | RE(SS)-M5 | RE(SS)-M5L |
| M6 | RE(SS)-M6 | RE(SS)-M6L |
| M8 | RE(SS)-M8 | RE(SS)-M8L |
| M10 | RE(SS)-M10 | RE(SS)-M10L |
| M12 | RE(SS)-M12 | RE(SS)-M12L |
Quality Grades
Standard Grade
Stainless steel construction with a bonded PTFE composite sliding liner for reliable maintenance-free operation.
B-Grade
Earlier production batch featuring a PTFE-metallic fabric liner. These bearings are offered at a reduced price while stocks last.
The mechanical performance of B-Grade bearings may differ from the standard specifications listed above.
Applications
Stainless steel rod end bearings are suitable for precision positioning systems, adjustable mechanical linkages, alignment mechanisms, mechanical actuators and general engineering applications.
The combination of corrosion-resistant materials and maintenance-free sliding surfaces makes them particularly suitable for applications where conventional lubrication is undesirable or difficult to maintain.
Technical Notes
Dimensional Standard: The bearing design follows established dimensional conventions for spherical plain bearing rod ends, including ISO 12240-4.
Thread Configuration: Metric external threads are available in right-hand and left-hand versions. The external thread tolerance class is 6g.
Lubrication: The PTFE composite sliding liner provides self-lubricating operation. Additional lubrication is not required under normal operating conditions.
Temperature Limits: Permissible operating temperatures depend on the PTFE liner material, applied loads and environmental conditions. No specific temperature range is guaranteed without further qualification.
Vacuum Compatibility: These bearings have not been tested or qualified for ultra-high vacuum (UHV) applications. UHV compatibility is therefore not guaranteed.
Dimensional and Performance Data: All dimensions and load ratings are nominal reference specifications. Weights are approximate. Technical specifications are subject to change without prior notice.
