Ferrovac AG

XR Custom Sample Holders & Receivers

XR Custom Sample Holders & Receivers

Regular price CHF 1,600.00
Regular price Sale price CHF 1,600.00
Sale Sold out
Shipping calculated at checkout.
Type
SKU: RECOMHTR1001S A
Weight: 0.1 kg
🕒 Status: To be procured
Lead time approx. 21 days
Quantity

The Ferrovac XR Custom Sample Holders, Receivers & Components range includes specialized solutions for sample mounting, positioning, electrical contacting and heating applications in ultra-high vacuum (UHV) systems.

These components have been developed for specific experimental requirements where standard sample holders and receivers do not provide the necessary functionality, geometry or material properties.

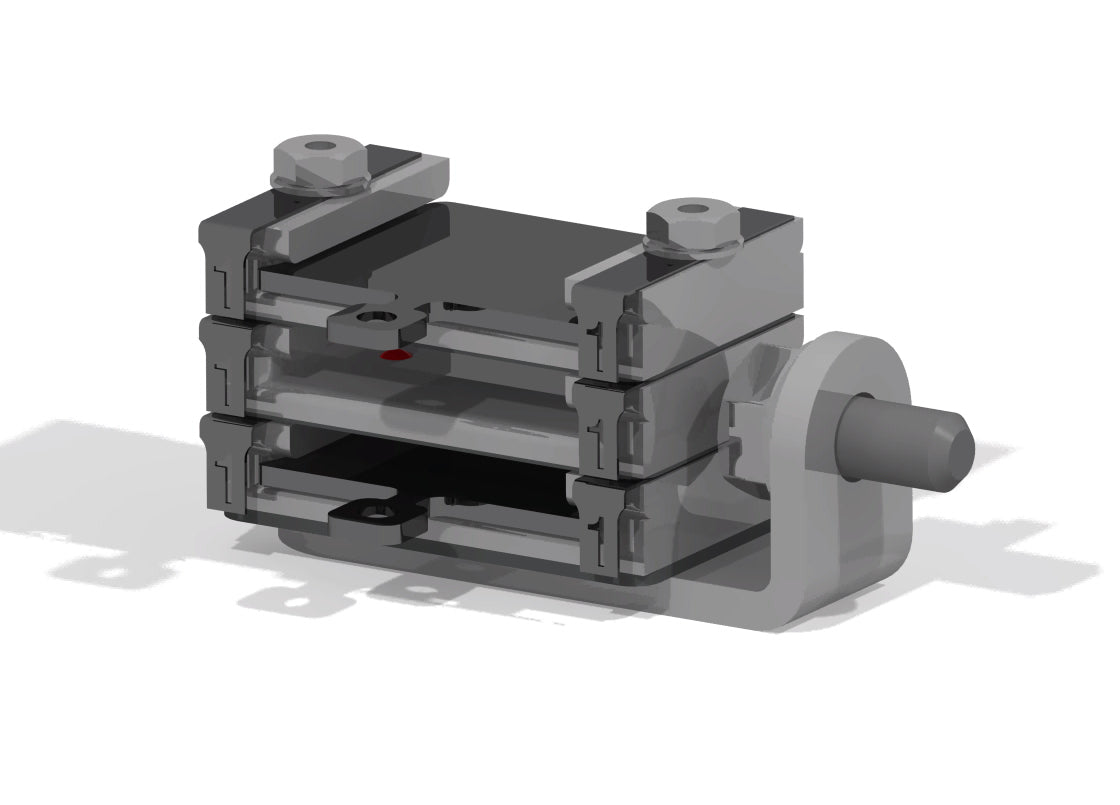

Custom Sample Receivers

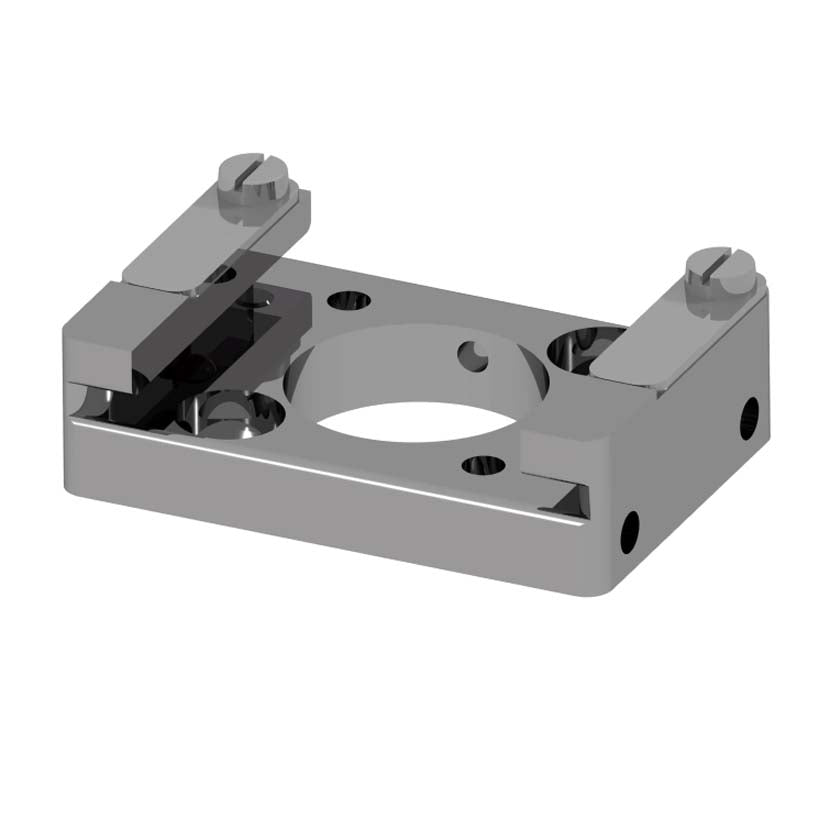

The range includes specialized SHOM receivers for integration with resistive and electron-beam heating stages, as well as custom Flag Style receivers with rear access windows.

Selected receiver designs are available in molybdenum or stainless steel 1.4435, depending on the intended application.

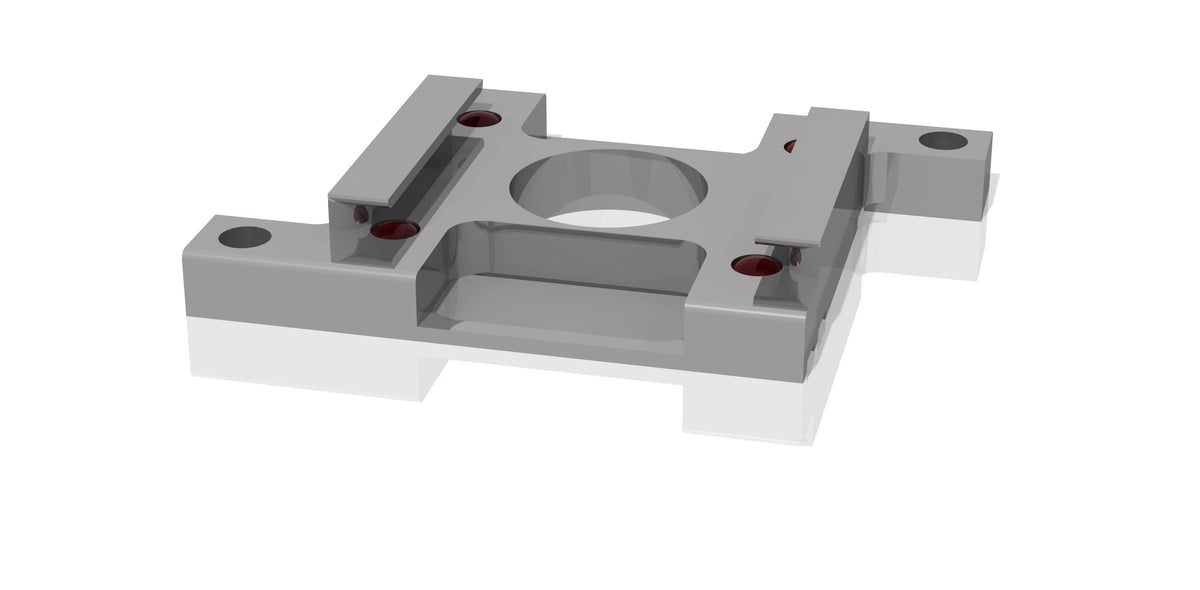

A dedicated SHOM receiver is available for direct mounting onto HTR1001 Boralectric™ or PBN/PG resistive heaters. This particular receiver cannot be operated using a GRABSHOM manipulator.

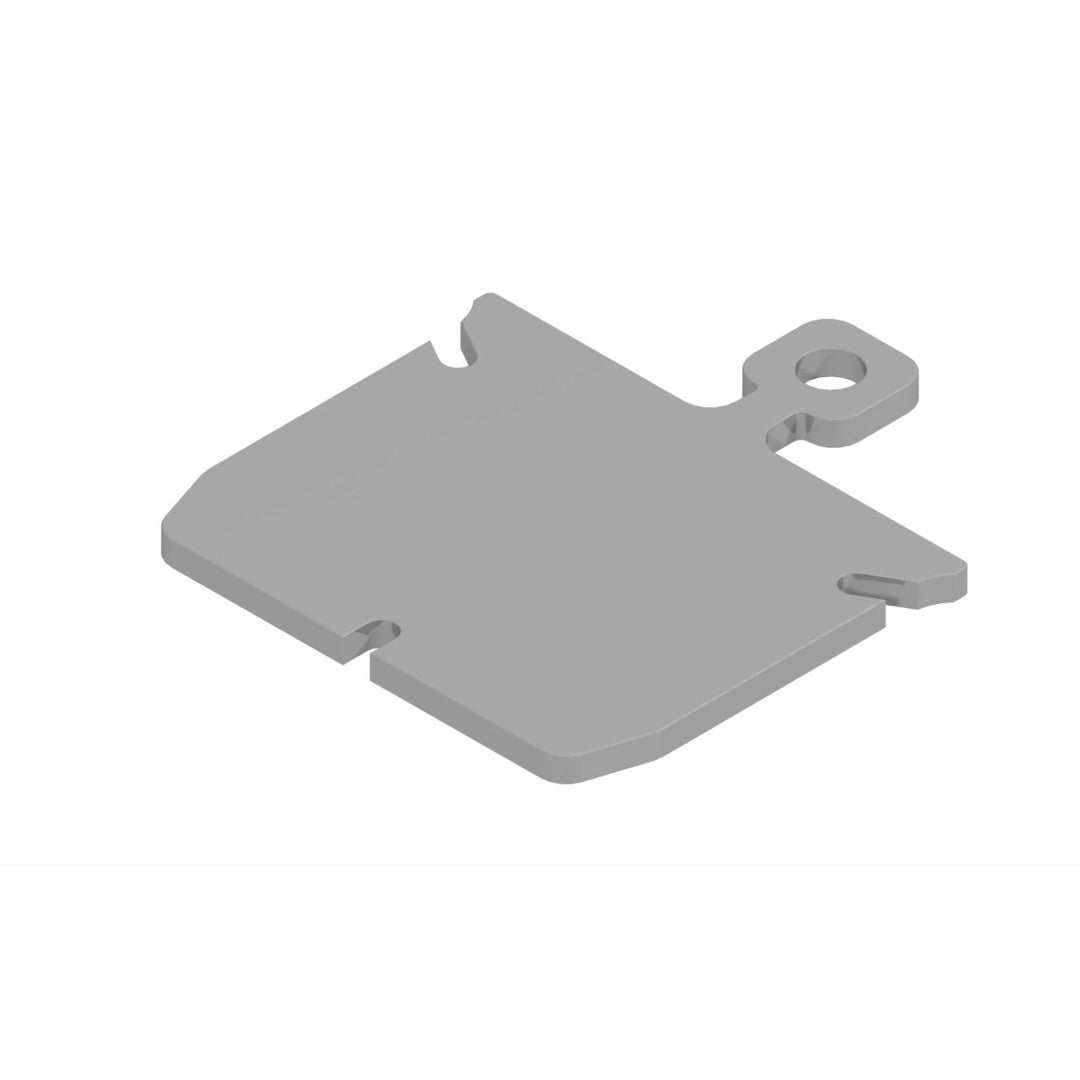

Custom Sample Holders & Plates

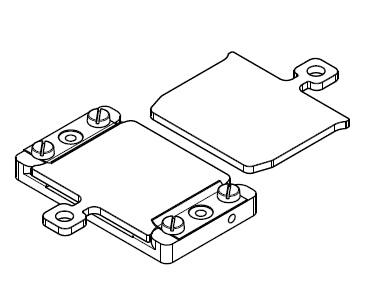

Application-specific sample holders include molybdenum Flag Style Sample Plates with slits and precision sheet-metal holders for hat-shaped single crystals.

These designs provide mechanical mounting solutions for specialized sample geometries and experimental setups.

Electrical Insulators & Contact Components

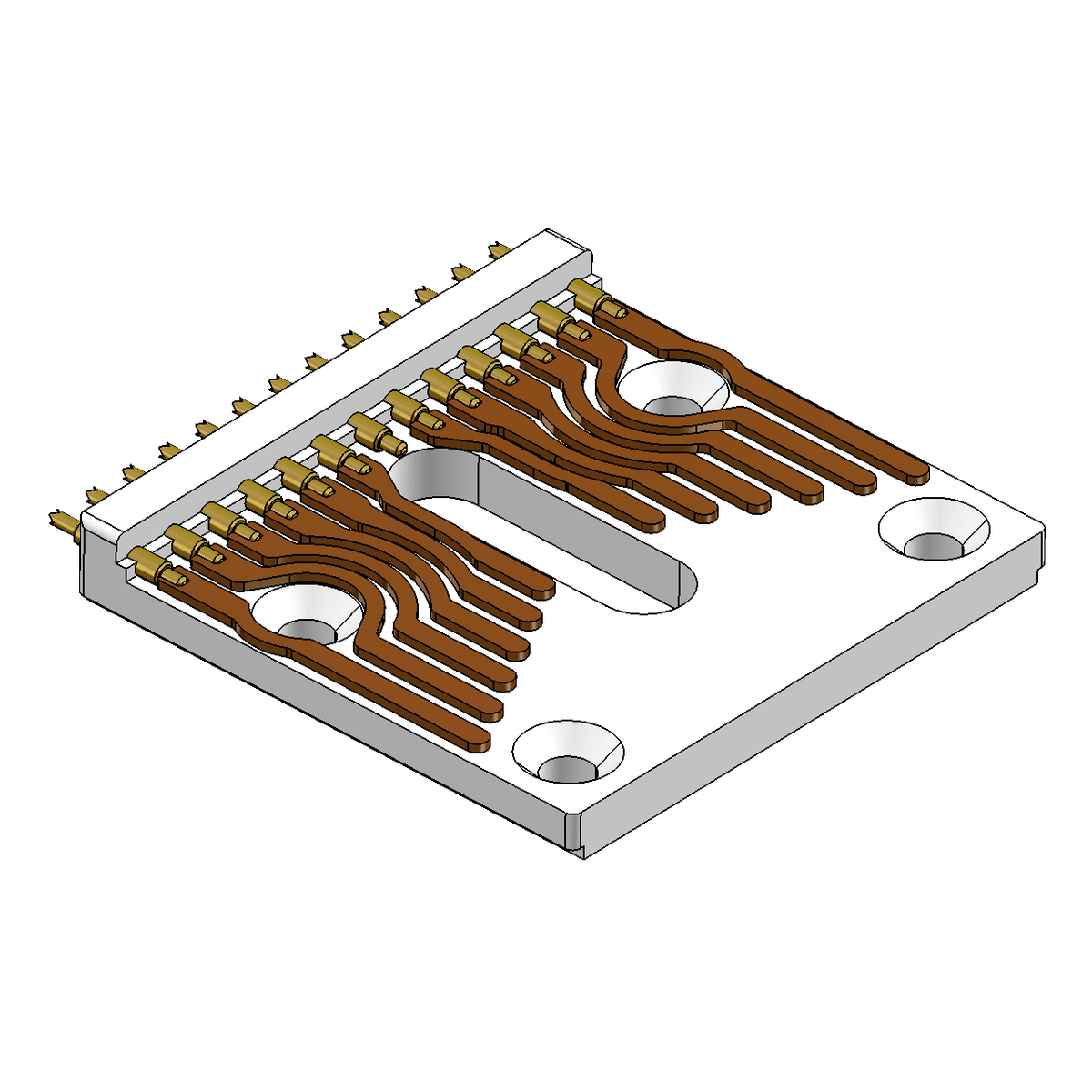

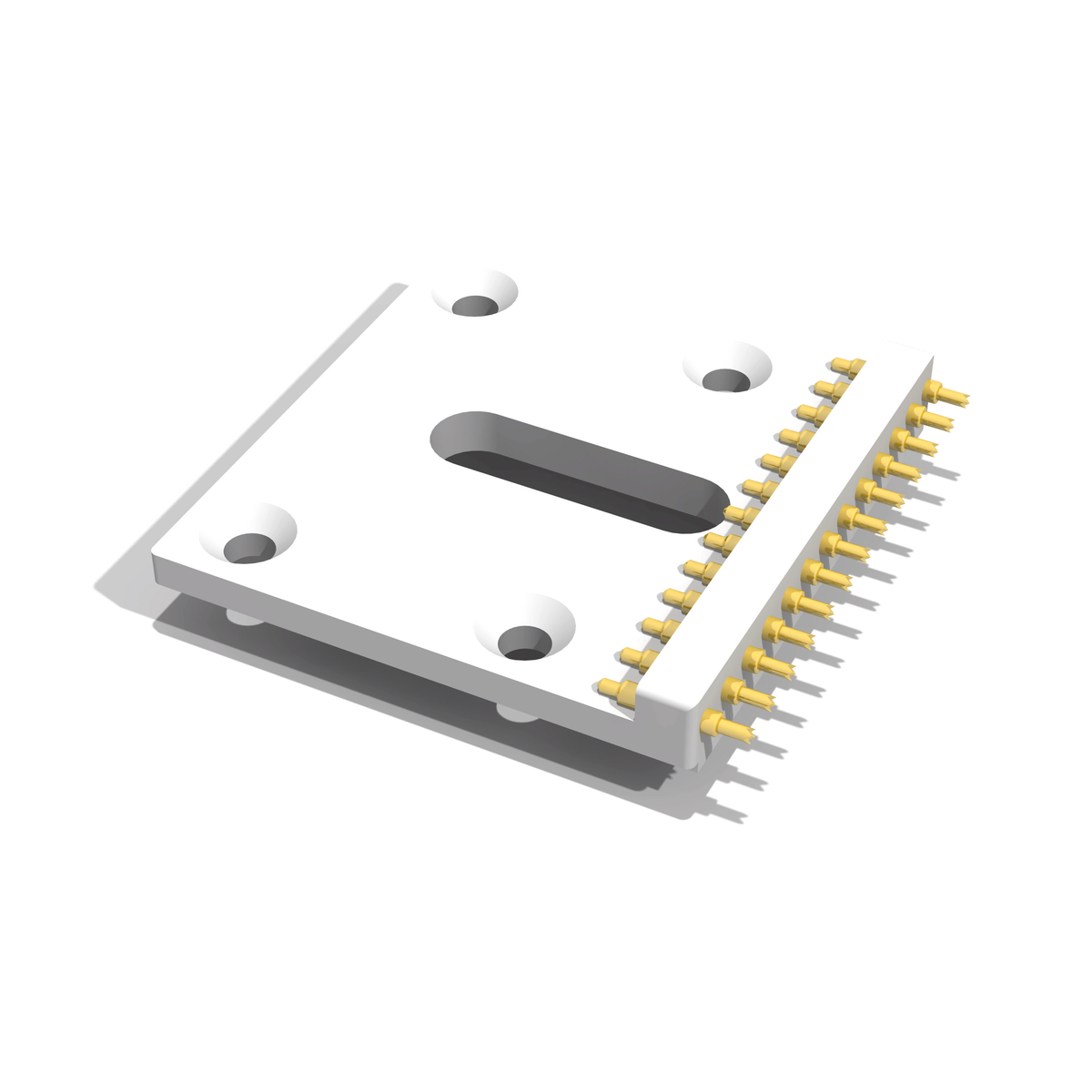

Shapal ceramic insulators are available for SHOMEC13 sample holder assemblies with 13 electrical contact pins, including configurations with additional bonding pads.

These components provide electrical insulation and mechanical support for sample holder assemblies requiring multiple electrical connections.

Custom Configurations

The Ferrovac XR product range represents specialized and customer-specific developments. Individual designs may be adapted to different sample geometries, material requirements, mounting arrangements and experimental conditions.

Please refer to the selected variant and its corresponding product code for the exact configuration.

For modifications, technical drawings or new custom sample holder and receiver designs, please contact us with your application requirements.
