XR Wobble Stick for Precision Manipulation in Ultra-High Vacuum (UHV)

XR Wobble Stick for Precision Manipulation in Ultra-High Vacuum (UHV)

Regular price CHF 3,350.00
Regular price Sale price CHF 3,350.00
Sale Sold out
Shipping calculated at checkout.
Shaft Configuration
Support Structure
Linear Travel – Retracted Length
SKU: WM40-0100-0060 C
Weight: 1.791 kg
🕒 Status: To be procured
Lead time to be confirmed
Quantity

The XR Wobble Stick is a configurable, magnetically driven manipulator designed for precision sample handling and mechanical manipulation in Ultra-High Vacuum (UHV) systems.

The XR series extends the capabilities of conventional Wobble Sticks with specialized High Torque, Wide Angle and Fine Control configurations. Adjustable linear travel, retracted lengths and multiple support structures allow the manipulator to be adapted to specific vacuum chamber geometries and experimental requirements.

Manufactured in Switzerland by Ferrovac and supplied by UHV Store, these manipulators combine smooth linear movement, continuous shaft rotation and controlled angular deflection for demanding UHV applications.

Magnetic Drive Technology

The magnetic drive transfers motion through magnetic coupling, minimizing the influence of atmospheric pressure on shaft movement. This provides smooth, controlled and nearly force-free linear manipulation without relying on long bellows assemblies for linear travel.

Continuous 360° shaft rotation and controlled angular deflection enable precise sample positioning, operation of gripping tools and mechanical adjustments inside the vacuum chamber.

XR Wobble Stick Configurations

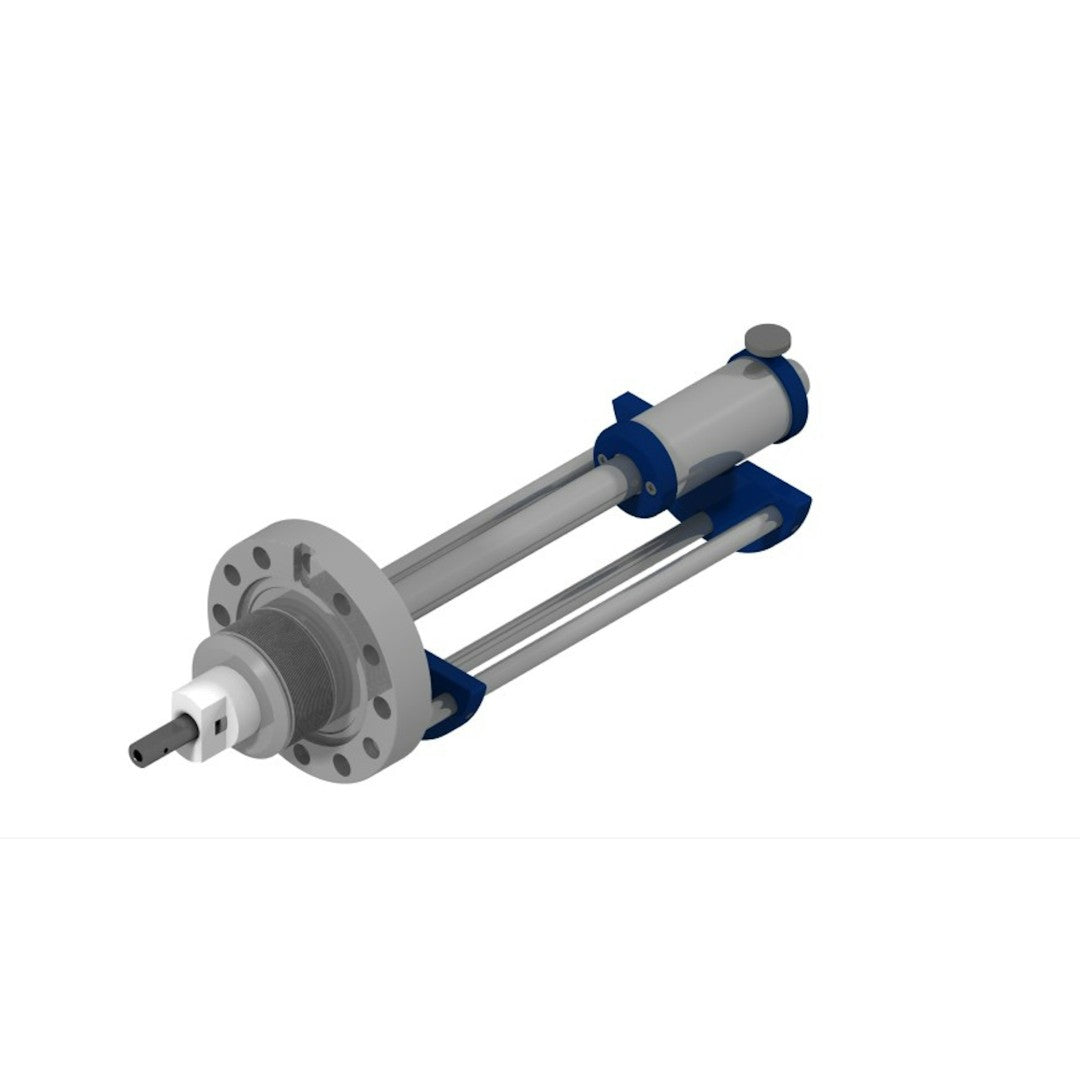

Single Shaft

Provides linear movement, continuous rotation and angular deflection for sample handling, positioning and operation of compatible manipulation tools.

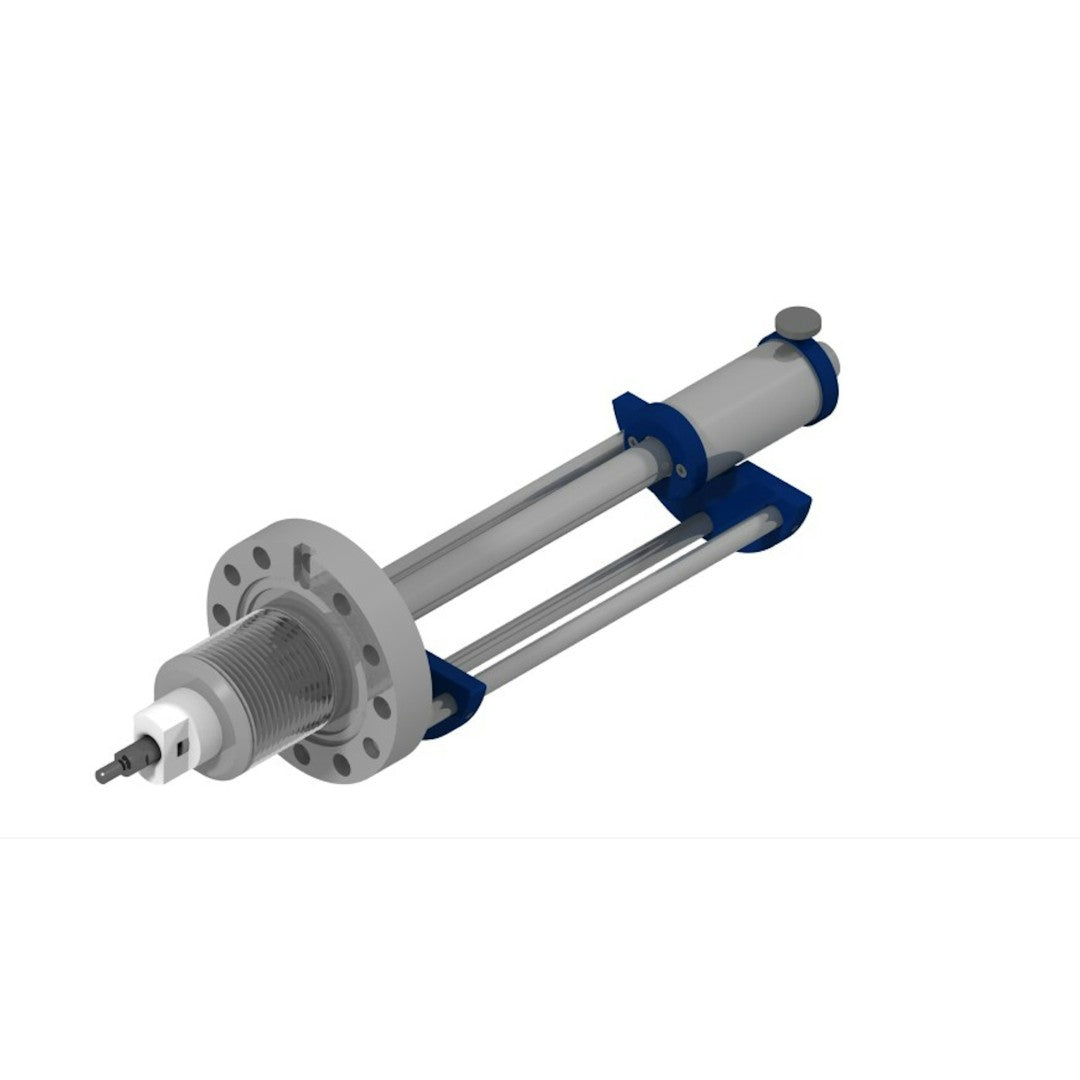

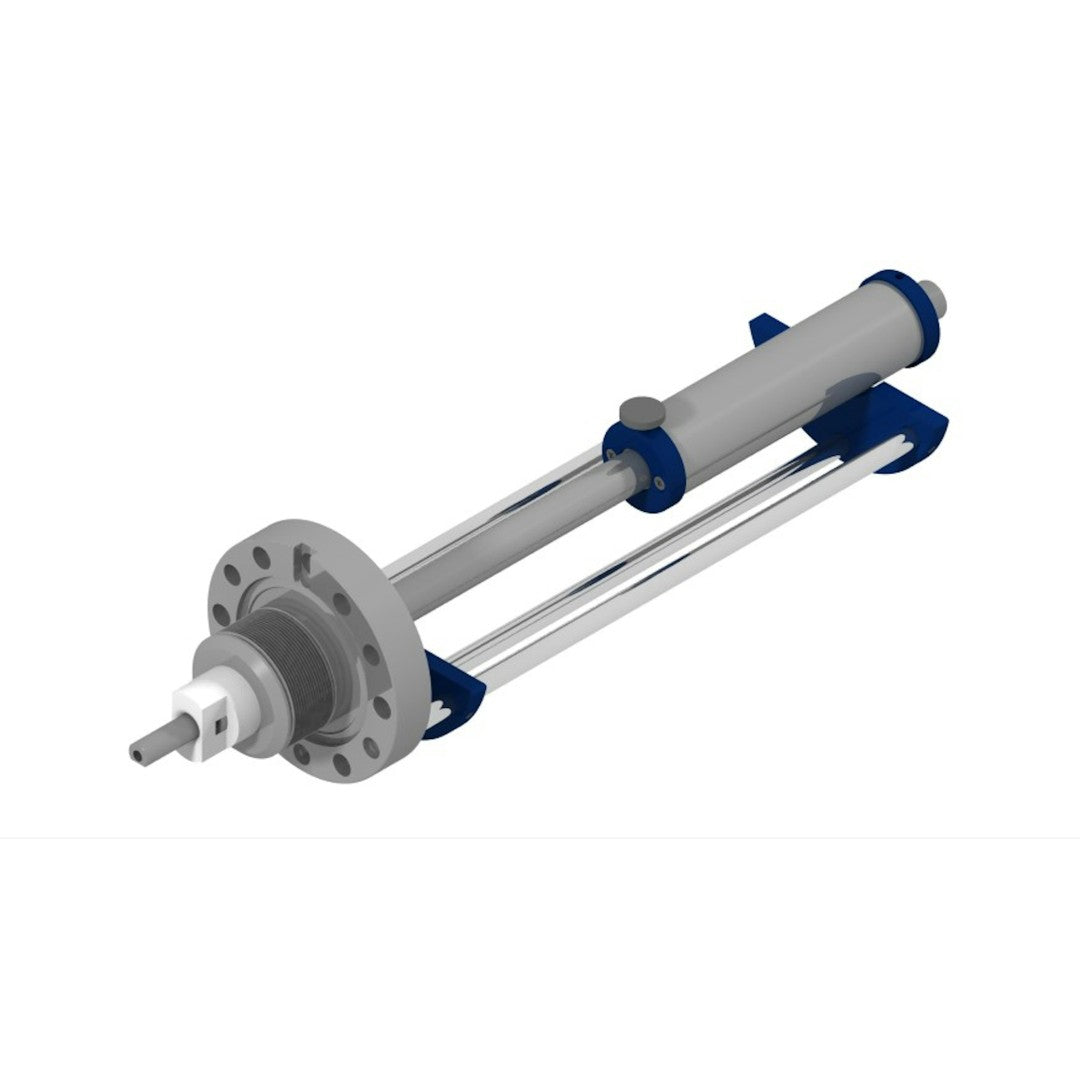

Single Shaft – High Torque (HT)

Designed for applications requiring increased manipulation force. The High Torque configuration provides up to 60 N linear force and 1.0 Nm rotational torque, twice the values of the standard Single Shaft version.

Single Shaft – Wide Angle

Provides an increased angular deflection of ±28°, compared with ±20° for the standard configuration. This allows greater lateral reach inside the vacuum chamber.

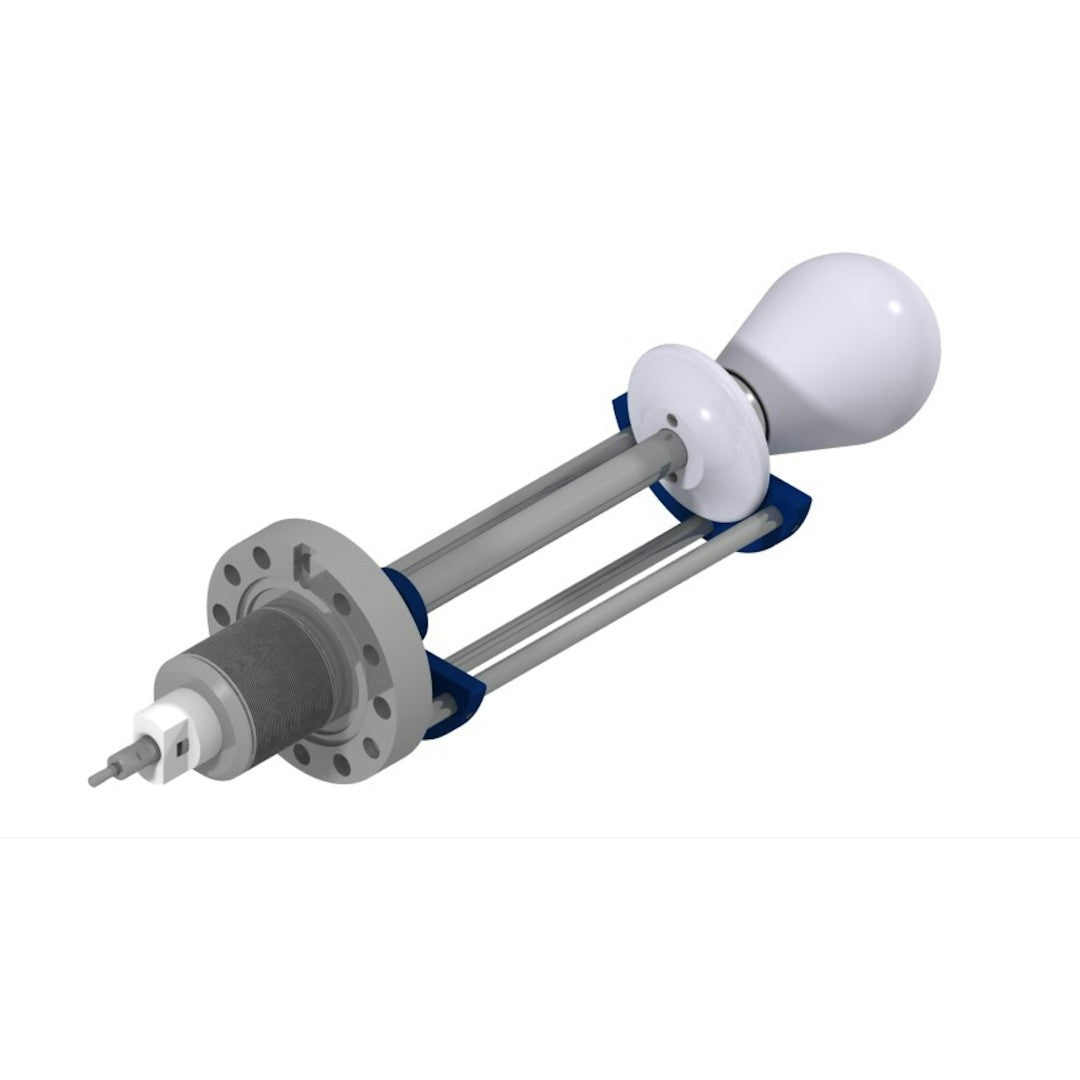

Dual Shaft

Features two concentric shafts with controlled relative axial displacement for opening and closing compatible pincer grips during sample handling and transfer.

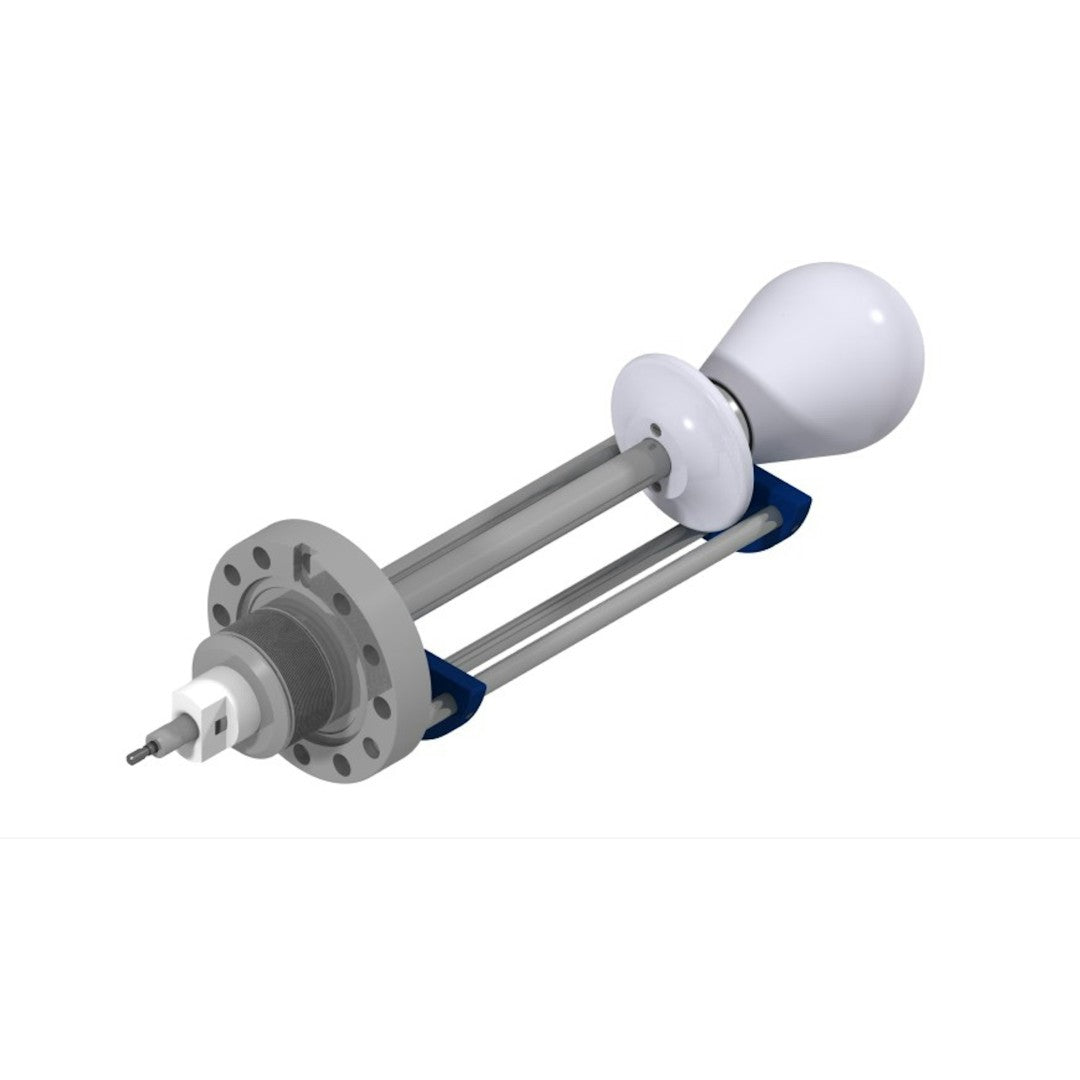

Dual Shaft – Wide Angle

Combines Dual Shaft gripping functionality with an increased angular deflection of ±28° for applications requiring additional lateral reach.

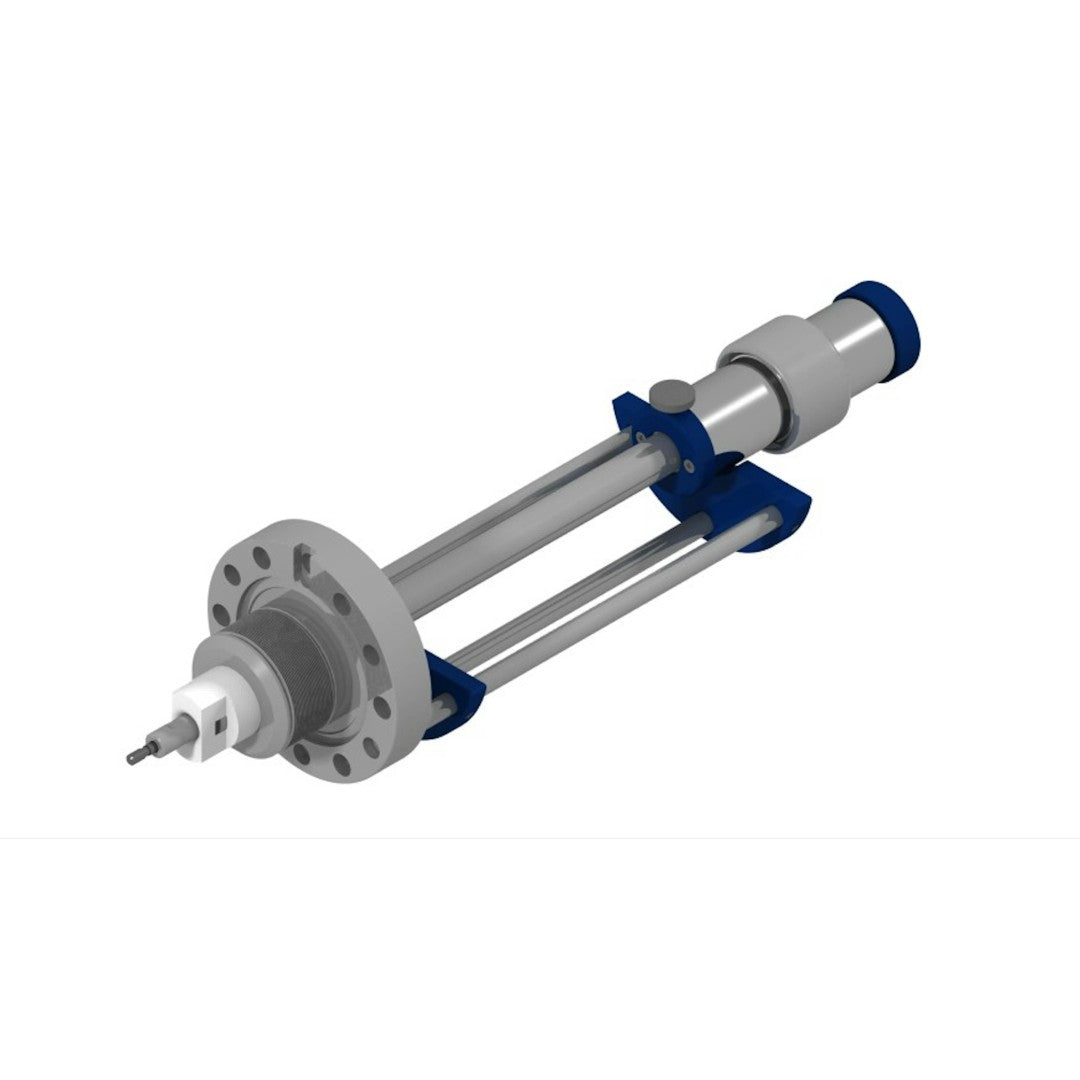

Dual Shaft – Fine Control (FC)

Uses a precision rotary adjustment mechanism to control the relative displacement of the shafts, allowing fine adjustment of compatible pincer gripping mechanisms.

Technical Specifications

Parameter Specification
Mounting Flange DN40CF (2.75" OD)
Angular Deflection – Standard ±20°
Angular Deflection – Wide Angle ±28°
Linear Force – Standard 30 N
Linear Force – High Torque 60 N
Torque – Single Shaft 0.5 Nm
Torque – High Torque 1.0 Nm
Torque – Dual Shaft 0.4 Nm
Linear Travel Configuration-dependent
Retracted Length Configuration-dependent
Maximum Bakeout Temperature 200 °C
Operating Pressure Range 1 × 10⁻¹¹ to 1000 mbar
Materials UHV-compatible
Parking & Protection Rail Configuration-dependent
Country of Origin Switzerland

The available angular deflection depends on the mounting geometry and sufficient clearance around the manipulator.

Custom Travel Lengths & Support Structures

XR Wobble Sticks can be configured with different linear travel and retracted lengths to meet specific installation requirements.

A selection of airside parking and protection structures is available, including Outline, Inline, Enclosed and Vertical designs. Configurations without a support structure are also possible.

The suitable combination depends on the available installation space, required sample reach and intended manipulation task.

Applications in Ultra-High Vacuum

XR Wobble Stick manipulators are suitable for demanding applications in surface science, scanning probe microscopy (SPM), sample preparation, thin-film research and experimental UHV systems.

Their configurable design is particularly valuable for vacuum chambers requiring extended reach, higher manipulation forces, precise pincer control or specialized mounting arrangements.

Looking for a Standard Wobble Stick?

For commonly used configurations, explore our Standard Wobble Stick, available with Single Shaft or Dual Shaft mechanisms and an Outline Parking & Protection Rail.

These standard configurations are generally kept in stock for fast worldwide delivery.

The XR Wobble Stick range focuses on special and customer-specific configurations, typically supplied with individual lead times. Selected configurations may also be available from stock.

For assistance with selecting or customizing a Wobble Stick for your UHV system, please contact UHV Store of Switzerland.
